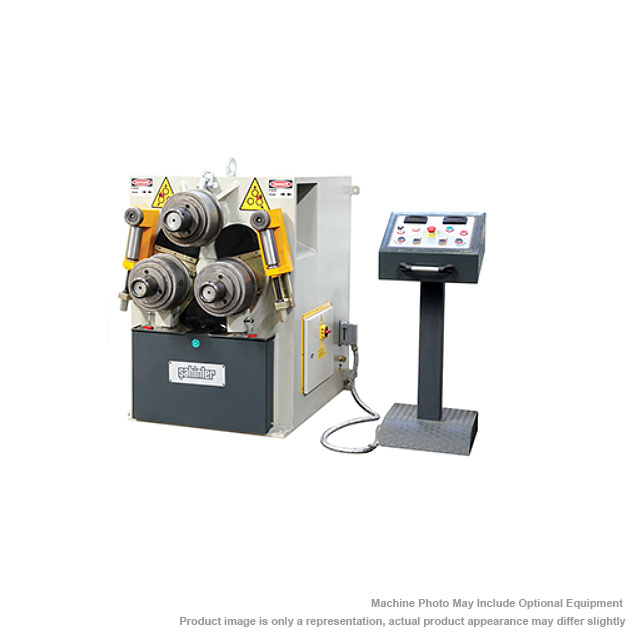

COLE-TUVE HPK 80 3 x 3 x 3/8 in. Hydraulic Double Pinch Angle and Shape Bending Roll w/Optional Hydraulic Guide Rolls

Description 3″ Pipe Capacity Three rolls are powered Rolls are hardened Rolls shafts are special steel, hardened and ground Standard rolls handle many shapes 3-Axis manual leg-in guide rolls 2 – Electronic digital readouts (LED) Mobile control console with push button controls and digital readouts Horizontal and vertical working positions SPECIFICATIONS: Angle iron, leg-out 3″ x 3″ x 3/8″ø32″ Angle iron, leg-in** 2-3/4″ x 2-3/4″ x 1/4″ø28″ Flat bar, Easy Way 5″ x 1″ø24″ Flat bar, Hard Way 3-1/8″ x 3/4″ø32″ “T” iron, leg out 3-1/8″ x 3/8″ø32″ “T” iron, leg in 2-3/4″ x 5/16″ø32″ Square bar 1-3/4″ø20″ Round Bar (SP) 2″ø20″ Channel iron, leg out and leg in** 5-1/2″ø63″ Pipe 3″ Sch. 40ø32″ Round Tubing (SP) 4″ x 12 ga.ø48″ Square Tubing** 2-3/4″ x 1/8″ø52″ Rectangular Tubing** 3-1/8″ x 1″ x 1/8″ ø32″ Shaft Diameter 3.15″/2.76″ Dia. of Rolls, Upper/Lower 9.65 in. Driven Rolls 3 Rolling Speed, FPM 19-1/2 Rolls Adjustment Hydraulic Working Plane Horizontal/Vertical Motor HP 5-1/4 Approx. Weight – lbs. 3,740 Approx Overall Size 57 x 40 x 56 in. The shapes marked (SP) require optional special rolls. The other shapes can normally be rolled with the stardard rolls supplied with the machine. For production runs of some of those shapes, optional special rolls may be desirable. Rolling angle leg-in requires optional leg-in guide rolls and may require special rolls. Specifications are subject to change without notice. NOTE: Data is provided by the manufacturer. WARRANTY: 1 YEAR – Parts OPTIONAL ITEMS: CALL FOR PRICE Pipe/Tube/Shape Bending Rolls Hydraulic 2- Axis Leg-In Guide Rolls NC Control
