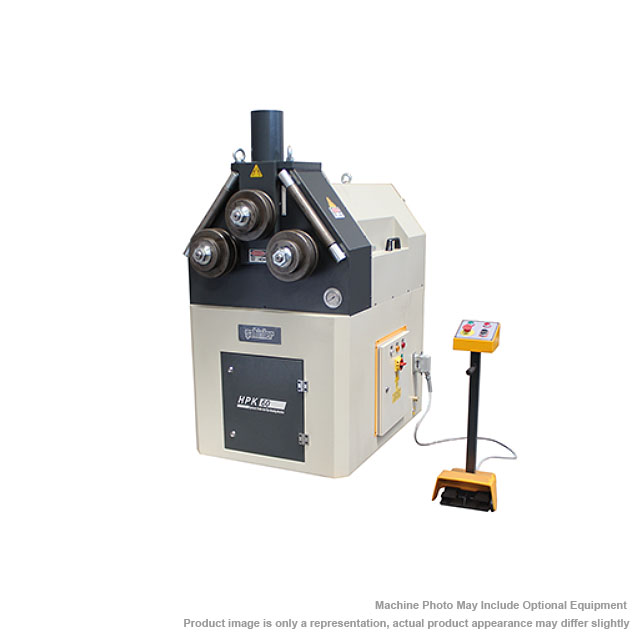

COLE-TUVE HPK-60 3 x 3 x 1/4 in. Hydraulic Pyramid Angle, Pipe and Shape Bending Roll

Description Three Rolls are Powered Rolls are Hardened Roll Shafts are Special Steel, Hardened and Ground Standard Rolls Handle Many Shapes Lateral Guide Rolls Horizontal and Vertical Working Positions Dual Foot Control SPECIFICATIONS: Angle iron, leg-out 3″ x 3″ x 1/4″ø40″ Angle iron, leg-in** 3″ x 3″ x 1/4″ø48″ Flat bar, Easy Way 4-3/4″ x 1″ø24″ Flat bar, Hard Way 3-1/8″ x 5/8″ø48″ “T” iron, leg out 3-1/8″ x 3/8″ø40″ “T” iron, leg in 3-1/8″ x 3/8″ø48″ Square bar 2″ø32″ Round Bar (SP) 2″ø32″ Channel iron, leg out 4″ø32″ Channel iron, leg in** 4″ø48″ Pipe 3″ Sch. 40ø63″ Round Tubing (SP) 4″ x 14 ga.ø63″ Square Tubing** 2-3/4″ x 2-3/4″ x 1/8″ø63″ Rectangular Tubing** 3-1/8″ x 1-1/2″ x 1/8″ ø56″ Shaft Diameter 2.36 in. Dia. of Rolls, Upper/Lower 8.46 Driven Rolls 3 Rolling Speed, FPM 13 Rolls Adjustment Hydraulic Working Plane Horizontal/Vertical Motor HP 2 1/2 Approx. Weight – lbs. 2,090 Approx Overall Size 40 x 56 x 65 in. The shapes marked (SP) require optional special rolls. The other shapes can normally be rolled with the stardard rolls supplied with the machine. For production runs of some of those shapes, optional special rolls may be desirable. Rolling angle leg-in requires optional leg-in guide rolls and may require special rolls. Specifications are subject to change without notice. NOTE: Data is provided by the manufacturer. WARRANTY: 1 YEAR – Parts OPTIONAL ITEMS: CALL FOR PRICE Electronic Digital Readout (LED) Pipe/Tube/Shape Bending Rolls Leg in Guide Rolls NC Control
