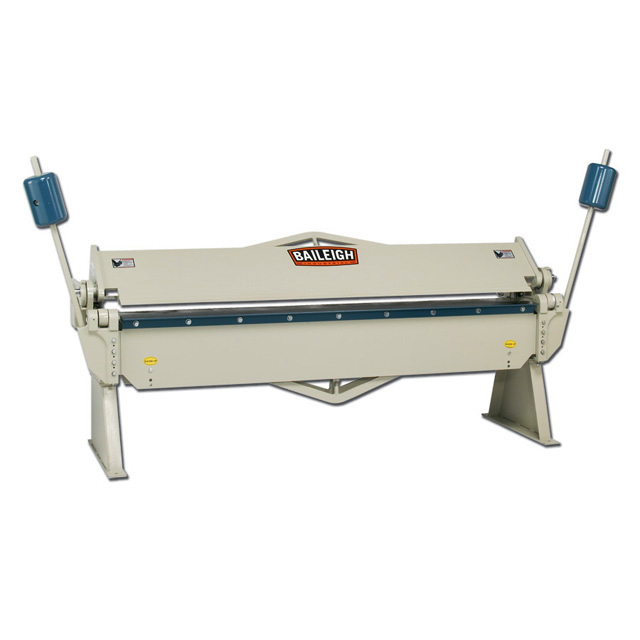

Description Designed for efficient and precise light-gauge bending, this metal brake’s heavy-duty steel frame can bend 8-foot-wide sheet metal without trouble or distortion. Manually-operated straight brake. Bends 16 gauge (or lighter) mild steel sheet metal with ease. 8 feet (96”) long. Bend angle of up to 135°. Easily-adjustable material thickness wheels let you get the tightest bend possible with lighter materials. Bending leaf includes a removable apron to reduce distance between bends, if needed. Fully-welded frame and support rods keep alignment correct during the bending process, even at maximum capacity. Comes with 2 large counterweights to save you effort and physical strain when bending. We cover this sheet metal brake with a 1-year parts warranty. Baileigh stocks almost all machine parts for fast shipments. You can count on lifetime technical support by phone. Call whenever you need help with the HB-9616. Recommended for: HVAC shops or fabrication shops that need to bend full 4 x 8 sheets of light-gauge sheet metal. SPECIFICATIONS: Capacity Length: 96″ Capacity Thickness (SS): 16 ga (20 ga) Bend Angle: 0 – 135 deg Beam Adjustment: 1″ Min Reverse Bend: .625″ Shipping Dimension (L/W/H): 123″ / 34″ / 40″ Shipping Weight: 1,650 lbs. Specifications are subject to change without notice. NOTE: Data is provided by the manufacturer. WARRANTY: 1 YEAR – Parts
