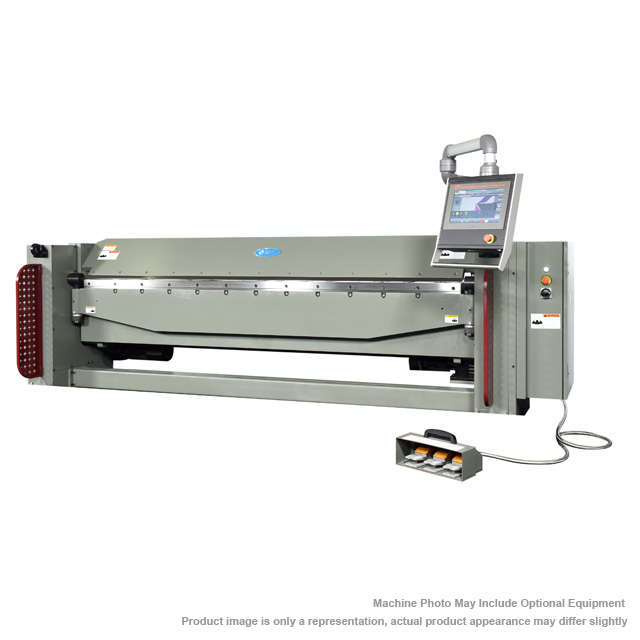

Description ISO 9001 certified Designed in US and Taiwan quality Machine Meet OSHA and CE safety standard ESA CNC control, made in Italy 16″ large Digital glass touch screen Max. 99 bends per program Up to 2000 Programs Storage Profiles library with graphics Programmable Radius Bend Programmable Angle/ Angle Correct 48″ CNC back gauge with table and fingers Hardened nose bar and table, up to 48HRC Comes with one 1″ Insert Bar and one ½” Insert Bar Yaskawa Servo motors and Drives Schneider electrical components All steel construction for maximum rigidity Safety type foot pedal with handle and E-stop switch Safety 24V low voltage & overload protection Power supply is 220V, 3 phase or 208V, 3 phase One year industrial warranty for parts SPECIFICATIONS: Capacity – Mild Steel: 14 Ga Capacity – Stainless Steel: 18 Ga Close Hemming capacity: 26 ga. Open Hemming capacity: 24 ga. Bending length capacity: 10’1″ Bend Angle Degree, programmable: 0-135 degree Large Beam Opening/clamping opening: 4-7/8″ Min. Reverse Bend: 1/2″ Max. Table Back Gauge Distance: 48-3/8″ Min. Table Back Gauge Distance: 1/2″ Back Gauge Repeatability: 0.0039″ Back Gauge Table height: 35-3/4″ Main motor: 4HP, 220V, 3-phase Servo motor for back gauge: 2 HP, 220V, 3-phase Clamping motor: 1-1/2 HP, 220V, 3-phase Amperage Draw: 35A Machine Dimensions, L x W x H: 168 x 79 x 67 in. Shipping Dimensions: 174 x 80 x 71 in. Machine Weight: 9,850 lbs. Shipping Weight: 10,150 lbs. OPTIONAL ITEMS: 1/2″ thick insert bar for ½” min. reverse bend,capacity mild steel 28-22G…$1,950.00 One day on-site training ……………………………………………………….$4,995.00 Digital Phase Converter# PTE010 for 220V,1phase to 220V, 3 phase …. $4,250.00 (must be purchased and installed by GMC or warranty will be voided) Design and Specifications are subject to change without notice. NOTE: Data is provided by the manufacturer. WARRANTY: 1 YEAR – Parts
