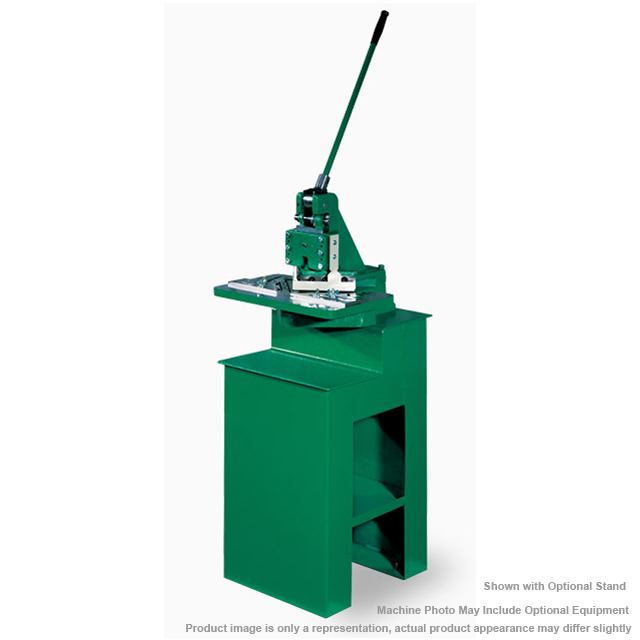

Description MADE IN USA TENNSMITH’S notcher, Model 16-18, is a versatile, heavy duty bench tool for shearing, notching, and piercing work. The heavy cast iron construction allows the notcher to be used to side shear six inches of material to its rated capacity; and the throat behind the upper ram is beveled on one side to permit long strips of material to pass without restriction. Notches of more that 90 degrees can be accomplished in two operations. The upper blades can be reversed for a “nose to heal” cutting action; and the ram stroke can be controlled by means of two set screws to permit limited throat piercing and knockout operations. SPECIFICATIONS: Maximum Capacity Notching – Mild Steel: 16 ga Maximum Capacity Piercing – Mild Steel: 18 ga Notch: 6″ x 6″ x 90° Dimensions, Handles Removed (LxWxH): 19″ x 18″ x 15″ Shipping Weight: 170 lbs. Specifications are subject to change without notice. NOTE: Data is provided by the manufacturer. WARRANTY: 3 YEAR – Limited OPTIONAL ITEMS: 86125: MODEL 16-18 Regular Blades set of 4: $650.00 86120: Floor Stand for Model 16-18 Notcher: $400.00
