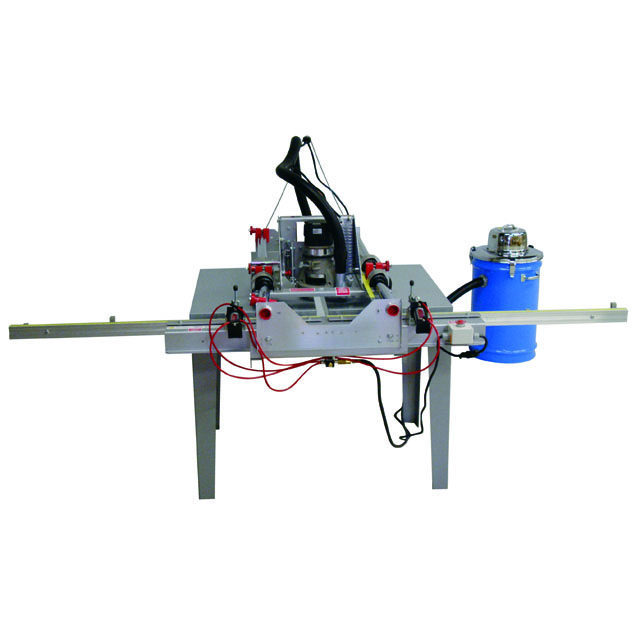

Description The TR2 panel router is a horizontal model offering accuracy and power in a space saving size ideal for cross dado jobs up to 36 inches. Equipped with a heavy duty 3-1/4 Hp motor this unit easily cuts standard dados, blind dados as well as full-length rabbets. One person operation makes this machine well suited for wood shops, schools, display manufacturers and cabinet shops. STANDARD EQUIPMENT: 3-1/4 Hp, 15 amp router motor. Horizontal steel work table. Chrome-plated 1-3/4” guide tubes. 8 Nylatron roller bearing system. Adjustable rulers. Integrated dust collection bonnet. Floating router head 2 clamps. 2 blind dado stops. Extended warranty. *Gauging System, and dust kit are now Included with machine SPECIFICATIONS: Max. Crosscut: 36″ / 910mm Max. Rip Cut: Unlimited Max. Cut Thickness: 1-3/4″ / 45mm Cut Accuracy, Straight and Square: 1/64″ / .4mm Motor: 120V, 15 amp (220V available) Frame Length: 57″ / 3050mm Dimensions (AxBxC): 45″ x 97″ x 57″ Shipping Weight: 285 lbs. / 129 kg Specifications are subject to change without notice. NOTE: Data is provided by the manufacturer. WARRANTY: 1 YEAR – Parts
