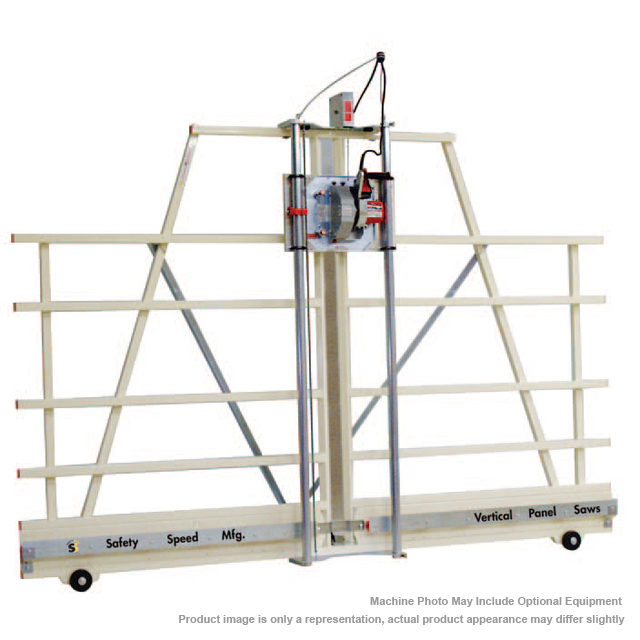

SAFETY SPEED H5 64 in. Vertical Panel Saw | 120v – Options Available
$59.82
$86.14
Description The H-Series offers full-sized vertical panel saw productivity in economical machines. The popular H-Series saws are ideally suited for customers looking for a full sized vertical panel saw at a very affordable price. These saws are available in three crosscutting heights, 50″, 64″ and 74″ while delivering an accuracy of 1/32″ straight and square. With 3-1/4 HP industrial motors, these versatile saws are used in a variety of panel cutting operations. *2″ depth of cut available upon request SPECIFY MODEL: H5 – 15 amps, 120 Volt: $3,799.00 H5 – 7.5 amps, 220 Volt: $3,995.00 STANDARD EQUIPMENT: 3-1/4 Hp, 15 amp industrial duty saw motor. Zinc plated 1-3/4”steel guide tubes. 4 Nylatron roller bearing systems. Adjustable vertical and horizontal rulers. Quick change from vertical to horizontal cutting. Thin material pressure guard. Injection-molded plastic material rollers. Spring loaded counter balance system. Integrated dust collection bonnet. Extended warranty. TUV certified to UL/CSA standards SPECIFICATIONS: Max. Crosscut: 64″ / 1625mm Max. Rip Cut: Unlimited Max. Cut Thickness: 1-3/4″ / 45mm Cut Accuracy, Straight and Square: 1/32″ / 0.8mm Saw Blade Diameter: 8″ / 200mm Motor: 120V, 15amp (220V available) Frame Length: 120″ / 3050mm Dimensions: 90″ x 120″ x 36″ Shipping Weight: 318 lbs. / 144 kg Specifications are subject to change without notice. NOTE: Data is provided by the manufacturer. WARRANTY: 1 YEAR – Parts OPTIONAL ITEMS – CALL FOR PRICE: Accessory Packages: We offer three unique accessory packages that will allow you to customize your machine to best suit your operation at a reduced cost. We know from customer feedback and our own experience that the right accessories can dramatically expand the efficiency and versatility of your panel saw. Bronze: Customized to maximize the benefits for building component shops. Includes: QUICK STOP Gauge 5 ft. Saw Blade Fixed Stand Wheels: $692.00 Silver: Customized to maximize the benefits for crating and packaging shops. Includes: QUICK STOP Gauge 8 ft. Dust Collection Kit (Vacuum additional) Saw Blade Fixed Stand Wheels: $999.00 Gold: Customized to maximize the benefits for cabinetry and furniture shops. Includes: MID-WAY FENCE QUICK STOP Gauge 8 ft. Saw Blade Fixed Stand Wheels: $1,355.00 *Contact us for full list of optional accessories
