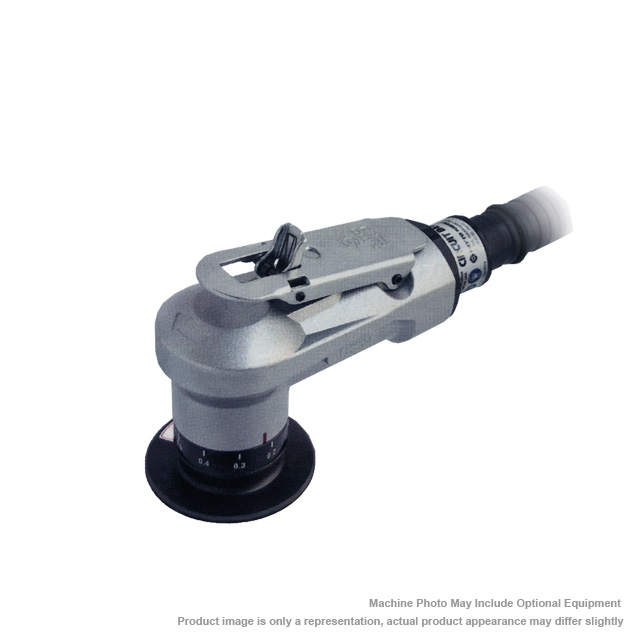

NITTO KOHKI CB-01 .039 in. Pneumatic Circuit Beveler
No reviews yet
Description Pneumatic Radial Chamfering Tool Lightweight and compact for most beveling and chamfering applications Uniquely designed to chamfer circular, elliptical and straight line profiles Chamfers exterior and/or Interior edges Chamfer widths up to .04″ (1mm) for CB-01 at 45° Uses indexable carbide insert ACCESSORIES INCLUDED: Indexable Insert: 2 pcs. (Installed) Indexable Insert Set Screw: 2 pcs. (Installed) Indexable Insert Set Screw: 2 pcs. (Extra Supply) 2mm Allen Wrench Torx 6 (T-6F) Wrench for Insert Set Screw Threaded Adapter PT 1/4″ x NPT 1/4″ SPECIFICATIONS: Air Pressure: 85 PSI Air Consumption: 5.3 CFM No Load Speed: 28,000 RPM Chamfering Capacity (Mild Steel): Up to .039″ (1mm) Chamfer Chamfering Capacity (Stainless Steel): Up to .020″ (0.5mm) Chamfer Chamfer Angle: 45 Degrees Minimum Plate Thickness: .059″ (1.5mm) Maximum chamfer capacity is reduced: to 0.5mm when plate thickness is 1.5mm Minimum Radius: .118″ (3mm Radius) Minimum Hole Diameter: .268″ (6.8mm) Diameter Hole Weight: 1.1 lbs. BEVEL ANGLE, WIDTH AND RADIUS: Angle Stainless Steel (mm) Mild Steel (mm) X Y X Y 45° 0.5 0.5 1 1 Specifications are subject to change without notice. NOTE: Data is provided by the manufacturer. WARRANTY: 1 YEAR – Limited OPTIONAL ITEMS: TV7A030: Cutting Tip for CB-01: (2pcs./set) for Mild Steel (1mm capacity) TV7A031: Cutting Tip for CB-01: (2pcs./set) for Stainless Steel (0.5mm capacity) TB09140: Guide Plate 78 Assembly TB09143: Plate Assembly for Straight Edge Use (Must use with TB09140 Guide Plate 78 Assembly)
