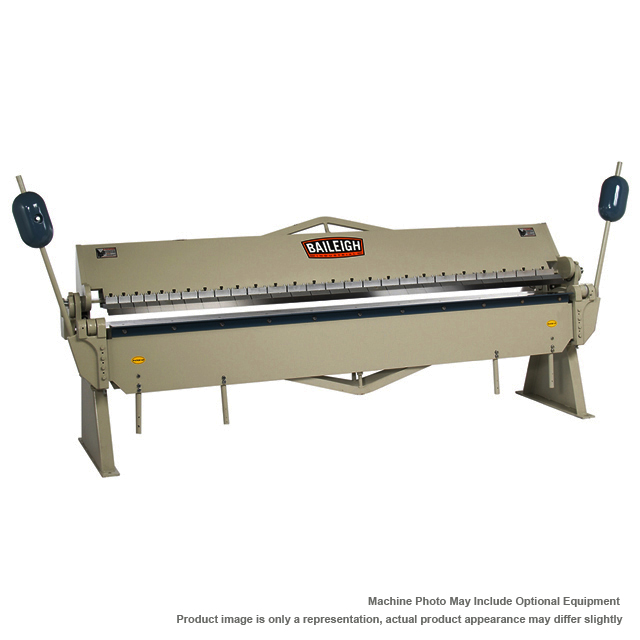

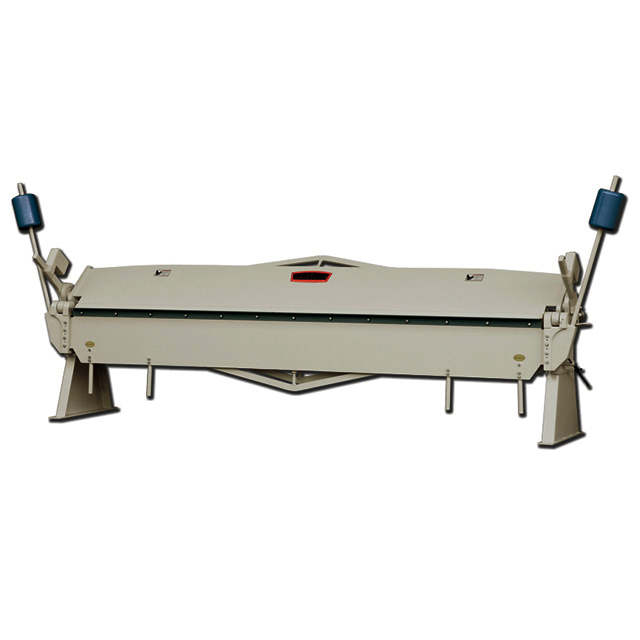

- Description Supported by a welded steel frame, this box brake can bend metal along its 10-foot width without twisting. You can bend 4 x 8 sheets at 45°, crimping to support long duct pieces. Maximum capacity of 14 gauge mild steel and 18 gauge stainless steel. 10-foot (120”) length enables your shop to take on a wide range of projects. Bends up to 135°. 26 fingers of varying sizes (6 fingers of 3″, 4 of 4″, 10 of 5″, 6 of 6″) allow you to bend boxes and pans up to 6” deep. You can set up the individual hardened fingers for straight bending or box and pan configurations. Apron shafts ride in precise lube-for-life bearings, maintaining tight bend tolerances and minimizing operator fatigue. 2 massive counterweights make it easy to bend at maximum capacity and reduce physical strain. Heavy-duty truss rods support the apron to reduce flex on maximum capacity bends. Electro-welded all-steel framework keeps this metal brake accurate over decades of daily use at full capacity. Massively-built sheet metal finger brake weighs in at almost 3500 lbs. Baileigh backs this metal brake with a 1-year parts warranty. Includes lifetime technical support by phone. You can depend on help with the machine and project advice for as long as you’re using the BB-12014. We keep most replacement parts in stock for quick delivery. SPECIFICATIONS: Length: 120″ Thickness (SS): 14 ga (18 ga) Bend Angle: 0 – 135 deg. Beam Adjustment: 1″ Min Reverse Bend: .625″ Box Depth: 6″ Finger Sizes: 3″ – 4″ – 5″ – 6″ Shipping Dimensions (L/W/H): 146″ x 34″ x 48″ Shipping Weight: 3,410 lbs. Specifications are subject to change without notice. NOTE: Data is provided by the manufacturer. WARRANTY: 1 YEAR – Parts
