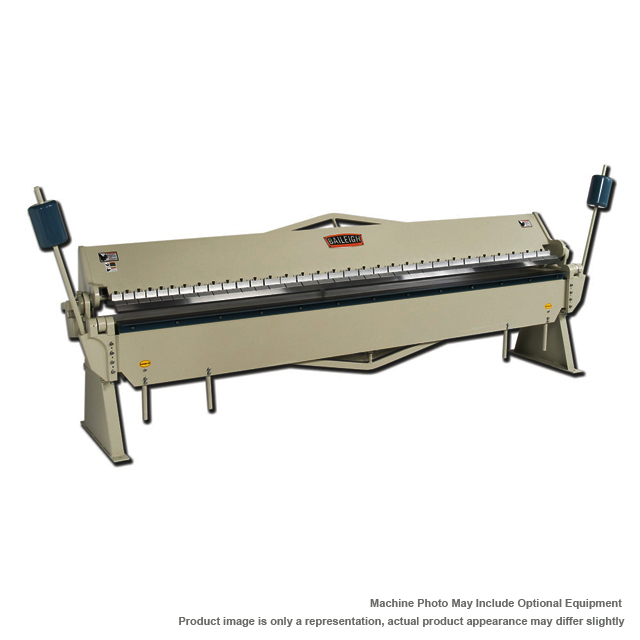

- Description This box brake’s welded steel frame allows for a large capacity—without the twisting you’ll get from many competing metal brakes. The BB-14418 will provide years of trouble-free use. 18 gauge mild steel and 22 gauge stainless steel maximum capacity. Bends sheet metal across its entire 12-foot (144”) length. 135° maximum bend angle. Includes 31 interchangeable fingers of varying lengths (6 fingers of 3″, 6 of 4″, 10 of 5″, 9 of 6″ ). You can make just about any size box or pan imaginable up to a 6” box depth. 2 large counterweights help the operator bend at full length and capacity without straining. Electro-welded steel construction enables this sheet metal brake to handle its maximum capacity while maintaining accuracy. Baileigh covers this sheet metal finger brake with a 1-year parts warranty. Comes with lifetime technical support by phone. You can count on our team of knowledgeable reps for troubleshooting or tips on how to use the BB-14418. We typically keep both the metal brake and replacement parts in stock for fast deliveries. Recommended for: HVAC shops that need extra length for making custom ductwork. SPECIFICATIONS: Length: 144″ Thickness (SS): 18 ga (22 ga) Bend Angle: 0 – 135 deg. Beam Adjustment: 1″ Finger Size: 3″ / 4″ / 5″ / 6″ Min Reverse Bend: .625″ Box Depth: 6″ Shipping Dimensions (L/W/H): 168″ / 34″ / 48″ Shipping Weight: 5,390 lbs. Specifications are subject to change without notice. NOTE: Data is provided by the manufacturer. WARRANTY: 1 YEAR – Parts
