Sale!

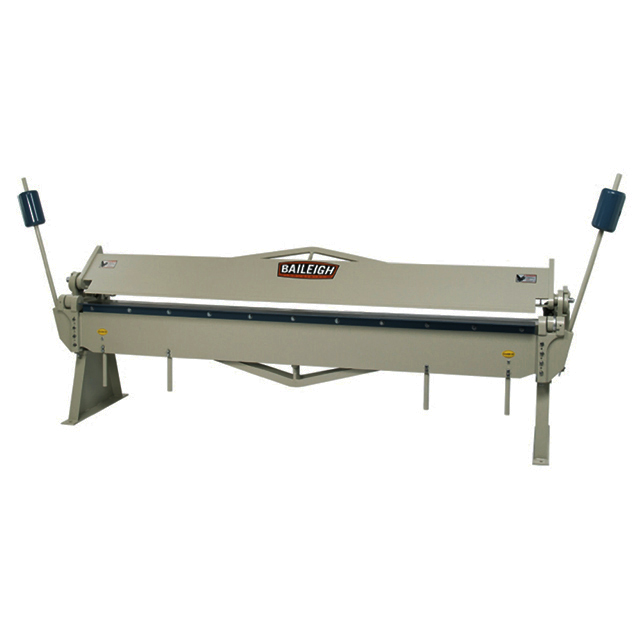

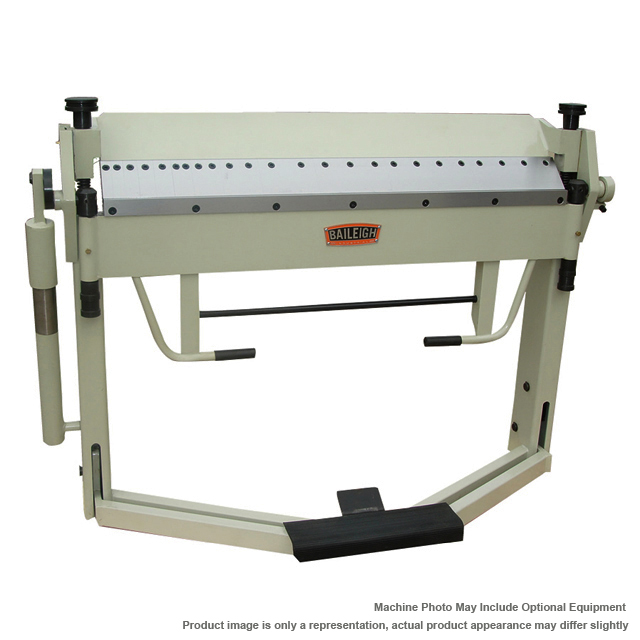

BAILEIGH BB-4012F 3 ft x 12 ga. Sheet Metal Finger Brake

$ 40.26

Category: Side Panels

Description The BB-4012F Baileigh Box and Pan Brake frees up your hands to position the material by letting you clamp the sheet metal with a convenient foot control. This Baileigh sheet metal brake bends up to 12-gauge mild steel across its full 40” length Stop rod lets you make repeatable bends with ease for production runs Hardened bending die ensures years of high-quality results Simple blade gap adjustment helps you correctly bend various gauges of sheet metal Spring-loaded cylinder assists in lifting the apron, especially helpful when you’re bending at full capacity Foot-controlled clamp leaves your hands free to position the sheet metal before clamping in place Comes standard with hardened fingers in an assortment of widths to create many sizes of tanks, pans, boxes, and more Built from the best possible components with a full-welded heavy steel framework to minimize flex and deformation SPECIFICATIONS: Capacity Length: 40″ Capacity Thickness (SS): 12 ga (16 ga) Bend Angle: 0 – 135 deg. Max Clamping Bar Lift (foot operated): 1.85” Box Depth: 2.5″ Shipping Dimensions(L/W/H): 58” / 25” / 50” Shipping Weight: 705 lbs. Specifications are subject to change without notice. NOTE: Data is provided by the manufacturer. WARRANTY: 1 YEAR – Parts
