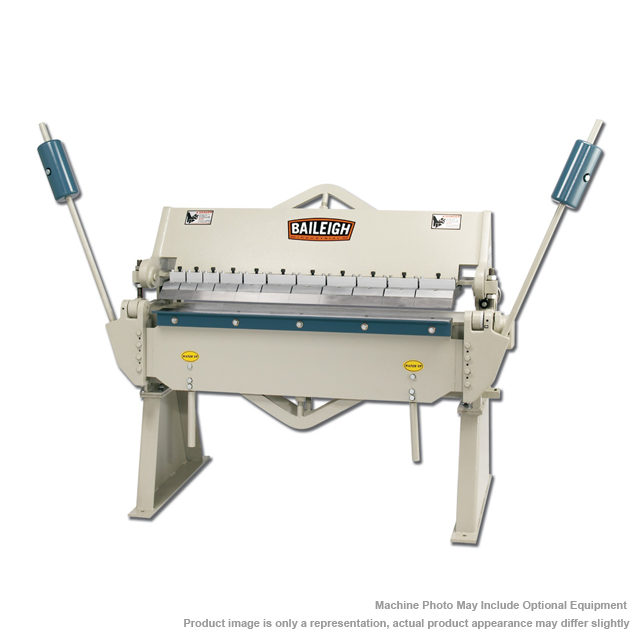

- Description Built to offer years of service, the BB-4812 manual sheet metal bender is one of the most powerful manual Finger Breaks on the market. With its thick steel plate construction, this small metal brake weighs just under 2000 lbs. Recommended for: Any type of metal fabrication shop looking for a small metal brake. Bends 12 gauge (or lighter) mild steel 4 feet (48”) long with a maximum bend angle of 135° Compact size makes a great fit for tight floor plans Includes 11 hardened and polished 3-piece fingers of varying lengths (3 at 3”, 2 at 4”, 5 at 5”,1 at 6”). You can make many different box sizes Up to 6” box depth, made possible by 3-piece design, is one of the largest available 2 handwheels adjust the gap for varying material thickness Comes standard with a stop rod system to help you make repeatable bends and simplify production runs Heavy counterweights assist you with bending thick sheet metal—a relief for operators who frequently use the box brake for long periods of time Massive torsion system, connected to the steel beam and leaf, keeps the beam from twisting at maximum capacity Electro-welded steel framework, supported by solid steel adjustable trusses, prevents flexing, and maintains accuracy SPECIFICATIONS: Length: 48″ Thickness (SS): 12 ga (16 ga) Bend Angle: 0 – 135 deg. Finger Sizes: 3″ – 4″ – 5″ – 6″ Beam Adjustment: 1″ Min Reverse Bend: .625″ Box Depth: 6″ Shipping Dimensions (L/W/H): 71″ / 34″ / 44″ Shipping Weight: 1,980 lbs. Specifications are subject to change without notice. NOTE: Data is provided by the manufacturer. WARRANTY: 1 YEAR – Parts
