GMC 8 ft x 10 ga. Sheet Metal Box and Pan Brake | HBB-0810
No reviews yet

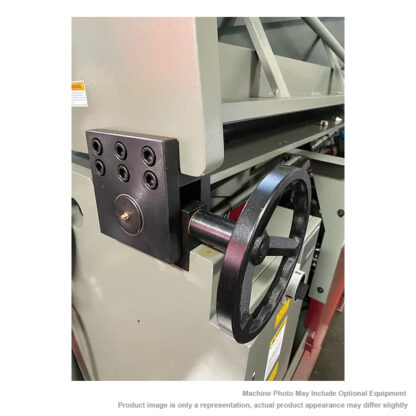

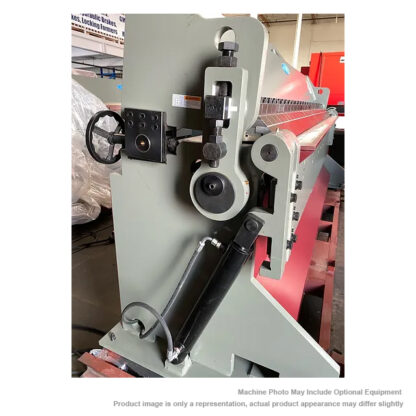

Description Our 8 ft Sheet Metal Box and Pan Brake is a heavy duty hydraulic box and pan brake; constructed of steel for maximum rigidity. Equipped with a robust and quiet German Rexroth hydraulic logic system to clamp your workpiece with ease. Our box and pan brakes are made for simple operation with a conveniently located control panel to place on either side of the hydraulic brake. This machine is not made to Hem over 22 GA. This machine can hem light duty gauge up to 24 GA. with the purchase of a one piece finger. We recommend the HBB-1010NC which is capable of hemming up to 22 Gauge. Taiwan Machines ISO 9001 certified Hydraulic adjustment for opening Hydraulic power clamping for workpiece 26″ manual back gauge with handwheel 1″ manual beam adjustment (front and back) Min. reverse bend is ¾” (20mm) Heavy welded all steel construction for maximum rigidity Germany Rexroth Hydraulic logic system centrally located and quiet A wide guidebody ensures strong, stable, smooth & accurate movement Total pieces fingers assortment: HBB-0410 & 0412: 3″/3pcs, 4″/2pcs, 5″/5pcs and 6″/1pc HBB-0610 & 0612: 3″/6pcs, 4″/3pcs, 5″/6pcs, 6″/2pcs HBB-0810 & 0812: 3″/6pcs, 4″/4pcs, 5″/10pcs, 6″/2pcs HBB-1010 & 1014: 3″/6pcs, 4″/4pcs, 5″/10pcs, 6″/6pcs HBB-10316: 4″/3pcs, 5″/5pcs, 6″/5pcs, 7″/3pcs, 8″/ 4pcs HBB-1214: 3″/6pcs, 4″/4pcs, 5″/10pcs, 6″/10pcs Central control panels on each side for convenient operation Jog and auto operation modes Overload protection and disconnect switch One year warranty for parts *This machine is compatible with a phase converter. Please note that the phase converter must be installed by GMC Machine Tools to ensure warranty coverage. *Once the machine is received and the phase converter is installed by us, it will be ready for use. For more information or if you have any further questions or need assistance, feel free to contact us. STANDARD ITEMS: Assorted fingers 26″ manual back gauge with one side handwheel operation Angle set up dial Hydraulic clamping system Foot pedal control for hydraulic clamping & auto mode SPECIFICATIONS: Bending Capacity Mild Steel – (hot roll) 60k PSI: 10 ga. Stainless Steel – 85k PSI: 12 ga. Soft Aluminum – 28K PSI: 1/4 in. Max Bending Length: 8 ft Hemming max thickness: 24 ga. Bend Degree: 135 Max. Box Depth: 153mm = 6.02 in. Large Beam Opening: 3 in. Manual Back Gauge: 26 in. Oil Tank Capacity: 34 gal. Hydraulic oil: Shell #68 or equivalent Main Motor: 7.5 HP 3 Phase Prewired: 220VAC 20A Optional: 440VAC 10A Machine weight: 6,650 lbs. Shipping weight: 6,600 lbs. Overall Dimensions: 115 x 46 x 69 in. Shipping Dimensions: 127 x 41 x 67 in. OPTIONAL ITEMS: One-piece straight finger instead of assorted fingers , extra – Call for pricing Safety fence for enclosure of the front side of the machine – Call for pricing Safety light curtain – Call for pricing 3″ replacement finger – Call for pricing 4″ replacement finger – Call for pricing 5″ replacement finger – Call for pricing 6″ replacement finger – Call for pricing Specifications are subject to change without notice. NOTE: Data is provided by the manufacturer. WARRANTY: 1 YEAR – Parts
