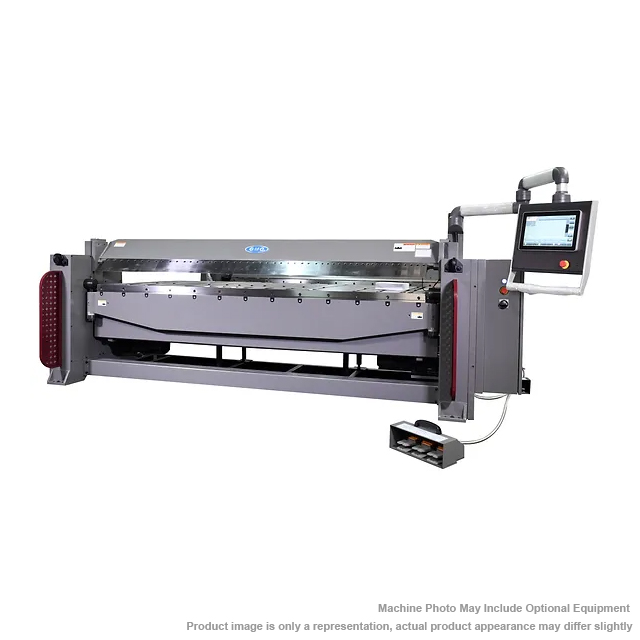

GMC EBB-1014CNC 10 ft x 14 ga. CNC Box and Pan Brake
No reviews yet
Description ISO 9001 certified Designed in US and Taiwan quality Machine Meet OSHA and CE safety standard ESA S840 CNC control, made in Italy 16″ large Digital glass touch screen Max. 99 bends per program Up to 2000 Programs Storage Profiles library with graphics Programmable Radius Bend Programmable Angle/ Angle Correct 48″ CNC back gauge with table and fingers Hardened fingers 2″/3″/4″/6″, up to 48HRC one piece 10′ long straight finger Comes with one 1″ Insert Bar and one ½” Insert Bar Yaskawa Servo motors and Drives Schneider electrical components All steel construction for maximum rigidity Safety type foot pedal with handle and E-stop switch Safety 24V low voltage & overload protection Power supply is 220V, 3phase or 208V, 3 phase One year industrial warranty for parts SPECIFICATIONS: Capacity Mild Steel: 14 Ga. Stainless Steel: 18 Ga. Close hemming with one piece finger: 26 Ga. Open hemming with one piece finger: 24 Ga. Bending length capacity: 10’1″ Bend Angle Degree, programmable: 0- 135 degree Max depth of box or pan: 4 in. Large Beam Opening/clamping opening: 4-7/8 in. Min. Reverse Bend: 1/2 in. Max. Table Back Gauge Distance: 48-3/8 in. Min. Table Back Gauge Distance: 1/2 in. Back Gauge Repeatability: 0.0039 in. Back Gauge Table height: 35-3/4 in. Motor for bending leaf: 4HP, 220V, 3 phase Servo motor for back gauge: 2HP, 220V, 3 phase Clamping Motor: 1-1/2HP, 220V, 3 phase Amperage Draw: 35A Shipping dimensions: 174 x 80 x 71 Machine Dimensions, LWH (in.): 168 x 79 x 67 Machine weight: 9,850 lbs. Shipping weight: 10,150 lbs. Design and Specifications are subject to change without notice. NOTE: Data is provided by the manufacturer. WARRANTY: 1 YEAR – Parts OPTIONAL ITEMS: One day on-site training ……………………………………………………….$4,995.00 Digital Phase Converter# PTE010 for 220V,1phase to 220V, 3 phase …. $4,250.00 (must be purchased and installed by GMC or warranty will be voided) This machine is compatible with a digital phase converter. Please note that the digital phase converter must be installed by GMC Machine Tools to ensure warranty coverage. Once the machine is received and the phase converter is installed by us, it will be ready for use. For more information or if you have any further questions or need assistance, feel free to contact us.
