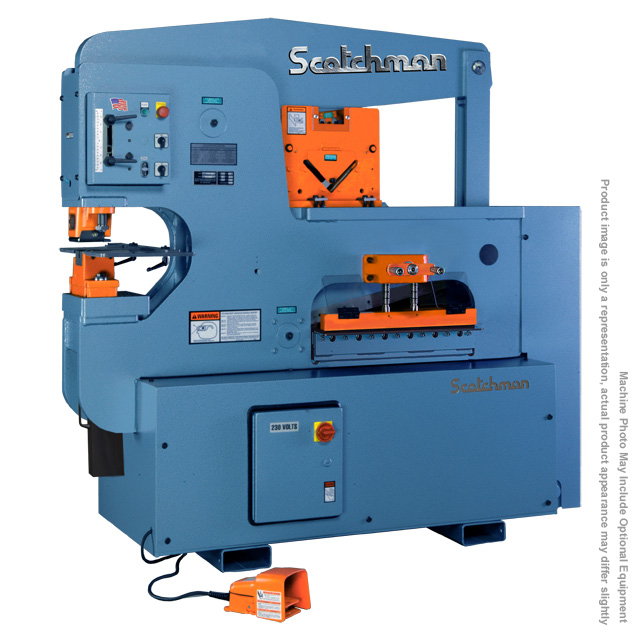

SCOTCHMAN 12012-24M 120 Ton Hydraulic Ironworker | 3-ph, 208v – Options Available
No reviews yet
Description Are you looking for an ironworker machine that can punch and shear 1” thick, 65,000 tensile plate? Scotchman’s 12012-24M is the machine for the job. The Scotchman 12012-24M hydraulic ironworker can punch a 1-1/2” hole through 1” plate, its 24” wide flat bar shear can shear 1” x 12” and 1/2” x 24” base plate and this machine is supplied with a 6” x 6” x 1/2” angle shear. The tool table design is a bonus feature that allows the operator to quickly and easily mount optional tooling making this ironworker adaptable to your specific job. The Scotchman 12012-24M is American-made and backed by our best-in-the-business 3-year parts warranty. Single Operator, 4 Stations 120 Ton Punch Station (1-1/2″ in 1″) Keyed Punch Ram for Safety 12″ Throat Depth Punch Gauging Table with Fence and Scale Die Holder Complete with 2″ Die Insert Punch Nut with Wrench & Stripper One Round Punch & Die: Max. Dia. 1-1/4″ Punch Jog Control Adjustable Electric Stroke Control with Scale Electric Remote Foot Pedal Angle Shear Capacity 6″ x 6″ x 1/2″ at 90° 24″ Flat Bar Shear with 4-Way Reversible Blade (1″ x 12″, 1/2″ x 24″) Shear Table with Miter Fence Tool Table Work Area Slug Receptacle Two-Stage Hydraulic Pump Electrical Box Supplied with Emergency Palm Button and Lock-out Tag-out Accommodations 230/460 volt /3 Phase Electrics (must specify voltage) All Guards Necessary to Comply with ANSI B 11-5 Standards Forklift Accommodations Made in the USA OPTIONAL MODELS: 080708: 12012-24M – 208V, 3PH, 60HZ – $40,390.00 080710: 12012-24M – 230V, 3PH, 60HZ – $40,390.00 080735: 12012-24M – 460V, 3PH, 60HZ – $40,390.00 080720: 12012-24M – 220V, 1PH, 60HZ – $40,890.00 12012-24M (3PH, 60HZ) LESS ANGLE SHEAR – $39,490.00 SPECIFICATIONS: Rated on 65,000 PSI Tensile Punching Capacity 120 ton 1-1/2″ in 1″ Special Tooling 4″ Max. Dia. Throat Depth 12″ Flat Bar Shear 24″ Length 1″ x 12″ 3/4″ x 20″ 1/2″ x 24″ Angle Shear 90° 6″ x 6″ x 1/2″ Angle Shear 45° (with Bar Shear) 3″ x 3″ x 3/8″ 4″ x 4″ x 1/2″ Brake 12″ 83 ton Brake 24″ 65 ton Open End Brake Max. 1/4″ x 5″ Flat or Angle Iron Pipe Notcher Schedule 40 I.D. 3/4″ 1″ 1-1/4″ 1-1/2″ 2″ Rectangle Notcher 2″ x 2-1/2″ x 3/8″ 90° V. Notcher 6″ x 6″ x 5/16″ Channel Shear 2″ to 6″ Adj. Unistrut Shear Samples Required Rod Shear Round Rod (Max.) 1/4″ to 1-1/4″, 9 Cav. Square Rod (Max.) 1/4″ to 1″, 1 Cav. Square Tube Shear 1/2″ to 2″ 12 ga. Picket Tool 1/2″ 3/4″ 1″ 16 ga. Offset Die Holder Max. 40 ton Strokes Per Minute in Light Material 1/4″ Stroke [Punch Station] Strokes Per Minute in Heavy Material 3/4″ Stroke [Punch Station] Hydraulics 2,600 psi Motors Standard 5 hp 3 ph 230/460 208/380/575 Motors Optional 5 hp 1 ph , 230v Dimensions L-77″ x W-28″ x H-73″ Shipping Weight 5,204 lbs. Specifications are subject to change without notice. NOTE: Data is provided by the manufacturer. WARRANTY: 3 YEAR – Parts OPTIONAL ITEMS: CALL FOR PRICE Open End Brake Pipe Notcher 90 degree V-Notcher Tube Shear Picket Tool 48″ Back Gauge Laser Light 12″ & 24″ Brake (*Back Gauge sold separately.) Rectangle Notcher Channel Shear Urethane Stripper 6″ x 6″ Die Holder Offset Die Holder Rod Shear Unequal Leg Angle Blades Hydraulic Hold Down Brake Table with Scale and Squaring Arm. 12″ and 24″ Brakes. Brake Length Gauge with Scale 12″ & 24″ Brakes Unistrut Shear Multi-Loc Punch Gauging Table 36″ and 85″ Extensions Available 24″ x 5′ Conveyor with Angle Iron Support attached to DO70/110 Mandrel Tube Punch (custom tooling) Other styles available in accessories/custom punch and dies Round Tube Punch (custom tooling) Other styles available in accessories/custom punch and dies Punch Table Extension Angle Iron Miter Guide Weld Coupon Bender Flatten and Trim Tube Punch (custom tooling) Other styles available in accessories/custom punch and dies Double Tube Punch. Custom built double tube punch. Tool Table Extension includes Punch & Die Storage Drawer (65 Ton) *Punches & Dies sold separately. LED Light. Available on punch station and shear station.
