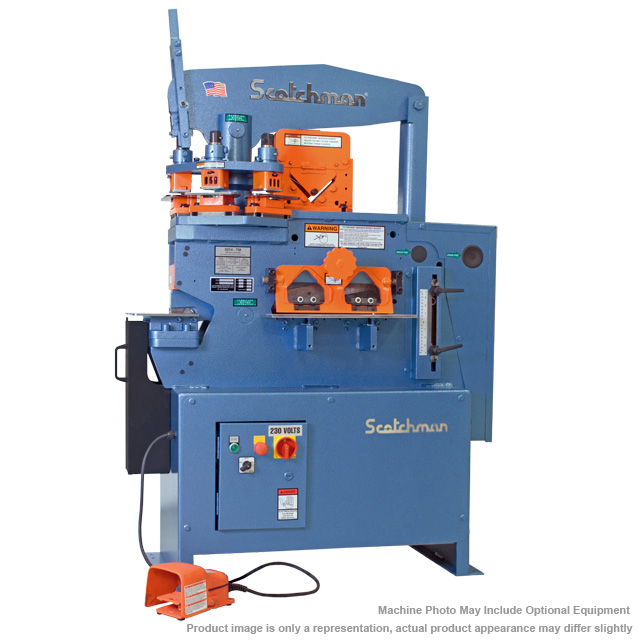

SCOTCHMAN 5014-ET 50 Ton Hydraulic Ironworker with 3-Station Turret | 3-ph, 208v – Options Available
No reviews yet
Description The 5014-ET from Scotchman Industries is the world’s first and only 50-ton hydraulic ironworker with a 3-station turret. The innovative revolving turret accepts up to three different punch sizes that can be changed in seconds reducing set-up time and increasing productivity making the Scotchman 5014-ET ironworker the most versatile and efficient ironworker on the market. This hydraulic ironworker features 50 tons of pressure and has the ability to punch a 13/16″ hole in a 3/4″ plate and comes standard with an angle shear, 14” flat bar shear, and rectangle notcher. The 5014-ET ironworker is proudly made in the USA and is backed by Scotchman’s Best in the Business 3-year warranty. Single Operator, 7 Stations 50 Ton Punch Station with 3-Station Revolving Turret (1-1/4″ in 1/2″ and 13/16″ in 3/4″) Keyed Punch Ram for Safety 4″ Throat Depth Three 2″ Die Holders, Three Punch Nuts with Wrench and Three Strippers One Round Punch & Die: Max. Dia. 1″ Adjustable Electric Stroke Control with Scale Electric Remote Foot Pedal Angle Shear 4″ x 4″ x 3/8″ at 90° and 2″ x 2″ x 3/8″ at 45° 14″ Flat Bar Shear with 4-Way Reversible Blade (3/4″ x 4″, 1/2″ x 8″, 3/8″ x 10″, 1/4″ x 14″) Rectangular Notcher, 2-1/2″ x 3″ x 5/16″ , 2-1/2″ x 2-3/4″ x 3/8″ Tool Table Work Area Slug Receptacle Electrical Box Supplied with Emergency Palm Button and Lock-out Tag-out Accommodations 230/460 volt /3 Phase Electrics (must specify voltage) All Guards Necessary to Comply with ANSI B 11-5 Standards Forklift Accommodations Made in the USA OPTIONAL MODELS: 348022: 5014-ET – 208V, 3PH, 60HZ – $20,890.00 348024: 5014-ET – 230V, 3PH, 60HZ – $20,890.00 348027: 5014-ET – 460V, 3PH, 60HZ – $20,890.00 348025: 5014-ET – 220V, 1PH, 60HZ – $21,490.00 5014-ET (3PH, 60HZ) LESS ANGLE SHEAR – $20,190.00 SPECIFICATIONS: Rated on 65,000 PSI Tensile Punching Capacity 50 ton 1-1/4″ in 1/2″ 13/16″ in 3/4″ Special Tooling 2-1/4″ Max. Dia. Throat Depth 4″ Flat Bar Shear 14″ Length 3/4″ x 4″ 1/2″ x 8″ 3/8″ x 10″ 1/4″ x 14″ Opt. Saber Blade 1/2″ x 10″ 3/8″ x 12″ Angle Shear 90° 4″ x 4″ x 3/8″ Angle Shear 45° 2″ x 2″ x 3/8″ Brake 8″ 25 ton Brake 12″ 25 ton Open End Brake Max. 1/4″ x 3″ Flat or Angle Iron Pipe Notcher 3/4″ 1″ 1-1/4″ 1-1/2″ 2″ Rectangle Notcher 2-1/2″ x 3″ x 5/16″ 2-1/2″ x 2-3/4″ x 3/8″ 90° V. Notcher 6″ x 6″ x 1/8″ 3″ x 3″ x 1/4″ Unistrut Shear Samples Required Rod Shear Round Rod (Max.) 1/4″ to 1″ 5 Cavity 7/16″, 9/16″ 5/8″, 3/4″, 1″ Square Rod (Max.) 1/4″ to 3/4″ 1 Cavity 3/4″ Square Tube Shear 1/2″ to 1″ 12 ga. Picket Tool 1/2″ 3/4″ 1″ 16 gauge Strokes Per Minute in Light Material [Punch Station] 1/4″ stroke Strokes Per Minute in Heavy Material [Punch Station] 3/4″ stroke Hydraulics 2350 psi Motors Standard 3 hp 3 ph 230/460 208/380/575 Motors Optional 5 hp 1 ph , 220v Dimensions L-48″ x W-23″ x H-70″ Shipping Weight 1,580 lbs Specifications are subject to change without notice. NOTE: Data is provided by the manufacturer. WARRANTY: 3 YEAR – Parts OPTIONAL ITEMS: CALL FOR PRICE 6″ Brake 8″ Brake 12″ Brake Open End Brake Pipe Notcher 90 degree V-Notcher Rod Shear Tube Shear Picket Tool Punch Gauging Table with Fence & Scale 48″ Back Gauge Shear Table with Miter Fence 4″ Angle Miter Guide Laser Light Brake Table with Scale and Squaring Arm, 12″ Brake Only Brake Length Gauge with Scale (sold separately) – 8″ & 12″ Brakes Unistrut Shear 14″ x 5′ Conveyor with Angle Iron Support attached to 5014-TM Mandrel Tube Punch (custom tooling) Other styles available in accessories/custom punch and dies Round Tube Punch (custom tooling) Other styles available in accessories/custom punch and dies Tool Table Extension includes Punch & Die Drawer (50-ton) *Punches & Dies sold separately. Weld Coupon Bender LED Light Snap Ring Removal Tool Jog Control
