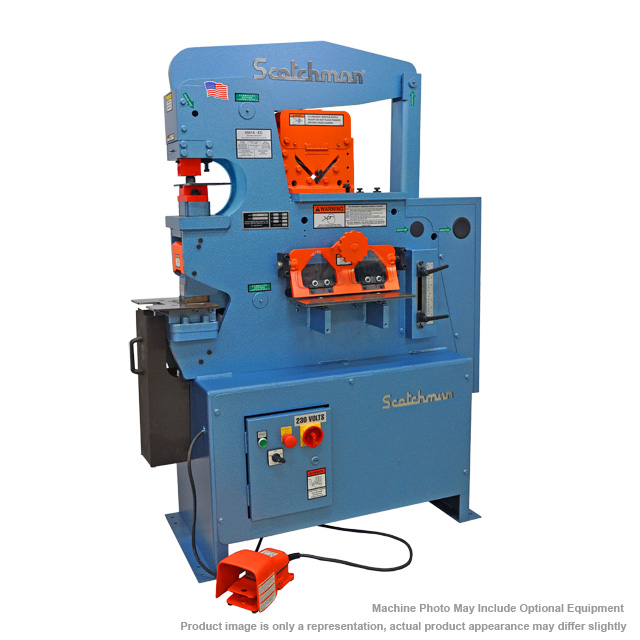

SCOTCHMAN 50514-EC 50 Ton Hydraulic Ironworker | 208v, 3-ph – Options Available

Description The versatile 50514-EC hydraulic ironworker from Scotchman Industries is now better than ever with the addition of a 5th work station. The 50514-EC is an all-around workhorse and comes standard with a 50-ton punch capable of producing a 13/16” hole in 3/4” material, a 4” x 4”x 3/8” angle shear, a 14” flat bar shear, a built-in rectangle notcher, and a fifth station capable of housing an optional pipe notcher. In addition to the standard tooling features, the 50514-EC is also compatible with a range of optional tools from Scotchman for added versatility and function around the shop. Like all Scotchman ironworkers, 50514-EC is proudly made in the USA and backed by Scotchman’s Best in the Business 3-year warranty. Single Operator, 5 Stations 50 Ton Punch Station (1-1/4″ in 1/2″ and 13/16″ in 3/4″) Keyed Punch Ram for Safety 6″ Throat Depth 2″ Die Holder Punch Nut with Wrench & Stripper One Round Punch & Die: Max. Dia. 1″ Adjustable Electric Stroke Control with Scale Electric Remote Foot Pedal Angle Shear Capacity 4″ x 4″ x 3/8″ at 90° and 2″ x 2″ x 3/8″ at 45° 14″ Flat Bar Shear with 4-Way Reversible Blade (3/4″ x 4″, 1/2″ x 8″, 3/8″ x 10″ 1/4″ x 14″) Rectangle Notcher – 2-1/2″ x 3″ x 5/16″, 2-1/2″ x 2-3/4″ x 3/8″ Tool Table Work Area Slug Receptacle Electrical Box Supplied with Emergency Palm Button and Lock-out Tag-out Accommodations 230volt / 3 Phase Electrics All Guards Necessary to Comply with ANSI B 11-5 Standards Forklift Accommodations Made in the USA OPTIONAL MODELS: 560052: 50514-EC – 208V, 3PH, 60HZ – $18,390.00 560054: 50514-EC – 230V, 3PH, 60HZ – $18,390.00 560057: 50514-EC – 460V, 3PH, 60HZ – $18,390.00 560055: 50514-EC – 220V, 1PH, 60HZ – $18,990.00 50514-EC (3PH, 60HZ) LESS ANGLE SHEAR – $17,690.00 SPECIFICATIONS: Rated on: 65,000 PSI Tensile Punching Capacity 50 ton 1-1/4″ in 1/2″ 13/16″ in 3/4″ Special Tooling 2-1/4″ Max. Dia. Throat Depth 6″ Flat Bar Shear 14″ Length 3/4″ x 4″ 1/2″ x 8″ 3/8″ x 10″ 1/4″ x 14″ Opt. Saber Blade 1/2″ x 10″ 3/8″ x 12″ Angle Shear 90° 4″ x 4″ x 3/8″ Angle Shear 45° 2″ x 2″ x 3/8″ Brake 8″ 30 Ton Brake 12″ 25 Ton Open End Brake Max. 1/4″ x 3″ Flat or Angle Iron Pipe Notcher Schedule 40 I.D. 3/4″, 1″ 1-1/4″ 1-1/2″, 2″ Rectangle Notcher 2-1/2″ x 3″ x 5/16″ 2-1/2″ x 2-3/4″ X 3/8″ 90° V. Notcher 6″ x 6″ x 1/8″ 3″ x 3″ X 1/4″ Unistrut Shear Samples Required Rod Shear Round Rod (Max.) 1/4″ to 1″ 5 Cavity 7/16″, 9/16″ 5/8″, 3/4″, 1″ Square Rod (Max.) 1/4″ to 3/4″ 1 Cavity 3/4″ Square Tube Shear 1/2″ to 1″ 12 ga. Picket Tool 1/2″ 3/4″ 1″ 16 Gauge Strokes Per Minute in Light Material 1/4″ stroke [Punch Station] Strokes Per Minute in Heavy Material 3/4″ stroke [Punch Station] Hydraulics 2350 psi Motor 5 hp 1 ph, 220V Dimensions L-47″ x W-29″ x H-59″ Shipping Weight 1,515 lbs. OPTIONAL ITEMS: CALL FOR PRICE 6″ Brake 8″ Brake 12″ Brake Open End Brake Pipe Notcher 90 degree V-Notcher Rod Shear Tube Shear Picket Tool Punch Gauging Table with Fence & Scale 48″ Back Gauge Shear Table with Miter Fence 4″ Angle Miter Guide Laser Light Brake Table with Scale and Squaring Arm, 12″ Brake Only Brake Length Gauge with Scale (sold separately) – 8″ & 12″ Brakes Unistrut Shear 14″ x 5′ Conveyor with Angle Iron Support attached to 5014-TM Multi-Loc Punch Gauging Table 40″ or 90″ Extensions Available Mandrel Tube Punch (custom tooling) Other styles available in accessories/custom punch and dies Round Tube Punch (custom tooling) Other styles available in accessories/custom punch and dies Tool Table Extension includes Punch & Die Drawer (50-ton) *Punches & Dies sold separately. Weld Coupon Bender LED Light Snap Ring Removal Tool Jog Control Specifications are subject to change without notice. NOTE: Data is provided by the manufacturer. WARRANTY: 3 YEAR – Parts
