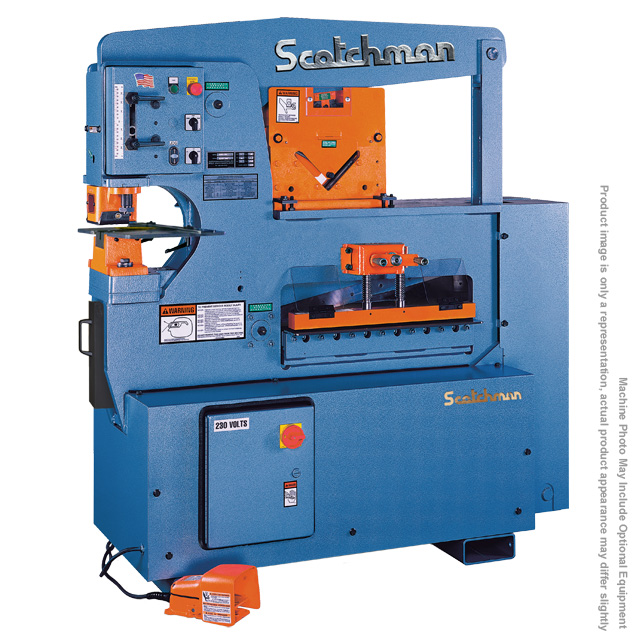

SCOTCHMAN 6509-24M 65 Ton Hydraulic Ironworker | 3-ph, 208v – Options Available
No reviews yet
Description If you are in the metal working or custom fabrication industry, the Scotchman 6509-24M is a must have for your shop. This 65-ton hydraulic ironworker can punch 1-1/16” in 3/4” thick, 65,000 tensile plate. It has the largest flat bar shear capacity (1″ x 6″, 1/2″ x 12″ and 1/4″ x 24″) and the largest angle shear capacity (6” x 6” x 3/8” and 5″ x 5″ x 1/2″) of any machine in its class. Combining this machine’s large capacity with its large open tool table (which accepts up to a 24” press brake and up to a 5” channel shear) makes this machine the most versatile and flexible machine on the market. Like all of Scotchman Industries ironworkers, the 6509-24M is proudly made in the USA and is backed by Scotchman’s Best in the Business 3-year warranty. Single Operator, 4 Stations 65 Ton Punch Station (1-1/16″ in 3/4″) Keyed Punch Ram for Safety 9″ Throat Depth Punch Gauging Table w/Fence and Scale Die Holder Complete with 2″ Die Insert Punch Nut with Wrench and Stripper One Round Punch & Die: Max. Dia. 1-1/4″ Punch Jog Control Adjustable Electric Stroke Control with Scale Electric Remote Foot Pedal 24″ Flat Bar Shear with 4-Way Reversible Blade (1″ x 6″, 1/4″ x 24″) Shear Table with Miter Fence Angle Shear Capacity at 90° 6″ x 6″ x 3/8″ and 5″ x 5″ x 1/2″ Tool Table Work Area Slug Receptacle Two-Stage Hydraulic Pump Electrical Box Supplied with Emergency Palm Button and Lock-out Tag-out Accommodations 230/460 volt /3 Phase Electrics (must specify voltage) All Guards Necessary to Comply with ANSI B 11-5 Standards Forklift Accommodations Made in the USA OPTIONAL MODELS: 007608: 6509-24M – 208V, 3PH, 60HZ – $31,790.00 007610: 6509-24M – 230V, 3PH, 60HZ – $31,790.00 007635: 6509-24M – 460V, 3PH, 60HZ – $31,790.00 007620: 6509-24M – 220V, 1PH, 60HZ – $32,390.00 6509-24M (3PH, 60HZ) LESS ANGLE SHEAR – $30,890.00 SPECIFICATIONS: Rated on 65,000 PSI Tensile Punching Capacity 65 ton 1-1/16″ in 3/4″ Special Tooling 4″ Max. Dia. Throat Depth 9″ Flat Bar Shear 24″ Length 1″ x 6″ 3/4″ x 10″ 1/2″ x 12″ 3/8″ x 16″ 1/4″ x 24″ Opt. Saber Blade 1″ x 6″ 1/2″ x 16″ Angle Shear 90° 6″ x 6″ x 3/8″ 5″ x 5″ x 1/2″ Angle Shear 45° (with Bar Shear) 3″ x 3″ x 3/8″ 4″ x 4″ x 1/2″ Brake 12″ 40 Ton Brake 24″ 30 Ton Open End Brake Max. 1/4″ x 5″ Flat or Angle Iron Pipe Notcher Schedule 40 I.D. 3/4″ 1″ 1-1/4″ 1-1/2″ 2″ Rectangle Notcher 2″ x 2-1/2″ x 3/8″ 90° V. Notcher 6″ x 6″ x 5/16″ Unistrut Shear Samples Required Rod Shear Round Rod (Max.) 1/4″ to 1-1/4″, 9 Cav. Square Rod (Max.) 1/4″ to 1″, 1 Cav. Square Tube Shear 1/2″ to 2″, 12 ga. Picket Tool 1/2″ 3/4″ 1″ 16 gauge Offset Die Holder Max. 40 ton Strokes Per Minute in Light Material 1/4″ Stroke [Punch Station] Strokes Per Minute in Heavy Material 3/4″ Stroke [Punch Station] Hydraulics 2,600 psi Motors Standard 5 hp 3 ph 230/460 208/380/575 Motors Optional 5 hp 1ph , 230v Dimensions L-60″ x W-24″ x H-66″ Shipping Weight 2,984 lbs. Specifications are subject to change without notice. NOTE: Data is provided by the manufacturer. WARRANTY: 3 YEAR – Parts OPTIONAL ITEMS: CALL FOR PRICE Open End Brake Pipe Notcher Rectangle Notcher 90 degree V-Notcher Tube Shear Picket Tool 48″ Back Gauge Laser Light 12″ & 24″ Brake (*Back Gauge sold separately.) Rectangle Notcher Channel Shear Urethane Stripper 6″ x 6″ Die Holder Offset Die Holder Rod Shear Unequal Leg Angle Blades Hydraulic Hold Down Brake Table with Scale and Squaring Arm. 12″ and 24″ Brakes. Brake Length Gauge with Scale 12″ & 24″ Brakes Unistrut Shear Multi-Loc Punch Gauging Table 36″ and 85″ Extensions Available 24″ x 5′ Conveyor with Angle Iron Support attached to DO70/110 Mandrel Tube Punch (custom tooling) Other styles available in accessories/custom punch and dies Round Tube Punch (custom tooling) Other styles available in accessories/custom punch and dies Punch Table Extension Angle Iron Miter Guide Weld Coupon Bender Flatten and Trim Tube Punch (custom tooling) Other styles available in accessories/custom punch and dies Double Tube Punch. Custom built double tube punch. Tool Table Extension includes Punch & Die Storage Drawer (65 Ton) *Punches & Dies sold separately. LED Light. Available on punch station and shear station.
