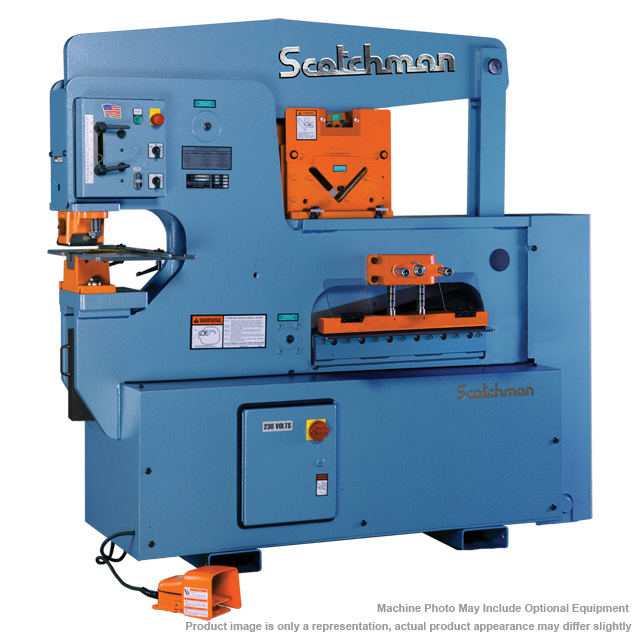

SCOTCHMAN 9012-24M 90 Ton Hydraulic Ironworker | 3-ph, 208v – Options Available

Description If you are in the medium to large metal fabrication business, the Scotchman 9012-24M hydraulic ironworker will give you the greatest amount of versatility and flexibility on the market today. The Scotchman 9012-24M has a 90-ton Punch Station capable of punching a 1-1/16” hole in 1” thick, 65,000 tensile mild steel. The Flat Bar Shear is 24” wide and is supplied with bar shear blades that can be rotated four times for maximum blade life. The Angle Shear capacity on this machine is 6” x 6” x 1/2”; and like all Scotchman angles shears, it is designed to give a distortion free cut. The 9012-24M hydraulic ironworker has the same large tool table design as the 6509-24M, allowing quick and easy change of optional tooling. Like all Scotchman ironworkers, the 9012-24M is backed by our best-in-the business 3-year warranty! Single Operator, 4 Stations 90 Ton Punch Station (1-1/8″ in 1″) Keyed Punch Ram for Safety 12″ Throat Depth Punch Gauging Table with Fence and Scale Die Holder Complete with 2″ Die Insert Punch Nut with Wrench & Stripper One Round Punch & Die: Max. Dia. 1-1/4″ Punch Jog Control Adjustable Electric Stroke Control with Scale Electric Remote Foot Pedal Angle Shear Capacity 6″ x 6″ x 1/2″ at 90° 24″ Flat Bar Shear with 4-Way Reversible Blade (1″ x 8″, 1/4″ x 24″) Shear Table with Miter Fence Tool Table Work Area Slug Receptacle Two-Stage Hydraulic Pump Electrical Box Supplied with Emergency Palm Button and Lock-out Tag-out Accommodations 230/460 volt /3 Phase Electrics (must specify voltage) All Guards Necessary to Comply with ANSI B 11-5 Standards Forklift Accommodations Made in the USA OPTIONAL MODELS: 030008: 9012-24M – 208V, 3PH, 60HZ – $36,790.00 030010: 9012-24M – 230V, 3PH, 60HZ – $36,790.00 030035: 9012-24M – 460V, 3PH, 60HZ – $36,790.00 030020: 9012-24M – 220V, 1PH, 60HZ 030020 – $37,290.00 9012-24M (3PH, 60HZ) LESS ANGLE SHEAR – $35,890.00 SPECIFICATIONS: Rated on 65,000 PSI Tensile Punching Capacity 90 ton 1-1/8″ in 1″ Special Tooling 4″ Max. Dia. Throat Depth 12″ Flat Bar Shear 24″ Length 1″ x 8″ 3/4″ x 12″ 1/2″ x 16″ 1/4″ x 24″ Opt. Saber Blade 1/2″ x 22″ 3/8″ x 24″ Angle Shear 90° 6″ x 6″ x 1/2″ Angle Shear 45° (with Bar Shear) 3″ x 3″ x 3/8″ 4″ x 4″ x 1/2″ Brake 12″ 50 Ton Brake 24″ 40 Ton Open End Brake Max. 1/4″ x 5″ Flat or Angle Iron Pipe Notcher Schedule 40 I.D. 3/4″ 1″ 1-1/4″ 1-1/2″ 2″ Rectangle Notcher 2″ x 2-1/2″ x 3/8″ 90° V. Notcher 6″ x 6″ x 5/16″ Channel Shear 2″ to 6″ Adj. Unistrut Shear Samples Required Rod Shear Round Rod (Max.) 1/4″ to 1-1/4″, 9 Cav. Square Rod (Max.) 1/4″ to 1″, 1 Cav. Square Tube Shear 1/2″ to 2″ 12 ga. Picket Tool 1/2″ 3/4″ 1″ 16 ga. Offset Die Holder Max. 40 ton Strokes Per Minute in Light Material 1/4″ Stroke [Punch Station] Strokes Per Minute in Heavy Material 3/4″ Stroke [Punch Station] Hydraulics 2,600 psi Motors Standard 5 hp 3 ph 230/240 208/380/575 (please specify) Motors Optional 5 hp 1ph , 230v Dimensions L-76″ x W-26″ x H-70″ Shipping Weight 4,204 lbs. Specifications are subject to change without notice. NOTE: Data is provided by the manufacturer. WARRANTY: 3 YEAR – Parts OPTIONAL ITEMS: CALL FOR PRICE Open End Brake Pipe Notcher 90 degree V-Notcher Tube Shear Picket Tool 48″ Back Gauge Laser Light 12″ & 24″ Brake (*Back Gauge sold separately.) Rectangle Notcher Channel Shear Urethane Stripper 6″ x 6″ Die Holder Offset Die Holder Rod Shear Unequal Leg Angle Blades Hydraulic Hold Down Brake Table with Scale and Squaring Arm. 12″ and 24″ Brakes. Brake Length Gauge with Scale 12″ & 24″ Brakes Unistrut Shear Multi-Loc Punch Gauging Table 36″ and 85″ Extensions Available 24″ x 5′ Conveyor with Angle Iron Support attached to DO70/110 Mandrel Tube Punch (custom tooling) Other styles available in accessories/custom punch and dies Round Tube Punch (custom tooling) Other styles available in accessories/custom punch and dies Punch Table Extension Angle Iron Miter Guide Weld Coupon Bender Flatten and Trim Tube Punch (custom tooling) Other styles available in accessories/custom punch and dies Double Tube Punch. Custom built double tube punch. Tool Table Extension includes Punch & Die Storage Drawer (65 Ton) *Punches & Dies sold separately. LED Light. Available on punch station and shear station.
