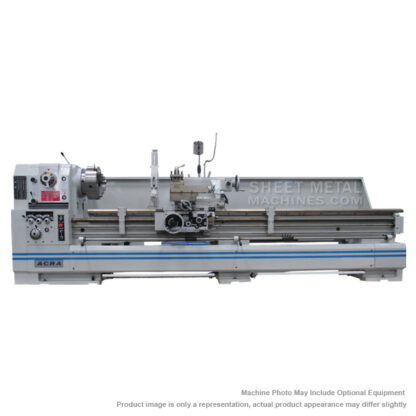

ACRA ACH 26 in. Precision Gap Bed Engine Lathe – Options Available

Description Made in Taiwan Bed: • MEEHANTIE CAST IRON, VIBRATION STRESSES RELIEVED. • INDUCTION HARDENED (HS70 DEGREE) AND PRECISION GROUND. • PRECISION HAND SCRAPED REMOVABLE GAP. • FOOT BRAKE Universal Gear Box: • OIL BATH LUBRICATION. • HEAT-TREATED GEARS. • INCH/METRIC/MODULE/DIAMETRICAL THREADS. • OUTPUT SHAFT IS DESIGNED WITH SAFETY PIN Apron and Saddle: • MANUAL AND AUTOMATIC LUBRICATION SYSTEM-OIL DISTRIBUTOR ADJUSTED TO LUBRICATING BED WAYS AND CROSS SIDE OR BOTH. • OVERLOAD PROTECTION DEVICE. • CROSS SLIDE IS HARDENED AND PRECISION GROUND. • CROSS SLIDE SCREWS ARE HARDENED AND OIL BATHED. • FORWARD-OFF-REVERSE LEVER. • TOP AND SADDLE SLIDE LOCKING SYSTEM. • T-SLOT COMPOUND FOR AMERICA AREA Spindle: • SUPPORTED BY 3 PRECISION P-GRADE TAPER ROLLER BEARINGS. • DYNAMICALLY BALANCED, HARDENED AND PRECISION GROUND. • ACH-2200 SERIES-D1-11 SPINDLE NOSE, SPINDLE HOLE 4.09″ Headstock: • ALL GEARS MADE BY CHROMIUM MOLYBDENUM STEEL AND SEGMENTATION TREATED AND PRECISION GROUND. • FORCED LUBRICATION SYSTEM Tailstock: • QUILL MADE BY CHROMIUM MOLYBDENUM STEEL WITH SEGMENTATION AND PRECISION GROUND. • ACH-2200 SERIES-DIAMETER TAIL STOCK SPINDLE 2.935″ AND SPINDLE TRAVEL 7″ • TWO SPEED WITH 1:1 AND 1/4:1 CHANGE FEEDS. STANDARD EQUIPMENT: 15″ 3-Jaw Chuck Steady Rest (1-3/5″ ~ 10″) Coolant System Halogen Light 4 Way Tool Holder Full Length Splash Guard Removable Gap OPTIONAL MODELS: 2690ACH 26″x90″ Precision Gap Bed Engine Lathe: $41,500.00 26120ACH 26″x120″ Precision Gap Bed Engine Lathe: $49,500.00 26160ACH 26″x160″ Precision Gap Bed Engine Lathe: $57,500.00 SPECIFICATIONS: MODEL 2690ACH 26120ACH 26160ACH CAPACITY Swing Over Bed: 26″ Swing In Gap: 35-1/8″ Swing Over Cross Slide: 17-1/2″ Distance Between Centers 90″ 120″ 160″ Width of Bed 15-3/4″ HEADSTOCK Spindle Nose Type: D1-11 Spindle Bore 4-1/16″ Taper of Spindle MT NO.7 x MT NO.5 Spindle Speeds Steps: 12 step Range: 13 ~ 1,200 RPM CARRIAGE Cross Slide Travel: 15-3/4″ Compound Slide Travel 9-1/2″> THREAD & FEEDS Inch threads 2~72 TPI Metric threads 0.2 ~ 14 mm Longitudinal Feeds 0.0012 ~ 0.039″ /rev Cross Feeds 0.0004 ~ 0.0117″ /rev TAILSTOCK Quill Diameter: 2.935″ Quill Travel: 7″ Taper Center MT No. 5 POWER Spindle Drive Motor: 15 HP/4P Voltage 230/460V AC / 3 PH MEASUREMENT Weight 7,200 lbs. 7,700 lbs. 8,450 lbs. Dimensions 146″ x 48″ x 60″ 178″ x 48″ x 60″ 217″ x 48″ x 60″ Specifications are subject to change without notice. NOTE: Data is provided by the manufacturer. WARRANTY: 1 YEAR – Parts OPTIONAL ITEMS: Steady Rest (1-3/5” ~ 10”)………………. $ 3,250.00 Large Steady Rest (7-1/2″ ~ 15″) ………. $ 3,500.00 7″ Follow Rest ………………………………… $ 700.00 20″ Face Plate ……………………………….. $ 1,000.00 Taper Attachment …………………………… $ 4,000.00 Taper Attachment Install…………………. $ 425.00 Newall Digital Read-Out-14″ X 60″ DP700…………………………….. $ 3,250.00 Newall Digital Read-Out-14″ X 60” NMS300….……………….…… $ 1,650.00 Newall Digital Read-Out-14″ X 88″ DP700…………………………….. $ 4,000.00 Newall Digital Read-Out-14″ X 88″ NMS300……….……….……… $ 1,900.00 Newall Digital Read-Out-14″ X 120″ DP700…………………………… $ 5,200.00 Newall Digital Read-Out-14″ X 120” NMS300……….…….……….. $ 2,450.00 Newall Digital Read-Out-14″ X 160″ DP700…………………………… $ 6,500.00 Acu-Rite Digital Read-Out-16″ X 60″ 203……………………………… $ 3,500.00 Acu-Rite Digital Read-Out-16″ X 90″ 203……………………………… $ 4,400.00 Acu-Rite Digital Read-Out-16″ X 120″ 203……………………………. $ 5,400.00 Acu-Rite Digital Read-Out-16″ X 60” 303.…………………………… $ 3,950.00 Acu-Rite Digital Read-Out-16″ X 90” 303.……………………………. $ 4,850.00 Acu-Rite Digital Read-Out-16″ X 120” 303.………………………….. $ 5,750.00 Sony or Fagor or Mitutoyo Digital Read-Out…………………………. $ P.O.R. D.R.O. Installation……………………………………………………………. $ 375.00 Aloris Tool Post Set (CA) 5pc…..…………………………………. $ P.O.R. Import Quick Change Tool Holder………………………………………. $ 750.00 Live Center MT 5…………………………………………………………. $ 500.00 20” 4 Jaw Chuck (China)………………………………………………… $ 2,500.00 16” 4 Jaw Chuck……………………………………………………………. $ 1,750.00 Micro Carriage Stop ……………………………………………………….. $ 400.00 4 Position Carriage Stop………………..…………………………. $ 500.00

Because it's a high-quality product, meticulous attention to detail is required during the manufacturing process.
