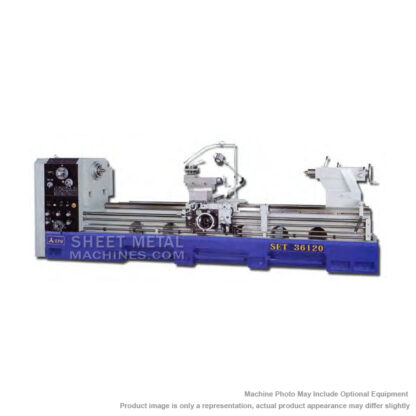

ACRA SET 36 in. Precision Gap Bed Engine Lathe – Options Available

Description Made in Taiwan – High Quality! Acra’s Precision Gap Bed Engine Lathes are made in Taiwan and features the following: Headstock: • All gears and mandrel are made of alloy steel with heat treatment and precision ground. • Rotating type speed changing system is easy to operate. Spindle: • Large bore spindle, supported by 3-point precision bearings. • Suitable for heavy-duty cutting. Tailstock: • With speed reduced quill suitable for heavy duty drilling, hand wheel is with dual dial.. Apron & Saddle: • Easy-operated overload protect safety devise. • Central lubrication system can be operated manually or automatically. Gear Box: • Universal gear box design, is able to cut metric thread, Imperial thread, module thread without changing gears. Lathe Bed: • High tensile ribs structure. high precision and wide bed surface. • With hardened and precision ground. • One piece structure lathe bed enhances the machines life and working performance. Auto Longitudinal Stop: • Auto longitudinal travel devise will control the feed of tool post. Emergency Brake System: • More safe emergency brake system can shut off power supply simultaneously. STANDARD EQUIPMENT: 20″ 3-Jaw Chuck Full Length Rear Splash Guard Coolant System Halogen Light Full Length Splash Guard Rapid Travel Steady/Follow Rest 4 Way Tool Holder OPTIONAL MODELS: 3660SET 36″x60″ Precision Gap Bed Engine Lathe: $66,000.00 3680SET 36″x80″ Precision Gap Bed Engine Lathe: $68,000.00 36120SET 36″x120″ Precision Gap Bed Engine Lathe: $76,500.00 36160SET 36″x160″ Precision Gap Bed Engine Lathe: $87,500.00 36200SET 36″x200″ Precision Gap Bed Engine Lathe: $101,250.00 36240SET 36″x240″ Precision Gap Bed Engine Lathe: $119,750.00 36280SET 36″x280″ Precision Gap Bed Engine Lathe: $147,000.00 SPECIFICATIONS: MODEL 3660SET 3680SET 36120SET 36160SET CAPACITY Swing Over Bed: 36.61″ Swing Over Cross Slide: 27.56″ Swing In Gap: 47.24″ Distance Between Centers 60″ 80″ 120″ 160″ Bed Width 18-1/8″ HEADSTOCK Spindle Nose: A2-11 Spindle Bore: 6.02″ Taper of Spindle: MT NO.5 Spindle Speeds – Steps: 12 Spindle Speeds – Range: 15 ~ 1,000 RPM CARRIAGE Cross Slide Travel: 16-1/2″ Compound Slide Travel: 10″ THREAD & FEEDS Inch Threads: 2 ~ 28 TPI Metric Threads: 0.8 ~ 14 mm Longitudinal Feeds: 0.05″ ~ 0.7 mm/rev Cross Feeds: 0.025 ~ 0.35 mm/rev TAILSTOCK Quill Diameter: 3-3/4″ Quill Travel: 9″ Quill Taper: MT NO.5 POWER Spindle Drive Motor: 25 HP x 4P Voltage: 230/460V AC /3 PH MEASUREMENT Weight 12,100 lbs. 13,000 lbs. 15,100 lbs. 16,900 lbs. Dimensions 138″ x 63″ x 75″ 158″ x 63″ x 75″ 197″ x 63″ x 75″ 237″ x 63″ x 75″ MODEL 36200SET 36240SET 36280SET CAPACITY Swing Over Bed: 36.61″ Swing Over Cross Slide: 27.56″ Swing In Gap: 47.24″ Distance Between Centers 200″ 240″ 280″ Bed Width 18-1/8″ HEADSTOCK Spindle Nose: A2-11 Spindle Bore: 6.02″ Taper of Spindle: MT NO.5 Spindle Speeds – Steps: 12 Spindle Speeds – Range: 15 ~ 1,000 RPM CARRIAGE Cross Slide Travel: 16-1/2″ Compound Slide Travel: 10″ THREAD & FEEDS Inch Threads: 2 ~ 28 TPI Metric Threads: 0.8 ~ 14 mm Longitudinal Feeds: 0.05″ ~ 0.7 mm/rev Cross Feeds: 0.025 ~ 0.35 mm/rev TAILSTOCK Quill Diameter: 3-3/4″ Quill Travel: 9″ Quill Taper: MT NO.5 POWER Spindle Drive Motor: 25 HP x 4P Voltage: 230/460V AC /3 PH MEASUREMENT Weight 18,700 lbs. 20,500 lbs. 22,400 lbs. Dimensions 276″ x 63″ x 75″ 315″ x 63″ x 75″ 355″ x 63″ x 75″ Specifications are subject to change without notice. NOTE: Data is provided by the manufacturer. WARRANTY: 1 YEAR – Parts OPTIONAL ITEMS: Steady Rest (20”) …………………………………. $ 3,500.00 Steady Rest (24”) SET36 Only…..………………. $ 4,500.00 Face Plate………………………..…………………. $ 1,250.00 Taper Attachment……………………………..……. $ 4,000.00 Installation Taper Attachment………………..……. $ 750.00 Change 6” to 9” A2-15 Nose………………………. $ 20,000.00 Newall Digital Read-Out-60″ DP700………….…… $ 3,250.00 Newall Digital Read-Out-60″ NMS300……………. $ 1,650.00 Newall Digital Read-Out-80″ DP700.……………… $ 4,000.00 Newall Digital Read-Out-80″ NMS300…………….. $ 1,900.00 Newall Digital Read-Out-120″ DP700…..………… $ 5,200.00 Newall Digital Read-Out-120″ NMS300……………. $ 2,450.00 Newall Digital Read-Out-160” DP700……….……. $ 6,500.00 Newall Digital Read-Out-200” DP700……..……… $ 8,100.00 Newall Digital Read-Out-240” DP700…….….…… $ 8,600.00 Acu-Rite Digital Read-Out-60″/80″/120″ 203/303…………………….. $ P.O.R. Fagor or Mitutoyo Digital Read-Out…………………………………… $ P.O.R. Import Quick Change Tool Post …….……………….……….……… $ 1,600.00 Aloris Tool Post Set (DA) 5 pc……….……………………………….. $ P.O.R.

Because it's a high-quality product, meticulous attention to detail is required during the manufacturing process.
