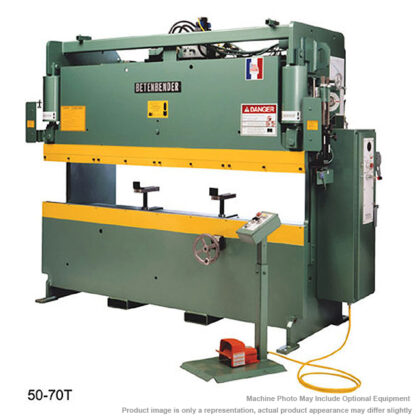

BETENBENDER 10 ft x 70 Ton Hydraulic Press Brake | Model 10-70

Description ** FREE SHIPPING TO COMMERCIAL ADDRESS THAT CAN OFFLOAD** MADE IN USA Frame: The frame is of open throat design with mounting holes in feet. Drilled and tapped holes in feet allow for leveling of the machine. Bed: The machined flat surface is slotted full length to accommodate standard die holders, filter blocks, misc. Front & Back of Bed: The bed is machined down 4” on the front and 12” on the back to allow a flat surface for mounting various brackets, supports and gauges. Ram: The ram is constructed of solid steel slotted to accept standard dies. The clamping bar is sectional for positive clamping. The upper is machined up to 4” to allow a flat surface for mounting brackets and gauges. Ram Tilt Adjustment: The micrometer spindle is located on the right side end frame of machine, which allows for adjustment of the desired angle required up to ±0.500 inch. The micrometer allows the operator to return to a given setting, parallel to desired angle. By using the micrometer reading, the machine can return to previous position. Ram Level: The ram level is accomplished by two hydraulic systems, one for each cylinder, which keeps them parallel. The ram self-levels at the bottom of each stroke even if hydraulic system is out of adjustment. Hydraulic Cylinders: Direct acting hydraulic cylinders are one piece, double acting with self-aligning, hardened ball sockets. Accuracy: Parallelism is maintained at ±0.002 inch in low speed. Operating Controls: 1. Pull to start. Push off. Light is on when in the “ON” position. 2. Run/Jog switch. Run position for normal operation. Jog position for loading of tooling, maintenance and set-up. Up/Down buttons are used when in jog. 3. 3 Position Foot Petal a. Ram up b. Ram hold c. Foot petal down. Ram down allows or jogging of ram down and holding. Emergency stop and emergency up buttons are located on a small pedestal that comes from the foot petal. 4. Cycle time delay at bottom of stroke *When using top & bottom tools on a press brake, a forming system is created which requires analysis to determine the appropriate safeguarding for operator safety and protection. *It is the user’s responsibility to ensure that the point of operation is effective and all applicable safety requirements are met. Stroke Control (Optional): Control of strokes in accomplished by rotation of hand wheels, which read in thousandths of an inch and set the closed height. When the machine is 2 or 3 speed, the knob for setting the speed change point is located on right side for simple adjustments. Tonnage Control (Optional): Our machines are equipped with optional adjustable tonnage control to go from lower tonnage to rated tonnage of machine, as well as overload protection. Backgauge: A slide and clamp, 3 axis backgauge 24” is standard. 1. Front operated manual backgauge, hand wheel with mechanical readout (0.01) 2. Front operated power backgauge with LED readout (0.001) CNC backgauging and front gauging is optional. Front Support Arms (Optional): 24” support arms are “slide” type. Optional disappearing stops help to hold the material from sliding backward. Electrical System: The electrical systems meet NFPA 79 standards. All machines have disconnect switches, magnetic starters, 110/120v controls, 208-230/460v 3 phase, others optional. Motors: Our American made motors are rated for continuous duty, open drip. Lubrication: Grease zerks are standard. One shot lube or automatic lubrication is optional. Safety Features: Betenbender Hydraulic Press Brakes and Shears are built to meet ANSI B11.3 standards. Safety features of the Betenbender Press Brake include: Emergency stop on pedestal Emergency up on pedestal Warning signs, safety markings and covers Electronics meet NFPA 79 standards 110/120v control Specifications are subject to change without notice. Compliance with OSHA requirements is the legal responsibility of the user and is subject to local inspectors’ interpretation of existing standards. Betenbender Shears are built to meet ANSI B11.3 standards STANDARD EQUIPMENT: Clamp Type Backgauge-Manual Adjustment X, Y, and Z Two Speed Ram Bottom Time Delay Three Position Foot Pedal Depth Stop w/Digital Readout Three Speed (95T and Larger) American Made Motors Hour Meter Nema Electrics All Hydraulic Fluids Included Disconnect Switch All Steel Construction NOTE: DIE RISERS NOT FURNISHED SPECIFICATIONS: Overall Width (in.): 45 Width of Bed (in.): 4 Width of Upper Machined Ram (in.): 1-3/4 Overall Height (in.): 96 Throat Depth (in.): 8 Open Height (in.): 14 Closed Height (in.): 6 Height of Bed (in.): 28 Overall Length (in.): 135 Distance Between Housing (in.): 102-1/2 Width of Upper Ram (in.): 2 Width of Upper End Plates (in.): 36 Press (IPM): 0-44 Rapid Approach (IPM): 44 Return to Open (IPM): 63 2-Speed Electric Shift: Std. HP: 10 HP, 208/230v, 28amps or 460v, 14amps (specify) Weight (lbs.): 13,000 **ESTIMATED WEIGHTS. The weight of your machine may vary from the estimated weight listed here. Weights may vary according to options included. > For specs on larger machines please call or email us and we will provide those for you. > All dimensions are in inches unless otherwise noted. (To convert to centimeters multiply by 2.54) > Engineering data and dimensions are subject to change without notice due to continuing product development. > Foundation plans are available upon request. > Die Blocks are not furnished. > To convert Horsepower to KW, multiply by 0.746 Specifications are subject to change without notice. NOTE: Data is provided by the manufacturer. WARRANTY: 1 YEAR – Parts OPTIONAL ITEMS: Factory Start Up by Base Service Technician …… $1,250.00 per day plus expenses *24″ Support Arms “Slide” Type W/T-Slots …………………… $1,200.00 pair *Keylock Switch ……………………………………………………………. $300.00 *Light Curtain ……………………………………………………………….. $7,500.00 Manual Front Reading Backgauge (24”) with Mechanical Readout …. $CALL *One Shot Lubrication …………………………………………………. $1,100.00 *Operator Station Palm Control …………………………………… $1,900.00 *Variable Tonnage Control ………………………………………….. $1,550.00 *Work Light ………………………………………………………………….. $450.00 208v Single Phase …………………………. $CALL Additional Foot Pedal with Keylock ……………………………… $CALL Air Lift (Recommended for 4/Way Dies ……………………….. $CALL Angle Brackets (Plates) for Bottom (4″x4″) 18″ Shorter than Bed ……. $300.00 per foot Angle Brackets (Plates) for Top (4″x4″) 18″ Shorter than Bed ……… $300.00 per foot Automatic Lubrication ………………………………………………….. $3,100.00 each Bed Machining Angle Brackets ……………………………………. $1,900.00 Bolt/Shim Kit for Leveling  ……………………………………….. $450.00 CNC Backgauge ……………………………. $CALL CNC Ram Stop ……………………………… $CALL Crating Charge (Not an Export Crate) Still Requires Tarping ….. P.O.R. Die Riser ……………………………………………………………… P.O.R. Die Rollover Bars (Recommended for 4/Way Dies) ….. $250.00 Disappearing Stops (Support Arms) ……………………….. $200.00 each Dove Tails …………………………………….. $CALL Dual Calibration …………………………… $CALL Extended Support Arms (each) ………………………………… $60.00 per foot Extra Length on Backgauge ……………………………………… $CALL Extra Foot Pedal w/Keylock Switch …………………………… $1,000.00 Increase Stroke Length ……………………………………………. P.O.R. Increase Throat Gap or Increase Open Height 50, 70, 95 Ton ………….. $1,000.00 per inch 120, 160, 190 Ton ……. $1,800.00 per inch 240 Ton ……………………. $2,000.00 per inch Micrometer Precision Gauge Unit (2 Required) ……. $CALL Oil Cooler (Kidney Loop System) ……………………………… $7,500.00 Palm Buttons/Foot Control System (Hand buttons to preset height, stop and hold, foot to continue to shut height) …………………………………………$3,100.00 Power Front Reading Backgauge with 5 Station NC “GO-TO” Positioner on Pendant … $CALL Power Ram Adjustment with 5 Station NC “GO-TO” Positioner on Pendant …. $CALL Ram Machining ………………………………….. $1,900.00 Ram Stop Control (1/4″ above die) ………….. P.O.R. Special Application Tooling ………….. $CALL Special Paint Colors …………………….. P.O.R. T-Slots ………………………………………….. $300.00 per foot BACKGAUGES AND RAM CONTROL: *Manual Front Reading Backgauge (24″) w/Mechanical Readout ….. $3,500.00 Power Front Reading Backgauge w/5 Station NC “Go To” Positioner on Pendant …… $5,500.00 Power Ram Adjustment w/5 Station NC “Go To” Positioner on Pendant ……. $2,500.00 Extra Length on Backgauge ……………………….. $1,000.00 CNC Backgauge …………………………………………. P.O.R. Rigging, Lagging, Leveling and Electrical Hook Up is Customers Responsibility ASK ABOUT OPTIONS NOT LISTED. ALL PRICES SUBJECT TO CHANGE WITHOUT NOTICE. NOTE: DIE RISERS NOT FURNISHED *RECOMMENDED OPTIONS
