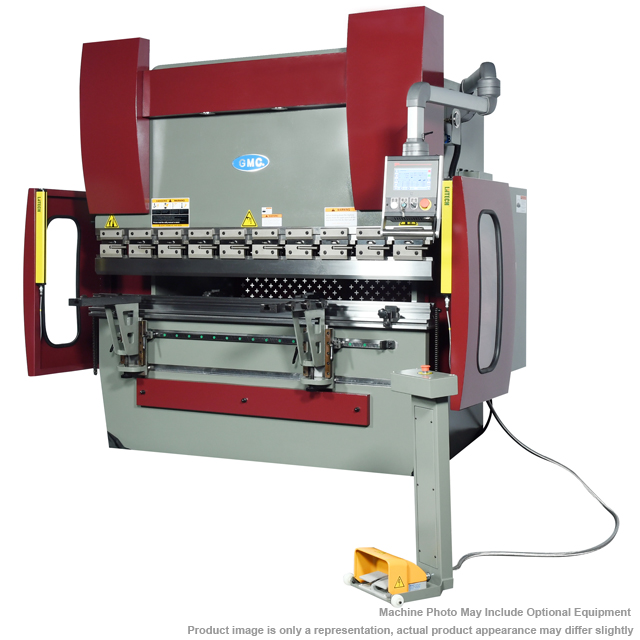

GMC HPB-7006CNC 70 Ton x 6 ft CNC Press Brake w/2-Axis ESA S625 CNC Controller
No reviews yet
Description Our 70 ton press brake are equipped with a two axis ESA Control. This is a Taiwan quality machine, designed in the USA. With it’s rugged steel framework, quality hydraulic and electronic components, makes this press brake a great addition to any shop. ISO 9001 certified Meet OSHA and CE safety standard ESA (Italy) Model 625, 2 Axis CNC Controller Die library, offline programming, stores thousands of programs Programmable Angle/ Angle Correct Germany Rexroth hydraulic system Yaskawa Servo motor and Drives Schneider electrical components Hydraulic crowning All steel construction for maximum rigidity Hydraulic logic system centrally located and quiet Safety type foot pedal with handle and E-stop switch Safety 24V low voltage & overload protection One year industrial warranty for parts DISCLAIMER: Please note this machine is incompatible with the use of a rotary phase converter. Any attempt to purchase, install, or employ one, whether carried out by you or a professional service company, will automatically void the warranty. It is crucial to understand that any such actions are entirely the responsibility of the buyer. This disclaimer is intended to clearly convey that the utilization of a rotary phase converter to power or operate this machine is not supported. STANDARD EQUIPMENT: ESA (Italy) Model 625, 2 Axis CNC Controller (2) 24″ front support arms, Quick Release for easy positioning Quick release segmented (American Style Tooling) punch holder Full Length Gooseneck Punch HRC 50 (Punch is rated for 10 gauge and lighter .062” radius punch) Additional Tooling may be required for thicker materials and purchaser’s specific products/parts – Ask your dealer for custom tooling quotes) Full Length Vee Die with 6 assorted sizes HRC 50 Lntech Light Curtain System Side and Back Safety Fence Movable Foot Pedal with Estop meet OSHA safety standard SPECIFICATIONS: Maximum pressure: 70 Tons Bending length capacity: 80″ (6′ 8″) Distance between uprights (housing): 63″ Ram Stroke travel: 6″ Cylinder travel adjustment, max: 3-1/8″ Table width: 6″ Distance between table and ram: 15-1/4″ Max Stacked Tooling Height: 8-1/2″ Throat Depth: 10″ Back Gauge Distance: 24″ Back Gauge Repeatability: .0039″ Y Axis Repeatability: .0039″ Approach speed, inch / second: 3.14″ Working speed , inch / second: 0.35″ Return speed , inch / second: 2.36″ Main motor: 7-1/2 HP, 3-Phase, 30 AMP, Prewired: 220VAC ( /- 10%) Servo motor for back gauge: 1 HP, 3 Phase, 220VAC ( /- 10%) Servo motor for bending angle setting: 1/2HP, 3 Phase, 220VAC ( /- 10%) Hydraulic oil tank capacity: 52 Gal. Recommended Oil: Hydraulic Oil Shell #68HD Machine weight: 8,650 lbs. Machine size, L x W x H: 103 x 63 x 87 in. Shipping Dimensions: 109 x 66 x 98 in. OPTIONAL ITEMS: For ¼” tooling: Need single V die holder………call for pricing 4′ of punch and 2.5” single V Die , Flame hardened with safety tang….call for pricing On-site training, one day…………………………….. call for pricing Specifications are subject to change without notice. NOTE: Data is provided by the manufacturer. WARRANTY: 1 YEAR – Parts
