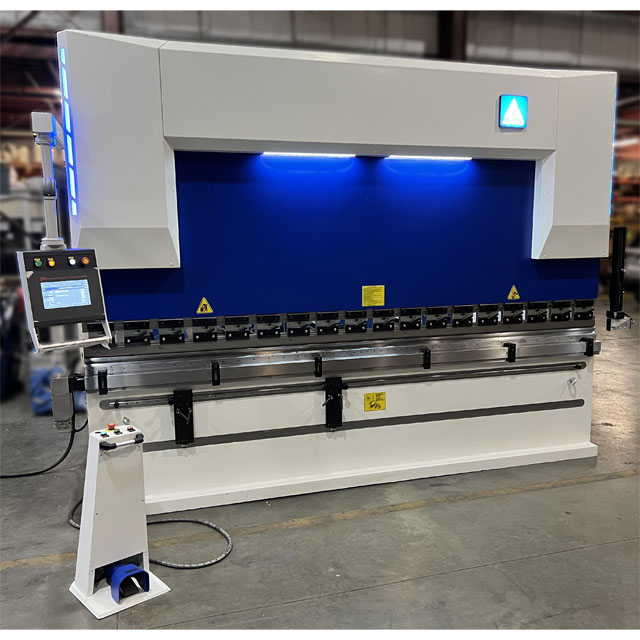

PRIMELINE S200B12 Hydraulic CNC Press Brake

Description PRIMELINE 200 Ton x 12 ft CNC Hydraulic Press Brake S200B12 DNC Servo Hydraulic Press Brake Forming System, Motorized WILA Crowning, CE Manual AKAS Safety, 8” Table, ESA 630 Control, 85ᵒ punch and die. Punch tip radius 0.8mm FOB Warehouse MD Frame is a robust, welded fabrication minimizing deflection and crowning issues Extremely rigid upper beam for minimum deflection Machine is flush floor mounted; no pit required Multiple hard-chromed cylinder system Built-in overload protection Deep gaps inside frames for bending longer lengths with larger flanges Quick approach and return speeds The parallelism between moving upper beam and fixed lower beam during descent and ascent is ensured by two servo-valves electrically controlled by DNC (axes Y1 and Y2) Two linear encoders located on each end of the upper beam make the measuring of the ram position. As the reference is always measured in relation to the bed, the ram position on bending depth is independent from the work length Slow approach in manual mode for tool alignment Upper moving beam guided at four points with adjustable gibbs made of self-lubricated material and with maintenance free bearings Easy adjustment of the bending depth under load over the plate being bent, with programming in 0.0004″ (0.01 mm) increments. The figure reached with the adjustment is easily entered into the computer tech Adjustable stroke of hydraulic cylinders for maximum machine and tool flexibility Choice of a narrow or wide bed bolted to the lower beam to allow flexibility with tooling Fast cycle time/quick approach and return speeds Hydraulic drive system, designed by Rexroth, complete with hydraulic fluid Three modes of operation – Manual, Semi-automatic and Automatic Ergonomically designed control panel for more convenient operator access Motor and controls. Electrics for 3/60/220/440. Low voltage at the controls. Emergency stop palm button on foot pedal assembly. Key-lock switch for ON/OFF for the power supply and for selector of modes of operation. Hydraulic fluid One instruction manual, one programming manual, one operation and service manual STANDARD EQUIPMENT: ESA 630 Graphic CNC Y1, Y 2 CNC Crowing Laser Guards Full length precision ground punch and 4 way V die Segmented and 4 way / Single V Die holder 29” Backgauge, highspeed servo OPTIONAL ITEMS: On site training – add $5,950.00 ITEM: 200 Ton x 12′ CNC Hydraulic Press Brake MANUFACTURER: PRIMELINE MODEL: S200B12 Item/Model: PRIMELINE S200B12

Because it's a high-quality product, meticulous attention to detail is required during the manufacturing process.
