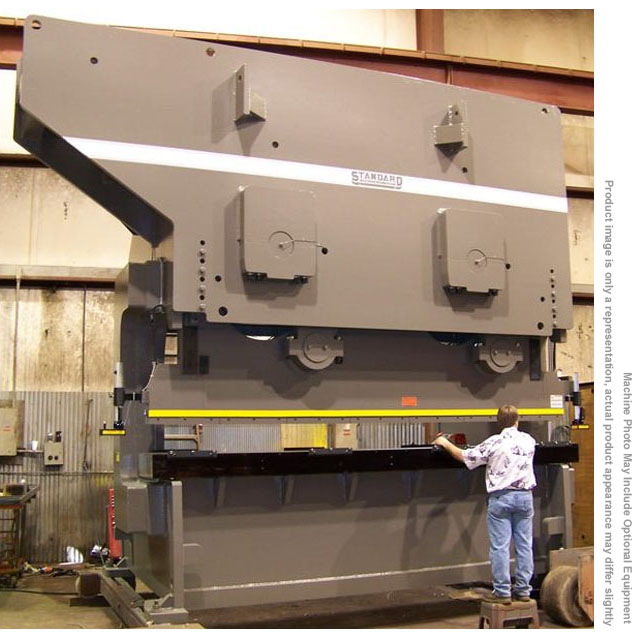

STANDARD INDUSTRIAL AB1000 1000 Ton x 14-20 ft Hydraulic CNC Press Brakes

Description Standard Industrial is 100% Owned, Operated and Manufactured In The U.S.A. Full-Tonnage Throughout Stroke Typical 30 Year Lifetime, Plus a Lifetime of Parts and Service Availability Solid, Non-Moveable Lower Beam Substantially More Rigid Than “Bed Level” press Brakes ,- .001″ Ram Repeatability Off-center loading Capability The Most Heavy Duty Press Brake Built In The U.S.A. Extremely Heavy-duty lower beams allowing the least amount of deflection. Less Deflection = Longer Tool Life = More profitability Precision mechanical in-line depth stop as back-up for any CNC control Single Cylinder Hydra-Mechanical Drive System New Manifold Based Hydraulic System *Contact Sheet Metal Machines if overall heights are critical. *Bed heights can be lowered with full machine pits *Contact Sheet Metal Machines for specifications on other size brakes FOR MORE FEATURES AVAILABLE – CONTACT US SPECIFICATIONS: MODEL AB1000-14 AB1000-16 AB1000-20 Form/Punching Tonnage 1000/660 Bed Ram Length 14′ 16′ 20′ Distance between Housings 12′-5″ 14′-5″ 18′-5″ Open Height 24″ Stroke Length 12″ Closed Height 12″ Below Grade Yes Approach Press Return 100 h.p. 45-17-80 Throat Depth 10″ Bed Width 14″ Weight (prox. lbs.) 160,000 170,000 197,000 *Contact Sheet Metal Machines if overall heights are critical. *Bed heights can be lowered with full machine pits *Contact Sheet Metal Machines for specifications on other size brakes Specifications are subject to change without notice. NOTE: Data is provided by the manufacturer. WARRANTY: 5 YEAR – STANDARD Parts & Limited Labor OPTIONAL ITEMS: CALL FOR PRICE Ram Control and Safety Systems: Hand/Foot Safety Sequence With Footswitch – System that allows the operator to use a footswitch after the ram hits the slow speed. Light Curtain Safety Barrier With Footswitch – Infrared light system that allows the use of a footswitch during all points of operation. Extra 2 Hand Control Station – Extra 2 hand pedestal station for 2 man control (one pedestal is standard). Extra Footswitch – For 2 man control in use with Hand/foot sequence or light curtain system. Low Speed Retract – Slows the return speed of the ram down considerably when handling heavy, long work pieces, recommended for large press brakes – Can be turned on/off for small work. 4 Position In-Line Depth Stop – Pre-set up to 4 different ram depths with micrometer precision and select all four ram depths from 4 position selector switch mounted on pedestal. Auto Return Of Ram – Ram automatically returns to top of stroke after completion of stroke. Adjustable Pressure Sensitive Ram Reversal – Protect dies and work-pieces by setting a maximum pressure and once the pressure is achieved, the ram reverses. Programmable Ram Control –Set the Up limit, Speed change, the Lower limit and many other features with a PLC (Y axis) control. Lube Systems: Manifold Centralized Lube System – All lube points are brought to a centralized location on the back of the brake for incredibly simple and fast maintenance. Automatic Lubrication System – All points are automatically lubricated with a powered pump through an air operated, timed system. Bed And Ram Extensions: 10″ Wide x 10’ Long Removable Flanges For Bed And/Or Ram – 10″ wide precision machined, removable bed and/or ram extensions x 10’ in length between the end frames (NOTE) Must be ordered with machining of bed and ram for flanges. Machining For 10″ Wide x 10’ Long Removable Flanges – Precision machining to the bed and/or ram required to mount the machined flanges. Permanent Bed And Ram Flanges – Non-removable, permanent flanges for bed and/or ram used for wide dies and pressing applications (NOTE) Typical press brake tooling cannot be used w/ wide bed and ram. Horns For Bed And Ram – 12″ long extensions of the bed and ram designed to lengthen the bed and ram but not the distance between housings. Other Available Options: Decompression System For Bottoming Applications – Reduces shock to hydraulic system that occurs during bottoming applications. Die Roll Bars For Four Way Dies – Convenient hooks in the ram that aid in turning four way dies. 24″ T-Slot Support/Gauging Arms – Heavy duty T-slotted arms that provide support for work pieces and allow operators to set stops in t-slots for gauging purposes. Also available with scales. Drop Stops For T-Slot Support Arms – Gravity stops that allow operators to easily gauge material. 5/8″ T-slot Across Front Edge Of Brake Bed – T-slot across edge of bed to move arms left to right. Extra Open Height – Increases the open height of ram (NOTE) Does not increase stroke length. Extra Stroke – Increases overall ram stroke (NOTE) Does not increase open height. Extra Throat Depth – Increases overall throat depth measured from the centerline of bed. Optional Controls and Gauging: CONTACT US CROWNING SYSTEMS, TOOLING AND ACCESSORIES: CONTACT US
