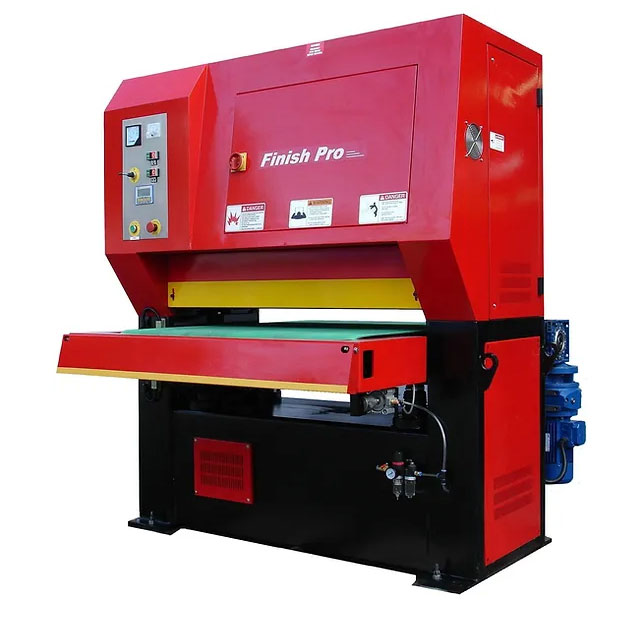

GMC FP-4075 40×75 in. Heavy Duty Metal Wide Belt Sander

$ 41.96

Category: Side Panels

Description SPECIFICATIONS: Max. Part Width 40 in. Abrasive Belt Size 40 x 75 in. Contact Roller Size 8 in. Dia. Passline Height 31-37 in. Max. Thickness Capacity 6-1/8 in. Min. workpiece length Min 8 in., need a fixture for smaller parts Max. workpiece weight 375 lbs. Conveyor Drive Speeds 8-40 FPM Infeed Conveyor Length 20 in, Dust Collector Capacity 1,800 CFM Main Motor 15 HP, 3 Phase Prewired: 230VAC Optional: 460VAC Conveyor Motor 1.5 HP, 3-Ph Prewired: 230VAC Optional: 460VAC Table Lifting Motor 1 HP, 3-Ph Prewired: 230VAC Optional: 460VAC Net Weight, approx. 4,650 lbs Shipping Weight 4,859 lbs. Machine Dimensions LxWxH Shipping Dimensions: 76 x 88 x 81 in. 73 x 67 x 86 in. FEATURES: Our 40″ Metal Wide Belt Sander are great for deburring and finishing parts in the production and manufacturing industries. Save time with our effortless belt changing system. Avoid shutting down for hours to simply replace your metal wide belt. GMC’s Finish Pro metal wide belt sanders for deburring and finishing parts in the production and manufacturing industries. 15HP, 230V / 460V, 3PH. Abrasive belt size: 40” x 75” Motorized Table Lift with computer display Variable Speed Conveyor Conveyor Forward & Reverse Belt Safety Overtravel Switches Electronic Eye Belt Tracking. Belt tracking adjusting lever (Belt Trimmer) to Re-adjust the tracking system when running extremely out of parallel belts 4-Jackscrew Table Support Double Infeed & Outfeed Pinch Rolls with protective guards Conveyor Belt Tracking System Safety System with Disc Brake. Air operated disc brakes to stop sanding head in 3-5 seconds in the even of loss of air pressure or activation of any emergency stop device Table Height Digital Readout Load Meter indicates percentage of full motor loads Belt change door electrically interlocked for safety purpose Air tensioning of belt for accurate tensioning & compensation of belt stretch Quick release sanding head support for fast belt change Dust collection hood with 6” outlet is located adjacent to abrasive head in sanding area Emergency stops from almost any point Noise level bellows 82 dba Operation manual, control tags, danger signs, and warning labels in English on machine 208/230V, 3-Phase One year Industrial Warranty for parts NOTE: Prices are for 208-230 VOLTS Total amps 60 @ 230/3/60 COMPRESSED AIR REQUIRED: 2 CFM @ 90 PSI CAUTION: If fire hazardous materials, such as aluminum, titanium, magnesium, etc., are to be processed, a dust collection system that conforms to National Fire Protection Association (NFPA) should be used. This machine is compatible with a phase converter. Please note that the phase converter must be installed by GMC Machine Tools to ensure warranty coverage. Once the machine is received and the phase converter is installed by us, it will be ready for use. For more information or if you have any further questions or need assistance, feel free to contact us. FREQUENTLY ASKED QUESTIONS What is the minimum size part this machine is capable of handling? The minimum length is 8″ without fixture. There is no minimum size required with the custom made fixture. The minimum thickness is 1/16″ Do you sell replacement belt sanding belts? Unfortunately, we do not stock belts. We may refer you to your favorite industrial supply store such as: Grainger, MSC Industrial, McMaster Carr, etc. We will answer any questions that you may need addressed and provide you and your team with the knowledge and confidence to properly operate the machine(s). Please contact our office today for pricing 386-304-3720 Do you offer on-site training? Please contact our office today for pricing 386-304-3720 OPTIONAL ITEMS – CALL FOR PRICE: WET DUST COLLECTORS: use a water filled tank through which all grinding dust is pulled by a motor driven impeller fan. Particles sink to the base of the tank where they can easily be removed by raking into a provided container. Normal tap water is used, there are no filter bags to be changed. Water level is automatically controlled when unit is connected to a water supply. All units are equipped with explosion relief door and sound silencer. *WDC-2100: Wet Dust Collector , 5 HP, 2,100CFM (it is demo wet collector, all stainless steel) *HDDP-2560: Heavy Duty Ducting Package *ST: Service Engineer for Start-Up and On-site Training (plus travel expenses)

GMC FP-4075 40×75 in. Heavy Duty Metal Wide Belt Sander
