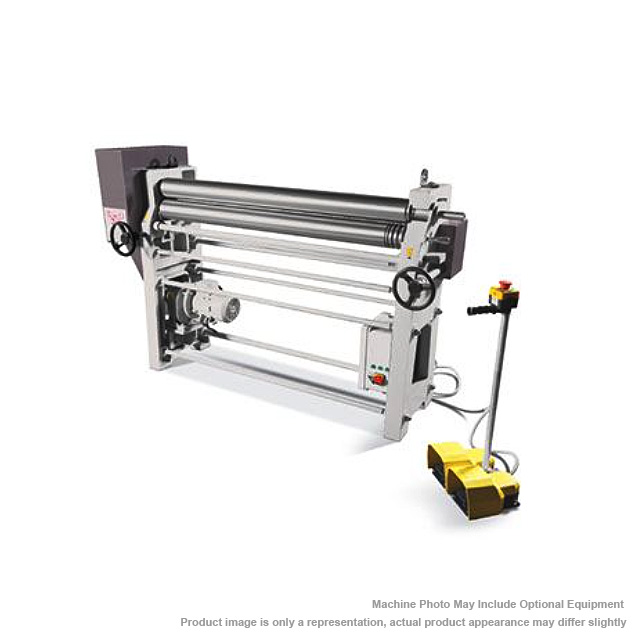

COLE-TUVE MSM 1270-90 4 ft x 12 ga Slip Roll – Options Available

Description Their design has gained worldwide acceptance and, although used for bending lighter sheet materials, they are built for durability and efficiency while still being easy to operate and low in cost. Strong cast-iron frames are used on all sizes for rigidity and stability. The roll shafts are journaled in long-life bronze bearings. The upper and lower rolls are driven by a brake-motor through a heavily proportioned gear assembly, producing a single rolling speed and effecting prompt stopping of the rotation of the rolls. The lower front roll, which is used for clamping the work-piece, and the rear roll, which is used for setting the bending radius, are each adjusted by a single handwheel. Both handwheels are conveniently located for ease of operation. The use of a single handwheel for each adjustment avoids the operator’s having to move from one end of the machine to the other to adjust each roll. The rear roll can be readily tilted to facilitate the cone bending procedure. A secure locking device keeps the upper roll in proper position during rolling and is easily released to allow the roll to be swung out for removal of the rolled cylinder. A moveable foot control on a trailing lead adds to convenience and ease of operation by allowing the operator to position himself most advantageously. The rolls are grooved for three sizes of round bar. The machine needs only to be anchored and connected to the power supply and is ready to operate. Brake Motor Handwheels for Roll Adjustments Lockable Swing-Out Upper Roll 3 Grooves for 3/8″, 1/2″, and 5/8″ Round Bar Cone Bending Attachment Scale to Indicate the Positions of the Rear Roll Moveable Foot Control with Emergency-Stop Palm Button Electrics for 3/60/220/440 Low Voltage at the Controls SPECIFICATIONS: CALL FOR PRICE MODEL Capacity Diameter of the Rolls Motor HP Weight Lbs. MSM 1050-90 3′ x 11 ga. 3.54 in. 1-1/2 1012 MSM 1050-100 3′ x 10 ga. 3.94 in. 1-1/2 1100 MSM 1270-90 4′ x 12 ga. 3.54 in. 1-1/2 1166 MSM 1270-100 4′ x 11 ga. 3.94 in. 1-1/2 1166 MSM 1550-90 5′ x 14 ga. 3.54 in. 1-1/2 1496 MSM 1550-100 5′ x 12 ga. 3.94 in. 1-1/2 1540 MSM 2050-100 6′ x 16 ga. 3.94 in. 2 1870 Specifications are subject to change without notice. NOTE: Data is provided by the manufacturer. WARRANTY: 1 YEAR – Parts OPTIONAL ITEMS: CALL FOR PRICE Electronic Digital Readout (LED) for the Positions of the Rear Roll Induction Hardened Rolls

Because it's a high-quality product, meticulous attention to detail is required during the manufacturing process.
