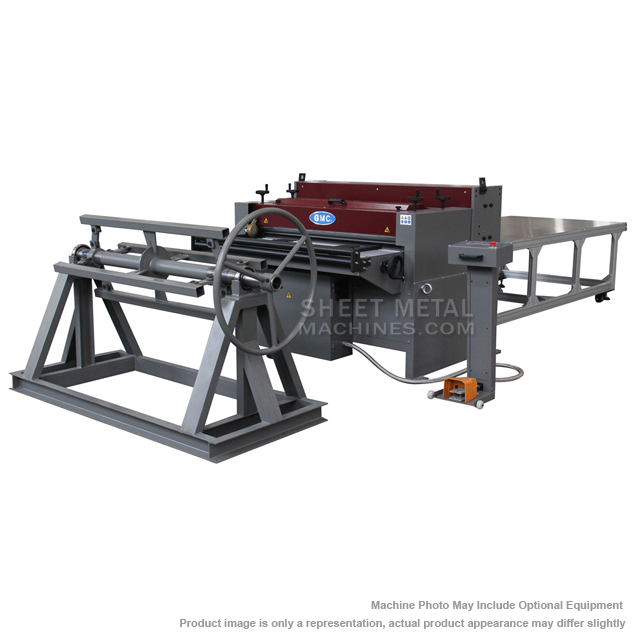

GMC 48 in. x 16 Ga Gang Type Metal Powered Slitter w/Programmable Cut to Length 220v 1-ph | PS-4816GT

Description 48″ x 16 Ga, Gang Type Metal Slitter, Powered Slitter, 220V,1 phase with NC programmable cut to length, 5″ touch screen ISO 9001 certified American design and Taiwan quality machine Slit and cut to length in one unit NC programmable cutting length, 100 job memory feature Single cycle Mode-manual shearing with foot pedal when programmed length is reach for each cut. Auto cycle mode-shearing will auto cycle the programmed cut lengths. Easy removal of slitting blades for cut to length operations without slitting. Feed the sheet metal from the manual decoiler to cut to length without slitting blades 5 in. Omron touch screen 3-1/8 in. diameter shafts mounted in precision ball sealed bearings Slitting blades are dual edged Safety type foot pedal control One year warranty for parts STANDARD EQUIPMENT: Comes with 6 sets of slitting blades to slit max 7 trips, change it to 7 strips Full length finger guard Removable safety foot pedal control One set of upper & lower shearing blades SPECIFICATIONS: Slitting and shearing capacity: width x thickness mild steel (hot roll) Tensile 60,000PSI 48 in. x 16 ga stainless steel and cold roll, tensile 85,000PSI 48 in. x 20 ga soft aluminum, tensile 28,000PSI 48 in. x 12 ga min. thickness 30 ga Max. slitting length 20 ft, NC programmable Shearing blade length 50 in. Shearing blade rake angle 2 degree Infeed/outfeed table height 32 in. Slitting blades 6 pairs Slitting feed speed 57 FPM Shearing stroke 35 Slitting capacity: Number of cuts/strips 16Ga mild steel 1 cut / 2 strips 18Ga mild steel 2 cuts / 3 strips 20Ga mild steel 3 cuts / 4 strips 22Ga-24Ga mild steel 4 cuts / 5 strips 26Ga-30Ga mild steel 6 cuts / 7 strips Slitting motor 3HP, 220V,1-phase Shearing motor 3HP, 220V, 1-phase Amperage draw 25A Decoiler specifications manually operated For coil size 48” width, 20” coil ID, Max coil weight 2T = 4,500LBS, Dimensions: 71 x 32 x 39-1/2 in. Machine weight 2,850 lbs. Shipping weight 2,950 bls. Machine Dimensions 68 x 63 x 48 in. Shipping Dimensions 70 x 65 x 51 in. Specifications are subject to change without notice. NOTE: Data is provided by the manufacturer. WARRANTY: 1 YEAR – Parts OPTIONAL ITEMS: FT-10: 10ft Outfeed table #FT-10, 121”x49”x32” LWH: $3,750.00 FT-10: 10ft Infeed table #FT-10 (when purchase Powered Slitter # PS-4816GT itself): $3,750.00 DC-4820-2T: Decoiler, 48” wide x 20” coil ID, 2Tons=4,500LBS max coil weight: $2,750.00 Extra set of slitter blades for PS-4816GT: $2,950.00 Extra set of shear blades: $1,950.00 Package: The line of Power Slitter includes: 1 set Power Slitter # PS-4816GT, 1set outfeed table, and 1 set Decoiler #DC-4820-2T: $25,550.00
