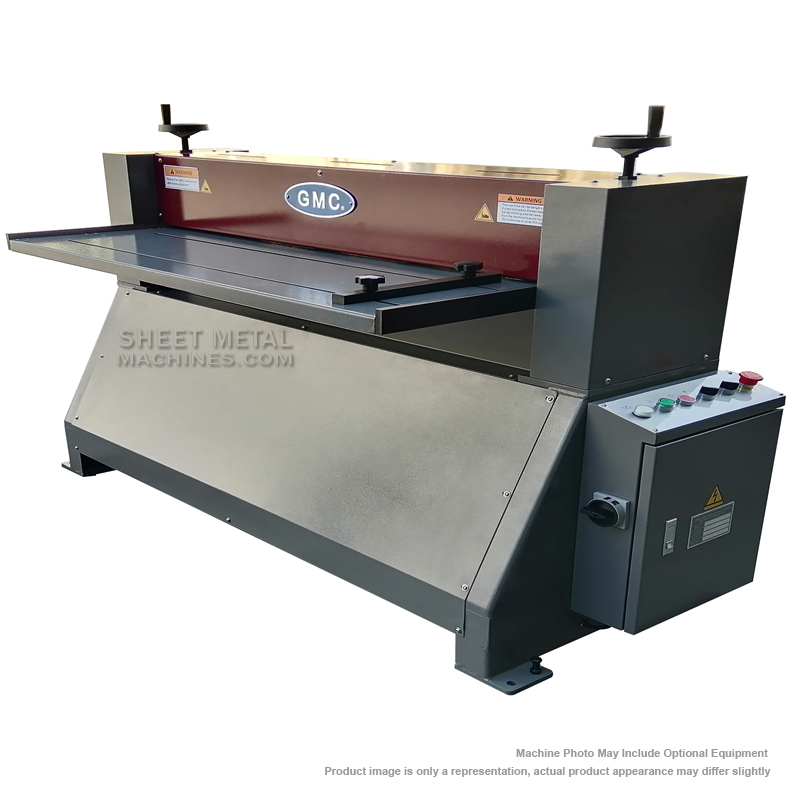

GMC PS-4816D 48 in. x 16 Ga Deluxe Gang Type Sheet Metal Powered Slitter | 110v
★★★★★No reviews yet
Categories: , Welding Positioners & Welding Tables, Uncategorized
Description ISO 9001 certified American design and Taiwan quality machine Gang slit from 16Ga to 30Ga Easy slide away of slitting blades for cut to length operations without slitting. feed the sheet metal from the manual decoiler to cut to length without slitting blades 3″ diameter shafts mounted in precision ball sealed bearings 4 sets of slitting blades with stripper rings to prevent material twisting Forward and reverse control with electrical cabinet One year warranty for parts STANDARD EQUIPMENT: Comes with 4 sets of slitting blades to slit max 4 trips Full length finger guard SPECIFICATIONS: Slitting and shearing capacity: width x thickness mild steel (hot roll) Tensile 60,000PSI 48 in. x 16 ga stainless steel and cold roll, tensile 85,000PSI 48 in. x 20 ga soft aluminum, tensile 28,000PSI 48 in. x 12 ga min. thickness 30 ga Max. slitting length 20 ft Max Sheet Material Width 49 in. Shaft for slit blades 3 in. Infeed/outfeed table height 33-1/2 in. Slitting blades 4 pairs Slitting feed speed 57 FPM Slitting capacity: Number of cuts/strips 16Ga mild steel 1 cut / 2 strips 18Ga mild steel 1 cuts / 2 strips 20Ga mild steel 2 cuts / 3 strips 22Ga-24Ga mild steel 3 cuts / 4 strips 26Ga-30Ga mild steel 4 cuts / 5 strips Slitting motor 1-1/2HP, 110v Amperage draw 18A Decoiler specifications manually operated For coil size 48 in. width, 20 in. coil ID, Max coil weight 2T = 4,500LBS, Dimensions: 71 x 32 x 39-1/2 in. Machine weight 1,012 lbs. Shipping weight 1,145 lbs. Machine Dimensions 68 x 27 x 47 in. Shipping Dimensions 75 x 34 x 49 in. Specifications are subject to change without notice. NOTE: Data is provided by the manufacturer. WARRANTY: 1 YEAR – Parts OPTIONAL ITEMS: FT-10: 10ft Outfeed table #FT-10, 121”x49”x32”: $2,750.00 FT-10: 10ft Infeed table #FT-10, 121”x49”x32”: $2,750.00 DC-4820-2T: Decoiler, 48” wide x 20” coil ID, 2Tons=4,500LBS max coil weight: $2,750.00 Extra set of slitter blades for PS-4816D: $1,950.00
