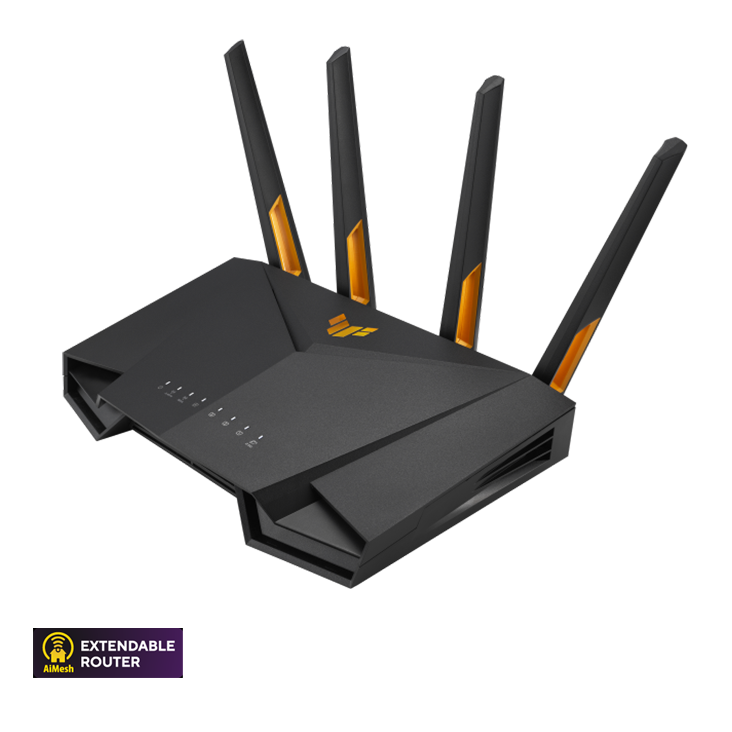

TUF Gaming AX4200 Dual Band WiFi 6 Gaming Router

Network Standard IEEE 802.11a IEEE 802.11b IEEE 802.11g WiFi 4 (802.11n) WiFi 5 (802.11ac) WiFi 6 (802.11ax) IPv4 IPv6 Product Segment AX4200 ultimate AX performance: 574 3603 Mbps WiFi Data Rate 802.11a : up to 54 Mbps 802.11b : up to 11 Mbps 802.11g : up to 54 Mbps WiFi 4 (802.11n) : up to 450 Mbps WiFi 4 (802.11n) (256QAM) : up to 600 Mbps WiFi 5 (802.11ac) : up to 2600 Mbps WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps WiFi 6 (802.11ax) (5GHz) : up to 3603 Mbps Antenna External antenna x 4 Transmit / Receive 2.4GHz 2×2 5GHz 3×3 Processor 2.0 GHz quad-core processor Memory 256 MB Flash 512 MB RAM Boosts Speed OFDMA (Orthogonal Frequency Division Multiple Access) Beamforming: standard-based and universal 1024-QAM high data rate 20/40/80/160 MHz bandwidth Operating Frequency 2.4GHz / 5GHz Operating Mode Wireless router mode Access point mode Media bridge mode I/O Ports RJ45 for 2.5 Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 4, USB 3.2 Gen 1 x 1, Buttons WPS Button, Reset Button, Power Button LED Indicator Power x 1 2.4G x 1 5G x 1 LAN x 4 WAN x 1 Power Supply AC Input : 100V~240V (50~60Hz) DC Output : 12 V with max. 2.5 A current Package Content TUF Gaming AX4200 Dual Band WiFi 6 router RJ-45 cable Power adapter Quick Start Guide Warranty card Product Weight (g) 547.4 g Product Dimensions 256 x 178 x 186 mm AiMesh AiMesh • Primary AiMesh Router • AiMesh Node Game Game Boost / Acceleration Mobile Game Mode OpenNAT (Game Profile) Parental Control “Allow you to block access to unwanted websites and apps.” Safe Browsing Customized Internet Schedule Guest Network “The Guest Network provides Internet connection for guests but restricts access to your local network.” • Maximum Guest Network Rule : 2.4GHz x3, 5GHz x3 Guest Network Connection Time Limit Security AiProtection WPS support, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise WPS DNS-over-TLS SSH Security Scan Firewall • Maximum Firewall Keyword Filter : 64 • Maximum Firewall Network Service Filter : 32 • Maximum Firewall URL Filter : 64 AiProtection • Router Security Assessment • Malicious Site Blocking • Two-Way IPS • Infected Device Prevention and Blocking VPN VPN Client L2TP VPN Client Open VPN VPN Client PPTP VPN Client WireGuard VPN Server IPSec VPN Server Open VPN VPN Server PPTP VPN Server WireGuard VPN Fusion Traffic Control Adaptive QoS • Bandwidth Monitor • Bandwidth Limiter — Maximum Bandwidth Limiter Rule : 32 Traditional QoS — Maximum Traditional QoS Rule : 32 Traffic Monitor • Real-time Traffic Monitor • Wired Traffic Monitor • Wireless Traffic Monitor Traffic Analyzer • Traffic Analysis Period : Daily, Weekly, Monthly • Website History WAN Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP Dual WAN WAN Aggregation 3G / 4G LTE dongle Port forwarding • Maximum Port Forwarding Rule : 64 Port triggering • Maximum Port Triggering Rule : 32 DMZ DDNS NAT Passthrough : PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, SIP Pass-Through, PPPoE relay LAN DHCP Server IGMP Snooping IPTV LAN Link Aggregation Manually Assign IP Address • Maximum Manually Assign IP Address Rule : 64 Wake on LAN (WOL) Wireless UTF-8 SSID WiFi MAC Address Filter • Maximum MAC Filters : 64 Wireless Scheduler Airtime Fairness RADIUS Client Universal Beamforming Explicit Beamforming USB application File System : HFS , NTFS, vFAT, ext2, ext3, ext4 Safely Remove Disk AiCloud Download Master AiDisk Media Server Time Machine Samba Server FTP Server Shared Folder Privileges Administration Configuration Backup and Restore Diagnosis tools Feedback System System Log New Device Connect Notification Login Captcha Connection Diagnosis Auto Firmware Update
