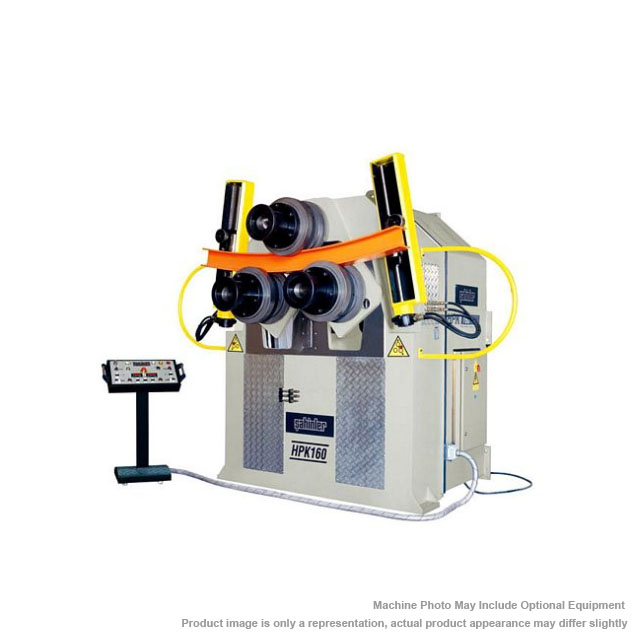

COLE-TUVE HPK-160 6 x 6 x 3/4 in. Hydraulic Pyramid Angle, Pipe and Shape Bending Roll

Description All Three Rolls Powered by Hydro-Motors and Planetary Gearboxes Rolls are Hardened Roll Shafts are Special Steel, Hardened and Ground Standard Rolls Handle Many Shapes 3-Axis Hydraulic Leg-In Guide Rolls Two Rolling Speeds Two-Electronic Digital Readouts (LED) Horizontal and Vertical Working Positions Mobile Control Console with Push Button Controls and Digital Readouts SPECIFICATIONS: Angle iron, leg-out 6″ x 6″ x 3/4″ø158″ Angle iron, leg-in** 5-1/2″ x 5-1/2″ x 9/16″ ø197″ Flat bar, Easy Way 10-1/2″ x 2″ø59″ Flat bar, Hard Way 6″ x 1-3/8″ø99″ “T” iron, leg out 6″ x 5/8″ø79″ “T” iron, leg in 5″ x 5/8″ø99″ Square bar 3-1/2″ø59″ Round Bar (SP) 3-1/2″ø71″ Channel iron, leg out 11″ø79″ Channel iron, leg in** 11″ø119″ Pipe 6″ Sch. 40ø138″ Round Tubing (SP) 7″ x 5/32″ø237″ Square Tubing** 5″ x 1/4″ø158″ Rectangular Tubing** 6″ x 2″ x 3/16″ø178″ Shaft Diameter 6.3 in. Dia. of Rolls, Upper/Lower 19.69 in. Driven Rolls 3 Rolling Speed, FPM 10 & 19-1/2 Rolls Adjustment Hydraulic Working Plane Horizontal/Vertical Motor HP 29 Approx. Weight – lbs. 23,540 Approx Overall Size 99 x 93 x 103 in. The shapes marked (SP) require optional special rolls. The other shapes can normally be rolled with the stardard rolls supplied with the machine. For production runs of some of those shapes, optional special rolls may be desirable. Rolling angle leg-in requires optional leg-in guide rolls and may require special rolls. Specifications are subject to change without notice. NOTE: Data is provided by the manufacturer. WARRANTY: 1 YEAR – Parts OPTIONAL ITEMS: CALL FOR PRICE Pipe/Tube/Shape Bending Rolls Beam-On-Edge Bending Device NC Control
