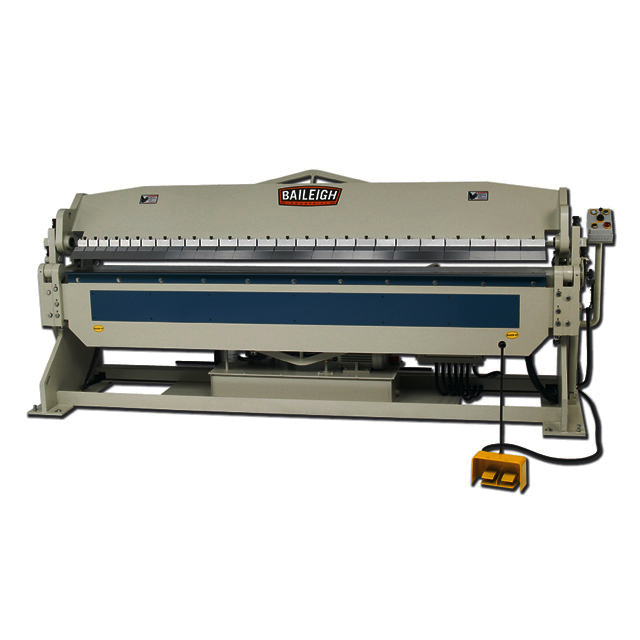

BAILEIGH BB-12010H 10 ft x 10 ga. Hydraulic Box and Pan Brake

Description This hydraulic box and pan brake will offer years of profitable service in any production shop. A fully-welded steel plate frame prevents ensures accuracy when bending heavy gauges. Bends 10 gauge mild steel and 12 gauge stainless steel or lighter. 10 feet (120”) bending length. Maximum bend angle of 135°. Industrial-grade hydraulic system does all of the following: Clamps the material at the beam, Lifts the leaf to the pre-programmed bend, Opens the beam when the bend is complete. Hydraulically-driven bend plate. 5 hp motor runs on 220-volt three-phase power. Made using only the most durable and high-quality electrical components. Includes 26 hardened fingers in assorted sizes (6 of 3″, 4 of 4″, 10 of 5″, and 6 of 6″); adjust them for different box and pan applications. Programmable auto-stop: just dial in the bend degree when using the hydraulic brake in manual or semi-automatic mode. Variable bend speed and clamping pressure adjustment give you fine control over the material. You can operate the machine by toggle from the console or by using the foot pedal controls. Semi-automatic bending mode with foot pedal control will increase productivity, reduce operator effort, and streamline production runs. Material thickness adjustment enables you to take on many gauges of sheet metal and easily switch between them. Greasable joints and filtered hydraulic system enable this sheet metal brake to work smoothly for years. Electro-welded steel frame, with massive truss rods, minimizes deformation when bending at full capacity. Extra-rigid base design supports the weight of heavier materials. SPECIFICATIONS: Length: 120″ Thickness (SS): 10 ga (12 ga) Bend Angle: 0 – 135 deg. Finger Size: 3″ / 4″ / 5″ / 6″ Beam Adjustment: 1″ Min Reverse Bend: .984″ Box Depth: 6″ Motor: 5 hp Power Requirement: 220V / 3-phase Shipping Dimensions (L/W/H): 153″ / 46″ / 71″ Shipping Weight: 7,700 lbs. Specifications are subject to change without notice. NOTE: Data is provided by the manufacturer. WARRANTY: 1 YEAR – Parts
