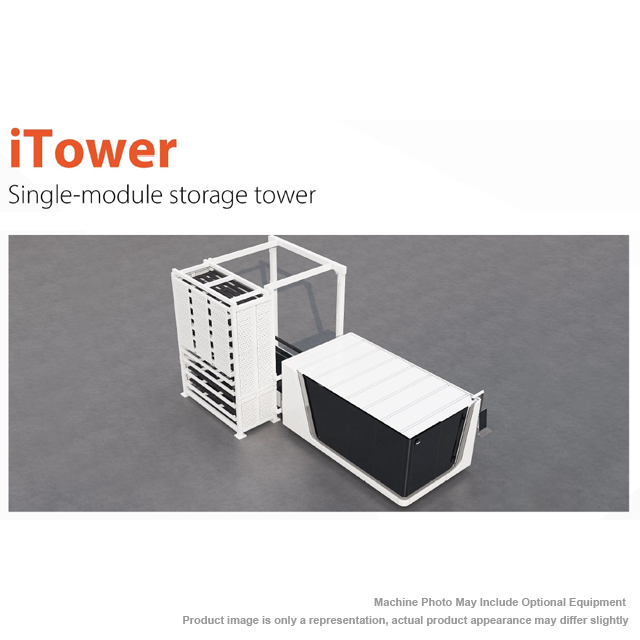

Description FOR MORE DETAIL GO TO PRODUCT FEATURES TAB iLift Back Bed Top Loading Device iTower Single-Module Storage Tower iLoader Automatic Loading Module iTrans Fully Automatic Loading and Unloading System iTransTower Intelligent Loading and Unloading, Compact Solid Storage Tower for Intelligent Production SPECIFICATIONS: MODEL iLift Applicable Model P3 Lifting Method Pneumatic Lifting Operation Method Foot Switch Maximum feeding plate size 10′ x 5′ / 5′ x 4′ / 3′ x 3′ 3000mm*1500mm / 1500mm*1200mm / 1000mm*1000mm Maximum loading weight 1,543 lbs. (700Kg) Z-axis travel 700mm R-axis travel 0~120° Z-axis positioning accuracy ±1mm R-axis positioning accuracy ±1° Module Dimensions 14′ x 5′ x 10.4′ 4250mm*1500mm*3180mm MODEL iTower Applicable Model P3 Lifting Method Sprocket, chain Operation Method Touch screen operation Maximum loading weight 661 lbs. (300Kg) Working Area 4′ x 4′ – 10′ x 10.4′ (1250mm*1250mm – 3048mm*1524mm) Module Dimensions 167″ x 59″ x 125″ 4250mm*1500mm*3180mm MODEL iLoader Applicable Model P3 Lifting Method Sprocket, chain Operation Method Key operation Working Area 10′ x 5′ / 5′ x 4′ / 3′ x 3′ 3048mm*1524mm / 1500mm*1200mm / 1000mm*1000mm Maximum loading weight 1,543 lbs. (700Kg) Z-axis travel 450mm R-axis travel 0~120° Z-axis positioning accuracy ±1mm R-axis positioning accuracy ±1° Module Dimensions 14′ x 5′ x 10.4′ (4250mm*1500mm*3180mm) MODEL iTrans Applicable Model P3 Working area 3′ x 3 – 10′ x 5′ (1000mm*1000mm – 3000mm*1500mm) Module dimensions 16′ x 13′ x 8.5′ (4800mm*4000mm*2600mm) Weight 10,582 lbs. (4800kg) Operation method Touch screen operation Maximum loading weight 900Kg Maximum thickness of feeding plate 25mm Maximum height of finished sheet 85mm MODEL iTrans Tower Applicable Model P3 Working area 3′ x 3′ – 10′ x 5′ (1000mm*1000mm – 3048mm*1524mm) Module dimensions 57′ x 33′ x 18′ (17450mm*10000mm*5600mm) Weight 26,456 lbs. (12000kg) Single layer bearing weight 3T Storehouse floor height 400mm X shaft stroke (feeding) 8000mm Operation method Touch screen operation Lifting method Sprocket, chain Specifications are subject to change without notice. NOTE: Data is provided by the manufacturer. WARRANTY: 1 YEAR – Parts OPTIONAL ITEMS: CONTACT US FOR MORE INFORMATION
