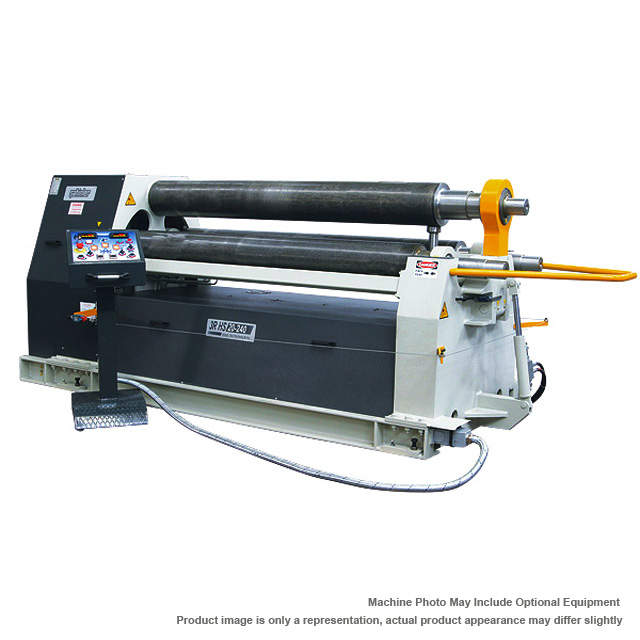

Description 3-Roll Drive Fully Hydraulic, Including Roll Adjustments and Drop End Induction Hardened Rolls Two Electronic Digital Readouts Cone Bending Attachment Orbital Movement for Side Rolls; Appropriate for Faster Rolling of These Capacities Mobile Control Console Extended Roll Shafts for Optional Bar/ Angle Rolls Pre-Arranged for Easy Retro-Fit of Optional Overhead and Side Support Devices SPECIFICATIONS: MODEL Capacities Circular Bending 5 x Top Roll Diameter Prebending 5 x Top Roll Diameter Prebending 1.5″ x Top Roll Diameter Circular Bending 1.5″ x Top Roll Diameter 3R HS 20-210 6′ x 1/2″ 3/8″ 5/16″ 3R HS 20-240 6′ x 9/16″ 1/2″ 3/8″ 3R HS 20-280 6′ x 11/16″ 5/8″ 1/2″ 3R HS 20-300 6′ x 7/8″ 3/4″ 5/8″ 3R HS 25-210 8′ x 3/8″ 5/16″ 1/4″ 3R HS 25-240 8′ x 1/2″ 3/8″ 5/16″ 3R HS 25-280 8′ x 9/16″ 1/2″ 3/8″ 3R HS 25-300 8′ x 11/16″ 5/8″ 1/2″ 3R HS 30-210 10′ x .276″ 1/4″ 5/32″ 3R HS 30-240 10′ x 3/8″ 5/16″ 1/4″ 3R HS 30-280 10′ x 1/2″ 3/8″ 5/16″ 3R HS 30-300 10′ x 9/16″ 1/2″ 3/8″ 3R HS 40-240 13′ x 1/4″ 3/16″ 5/32″ 3R HS 40-280 13′ x 5/16″ .276″ 3/16″ 3R HS 40-300 13′ x 3/8″ 5/16″ 1/4″ MODEL Overall Length of Rolls Top Roll Diameter Rolling Speed (FPM) Motor (HP) Dimensions LxWxH Weight (lbs.) 3R HS 20-210 80.7″ 8.27″ 16-1/2 10 134 x 48 x 52 9240 3R HS 20-240 80.7″ 9.45″ 16-1/2 10 134 x 52 x 57 11132 3R HS 20-280 80.7″ 11.03″ 16-1/2 10 162 x 56 x 61 16720 3R HS 20-300 80.7″ 11.82″ 16-1/2 14 162 x 59 x 61 17820 3R HS 25-210 100.4″ 8.27″ 16-1/2 10 154 x 48 x 52 10054 3R HS 25-240 100.4″ 9.45″ 16-1/2 10 154 x 52 x 57 12474 3R HS 25-280 100.4″ 11.03″ 16-1/2 10 182 x 56 x 61 16984 3R HS 25-300 100.4″ 11.82″ 16-1/2 14 182 x 59 x 61 20020 3R HS 30-210 122″ 8.27″ 16-1/2 10 176 x 48 x 52 11451 3R HS 30-240 122″ 9.45″ 16-1/2 10 176 x 52 x 57 14520 3R HS 30-280 122″ 11.03″ 16-1/2 10 203 x 56 x 61 18414 3R HS 30-300 122″ 11.82″ 16-1/2 14 203 x 59 x 61 21780 3R HS 40-240 161.4″ 9.45″ 16-1/2 10 215 x 52 x 57 16720 3R HS 40-280 161.4″ 11.03″ 16-1/2 10 243 x 56 x 61 23760 3R HS 40-300 161.4″ 11.82″ 16-1/2 14 243 x 59 x 61 25960 *All capabilities rated for mild steel upto 38,000 PSI, Yield Strength. Resulting flat ends at the leading and trailing edges of the plate are 2 to 2 1/2 times the plate thickness or less. Models rated at 2 times upper roll diameter. FPM – Feet Per Minute. HP is the nearest equivalent to the Kw of the motor of the machine. All data are approximate and subject to correction and/or change without prior notice. OPTIONAL ITEMS: CALL FOR PRICE Overhead Support Hydraulic Side Supports Variable Speed Ground And Polished Rolls For Special Jobs Bar / Angle / Pipe Rolls
