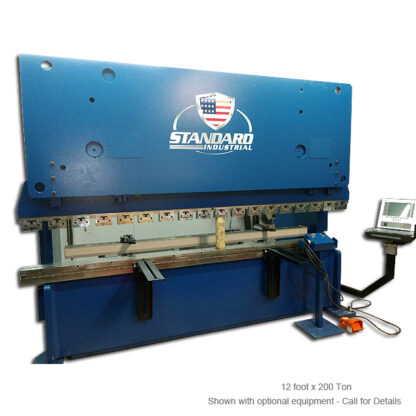

STANDARD INDUSTRIAL AB200 200 Ton x 12 ft Hydraulic CNC Press Brake

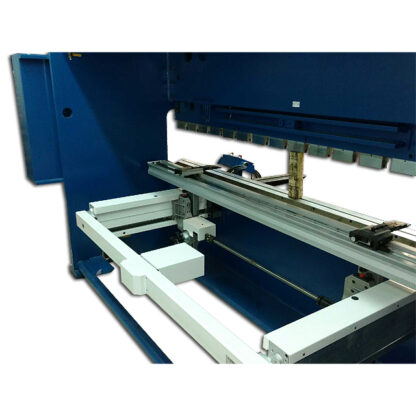

Description Standard Industrial is 100% Owned, Operated and Manufactured In The U.S.A. All Components Readily Available From Your Local Suppliers Groove in Bed and Ram Clamps for American Style Tooling Typical 20-30 Year Lifetime Hydraulic Tonnage Control Full Tonnage throughout Stroke Counterbalance for Punching Typical , – .001” Repeatability Full Tonnage across Bed and Ram Lifetime Telephone Support at No Charge (2) 24” Work Support Arms Manifold centralized lube system Hand/Foot sequence w/footswitch *Contact Sheet Metal Machines if overall heights are critical. *Bed heights can be lowered with full machine pits *Contact Sheet Metal Machines for specifications on other size brakes FOR MORE FEATURES: CONTACT SHEET METAL MACHINES SPECIFICATIONS: Tonnage Forming/Punching: 200/133 Bed Ram Length: 12′ Distance between Housings: 10′-5″ Open Height: 14″ Stroke Length: 8″ Closed Height: 6″ Below Grade: No Approach Press Return: 20 h.p. 107-20-139 Throat Depth: 10″ Bed Width: 5″ Weight (prox. lbs.): 32,000 *Contact Sheet Metal Machines if overall heights are critical. *Bed heights can be lowered with full machine pits *Contact Sheet Metal Machines for specifications on other size brakes Specifications are subject to change without notice. NOTE: Data is provided by the manufacturer. WARRANTY: 5 YEAR – STANDARD Parts & Limited Labor
