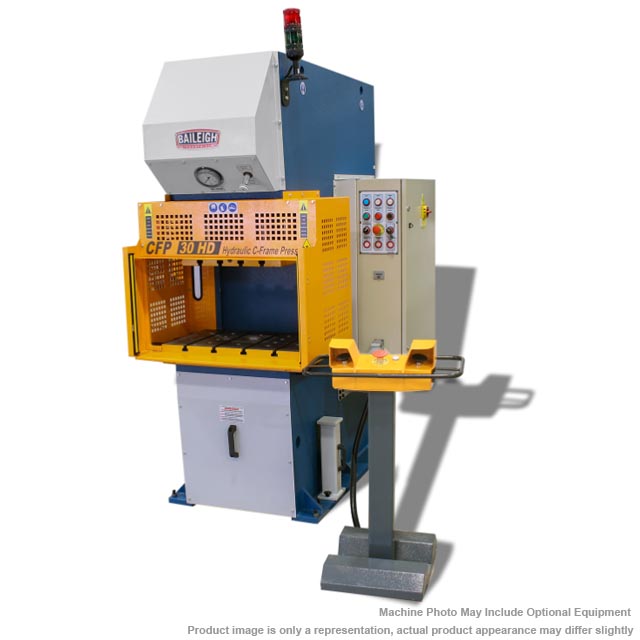

Description 30 tons C-frame press Perfect for pressing or straightening Fully welded construction Hydraulically operated Adjustable slide pressure Separate control pedestal 480V 3-phase SPECIFICATIONS: Down Force: 30 Tons Return Force: 9 Tons Production Pressure: 3539 psi Return Speed: 1.1″ / sec Bolster Size: 27.56” x 23.625” x 1.75” Shank Hole: 3.9″ Motor: 5 HP Oil Capacity: 24 Gal. Throat Depth: 25.4″ Idle Speed: 1.26″ per sec. Pressing Speed: .28″ per sec. Table Height: 26.75″ Power: 480V, 3-phase Shipping Weight: 5,800 lbs. Shipping Dimensions: 50″ x 55″ x 110″ Specifications are subject to change without notice. NOTE: Data is provided by the manufacturer. WARRANTY: 1 YEAR – Parts
