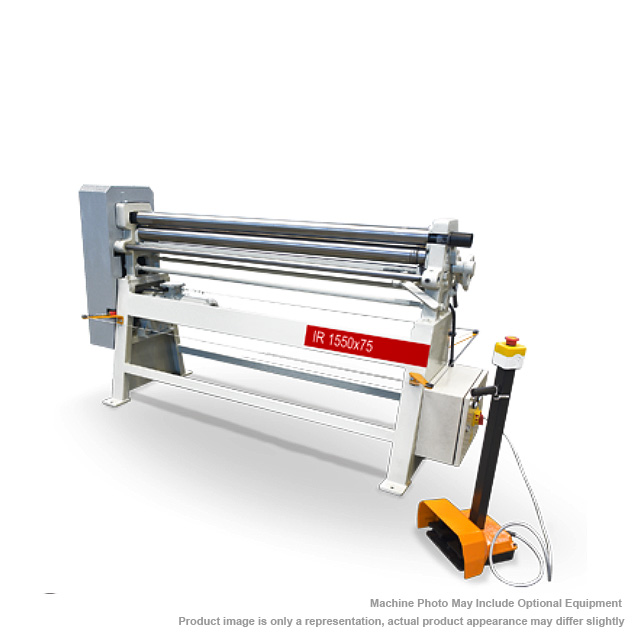

Description Top and Bottom Rolls Powered by a Single Gearbox and Gear System SAE 1050 Quality Certificated Steel Rolls with High Tensile Strength Cast Iron Main Frames Moveable Foot Control Manual Drop-End Wire Grooves on the end of the Rolls (5/32″, 1/4″, 3/8″) Precision Bending with Brake Motor SPECIFICATIONS: MODEL Length Capacity Mild Steel Roll Diameter Motor HP Dimensions Weight Lbs. IR 1050 x 46 41.34″ 3′ x 22 ga. 1.81″ 1 59″ x 28″ x 44″ 462 IR 1050 x 56 41.34″ 3′ x 20 ga. 2.20″ 1 59″ x 28″ x 44″ 528 IR 1050 x 68 41.34″ 3′ x 16 ga. 2.68″ 2 64″ x 28″ x 46″ 748 IR 1050 x 75 41.34″ 3′ x 14 ga. 2.95″ 2 64″ x 28″ x 46″ 847 IR 1270 x 56 50″ 4′ x 22 ga. 2.20″ 1 69″ x 28″ x 44″ 660 IR 1270 x 68 50″ 4′ x 18 ga. 2.68″ 2 72″ x 28″ x 46″ 825 IR 1270 x 75 50″ 4′ x 16 ga. 2.95″ 2 72″ x 28″ x 46″ 880 IR 1550 x 68 61″ 5′ x 20 ga. 2.68″ 2 83″ x 28″ x 46″ 880 IR 1550 x 75 61″ 5′ x 18 ga. 2.95″ 2 83″ x 28″ x 46″ 946 IR 2050 x 75 80.71″ 6′ x 20 ga. 2.95″ 2 103″ x 28″ x 46″ 1298 Specifications are subject to change without notice. NOTE: Data is provided by the manufacturer. WARRANTY: 1 YEAR – Parts
