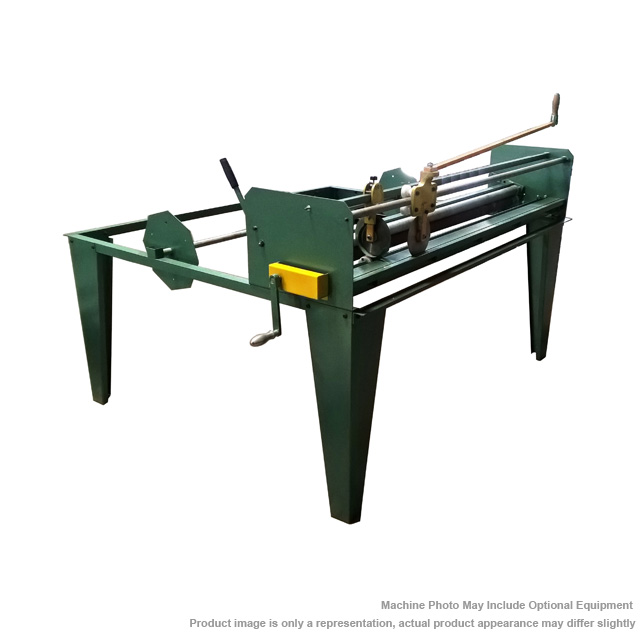

Description The Tin Knocker manual insulation cutter slits fiberglass insulation to length and width. Material is fed into the machine with a crank handle. The desired width is immediately cut with the adjustable slitter blade while the insulation is fed into the blade. The embedded scale makes for fast and accurate cutting Once the material is at the desired length the operator pulls the handle, quickly and efficiently slitting the insulation to length with the crosscut blade. The result is a simple and easy way to make repeatable cuts to fiberglass insulation. Payoff reel, adjustable width Quick cut slitter, length & width Embedded scale for fast slitting to width Exit table not included and this machines ships knocked down. Assembly is easy but please call Sheet Metal Machines at 386-304-3720 if you have any questions. SPECIFICATIONS: Overall width: 58 Width between end frames: 52-1/4″ Max Cutting Width: 48-1/2″ Table Height: 35″ Feed Speed: 60 FPM Overall depth: 26″ Shaft Diameter: 3″ Knife Dimensions:: 5” OD x 1/4” Motor HP: 3/4 HP Electrics: 110/220V – 1ph Ship Dimensions: 67” x 37” x 48” Weight: 525 lbs. Specifications are subject to change without notice. NOTE: Data is provided by the manufacturer. WARRANTY: 1 YEAR – Parts
