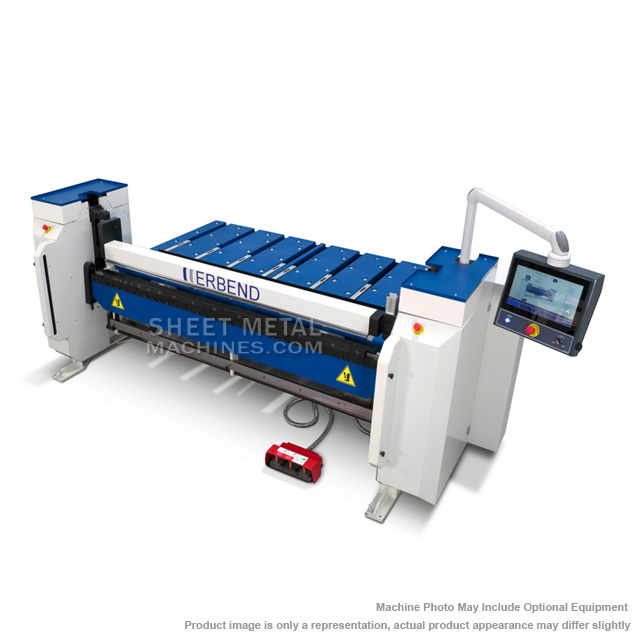

ERBEND MFH 2115 6.8ft x 0.059 in. CNC Motorized Folder

$ 65.49

Category: Side Panels

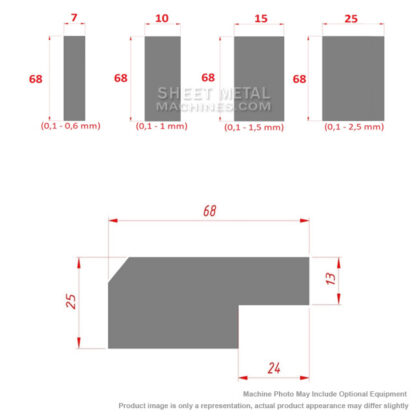

Description SPECIFICALLY DESIGNED FOR HVAC INDUSTRY FOR AIR DUCT AND CHIMNEY PRODUCTION High flat gauging unit to be able to square straight or wavy sheets easily. ERFOLD Basic CNC line by line controller unit with easy to use symbolic interface and menu. Specially produced for the ventilation, heating-cooling (HVAC) sector with the innovative ERBEND technology. Specifically designed for air duct and chimney manufacturers. You can fold minimum 150×150 mm air duct or chimney thanks to its small dimensions. You can easily take out closed/narrow parts from the side thanks to the removable upper beam with pneumatic lock system. STANDART SPECS AND ACCESSORIES: SPECIFICALLY DESIGNED FOR HVAC INDUSTRY FOR AIR DUCT AND CHIMNEY PRODUCTION SPECIAL UPPER BEAM Thanks to its 4.72 inch high x 4.52 inch wide small footprint upper beam, it can fold minimum 150×150 mm air duct / chimney type parts which are totally closed after folding. To be able to remove the part without stretching it, upper beam is released from the right side of the frame by a pneumatic pin and the beam is retracted towards the front side. 39.37 INCH SERVO BACKGAUGE SYSTEM WITH SPECIAL HIGH GAUGING BAR 39.37 inch servo driven backgauge and single piece high, gauging flat bar 39.37 inch long rectangular sheet support table with stainless ball transfers Retractable or removable table slides 3 SWITCH FOOT PEDAL WITH EMERGENCY FUNCTIONS VERTICAL OR HORIZONTAL FRONT LIGHT BARRIERS For operator safety, front light barriers are located at the left and right front side of the machine, managed by safety PLC and prevent unwanted interventions to avoid accidents. You can choose as horizontal or vertical or you can completely remove the light barriers from your configuration. TOOL HOLDER 2 fixed spaces for keeping single piece sharpnose or folding tools ERFOLD BASIC CNC LINE BY LINE CONTROLLER SOFTWARE Very user friendly, iconic screen layout 15.6″ panel touchscreen controller on swivel arm Windows based Erfold software that allows you to store and reload back ups of the factory settings or saves programmes easily 128 gb memory for unlimited receipt storage Line by line part programming by entering numerical values of the axes for each step Creating, saving, loading parts with different names, materials and sheet thicknesses Open or drop hemming function Multi radius bending function as by pressing or by bending Backgauge finger pause and on/off functions Material database control for springback correction and folding beam height correction regarding material type, thickness and length Piece counter for lot production Manual axis controls, alarm and error indications, machine detailed parameter pages Remote service connection via wireless internet User authorization with special passwords. STANDARD TOOLS UPPER BEAM PIECE SHARP NOSE TOOL Grinded,tool steel material, single piece, 20° nose angle SEGMENTED FOLDING BEAM TOOLS AND SEGMENTED LOWER BEAM TOOL MANUAL FOLDING BEAM ADJUSTMENT Manual height adjustment of folding beam according to the sheet thickness or bending point radius Located in left and right side and should be adjusted equally on both sides as thickness x 1 for sharp bending radius or thickness x 1,5 /2,5 for more oval radius. More you lower the folding beam, more you have to increase the bending angle in the programme to be able to catch the right bending angle. SPECIFICATIONS: Max Sheet Length 6.8 ft (82.6 in.) Mild Steel 0.059 in. Stainless 0.031 in. Aluminum 0.078 in. Machine Dimensions (W/L/H) 83 x 130 x 65 in. Weight 5,070 lbs. Upper Beam (Z Axis) Beam opening (with sharpnose tool) 4.72 in. Motor Power (AC) 0,75 kW Power Transmission Eccentric Maximum clamping speed 90 mm/sec Folding Beam (Y Axis) Power Transmission Chain gear Folding angle 0-150° Motor Power (AC) 1,1 kW Max Bending Speed 100°/sec Folding beam height adjustment (A1-A2 axis) Adjustment gap 0/-20 mm Control Manual Backgauge system (X axis) Max Speed 250 mm/sec Motor Power (Servo) 400 W Positioning and Repeatability Accuracy /- 0,1 mm TECHNICAL PARAMETERS OF 11 AXIS Upper Beam (Z axis) Beam opening (with sharpnose tool) 4.75 in. Motor Power (AC) 0,75 kW Power transmission Eccentric Maksimum clamping speed 3.54 in./sec Folding Beam (Y axis) Power transmission Chain gear Folding angle 0 – 150° Motor Power (AC) 1,1 kW Max Bending Speed 100°/sec Folding Beam Height Adjustment (A1-A2 axis) Adjustment gap 0 / -0.78 in. Control Manual Back gauge system (X axis) Max Speed 9.84 in./sec Motor Power (Servo) 400 W Positioning and repeatability accuracy /- 0,1 mm Specifications are subject to change without notice. NOTE: Data is provided by the manufacturer. WARRANTY: 1 YEAR – Parts OPTIONAL ITEMS – CALL FOR PRICE: DIFFERENT NOSE RADIUS SHARPNOSE TOOL Possible nose radius: R1,5 – R2 – R3 – R5 – R10 2.36 INCH HIGH SEGMENTED GOAT FOOT TOOL SET 82.67 INCH LONG NEW ERFOLD BASIC 2D CNC GRAPHICAL CONTROL SOFTWARE Windows based software specifically designed for folders and 0 owned by Erbend 15.6″ capacitive LED touchscreen controller on swivel arm LBL Editor: You can adjust the bending steps line by line by entering the numeric values of axis targets or measures. 2D part editor: you can create a new bending programme by drawing in graphic mode and visualize in 2D graphical screen You can determine and change the bending sequence on the created part while you are making graphical collision control Capability of choosing material type,thickness,springback,bending correction and creating data base for every type of material type, thickness and length Authorization with password 128 GB hard disk space which allows you to save unlimited data Detailed alarm,tooling and parameters page
