Sale!

COCLA Stratum Compass

$ 47.51

Category: Side Panels

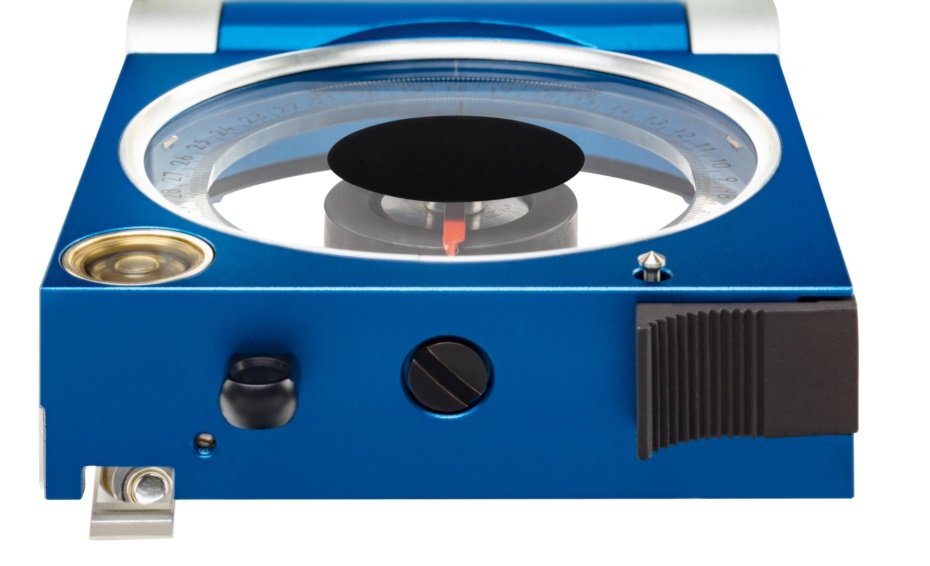

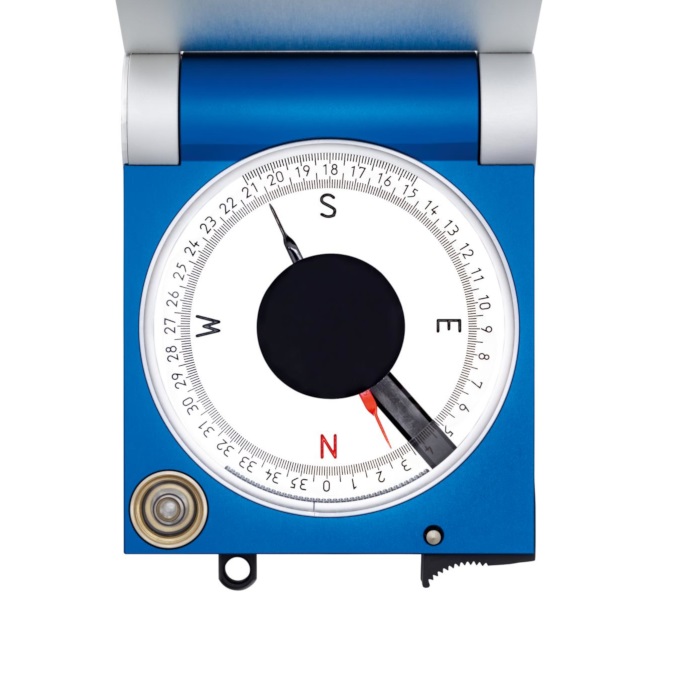

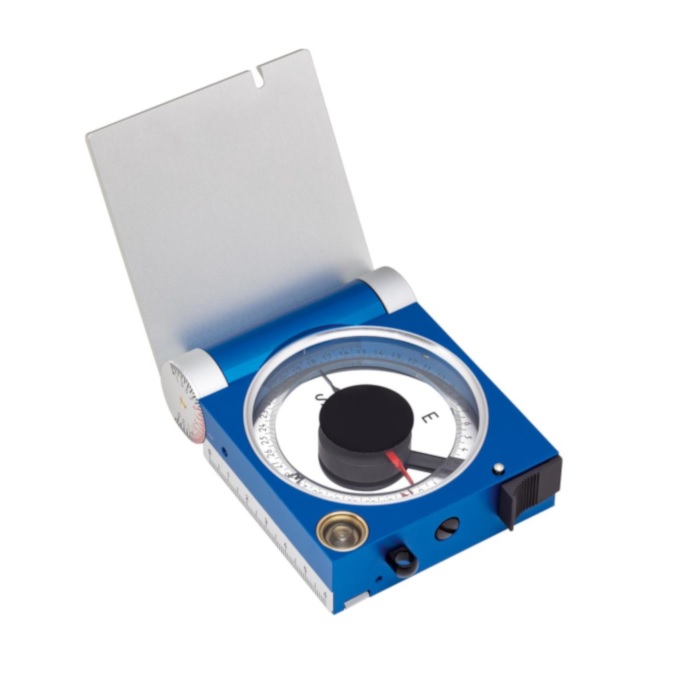

The COCLA by Breithaupt Kassel is a specifically designed stratum mapping compass made in Germany., ideal for field, surveying, and mapping to obtain geophysical, mining, and tectonic measurements using the Dr. Clar method. The azimuth face allows for accurate readings up to 1°, accuracy is further gained by the use of the inbuilt bubble level to ensure a flat reading is taken. The base of the dial is transparent, allowing for the viewing of a map underneath or for viewing the directional readings from both above and below. The mechanisms are contained within a one-piece robust alloy housing. Specifications: Needle dampening: 3 seconds Transparent Azimuth Intervals of graduation 1° Hinge inclinometer: 270° (5° graduations) Declination: ± 30° Adjustable (without opening the housing
