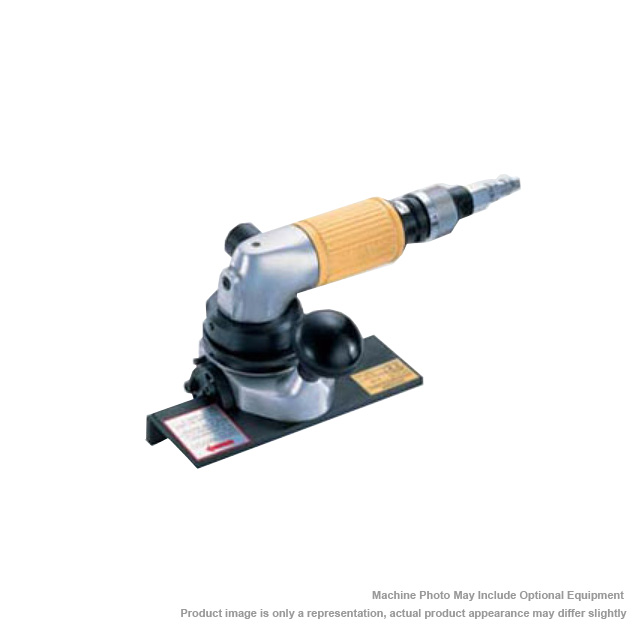

NITTO KOHKI AMB-0307 5/16 in. Pneumatic Mini Beveler

Description Handy Pneumatic Chamfering Tool Lightweight design for portable edge beveling application Ideal for beveling plate, outer pipe, tube and other profiles Designed to bevel stainless steel and carbon steel Adjustable to bevel angle from 15° to 45° Uses an indexable carbide insert Bevel depth up to 9/32″ at 45° Outer edge pipe beveling > 12″ (300mm) minimum diameter ACCESSORIES INCLUDED: Threaded Adapter PT3/8” x NPT 3/8” 3 mm Allen Wrench 4 mm Allen Wrench Straight Cutting Tip (2) Hex. Nut M8 (2) Hex. Socket Set Screw 8 mm x 25 mm Torx 15 (T-15) Spanner Wrench SPECIFICATIONS: Air Pressure: 85 PSI Air Consumption: 31.8 CFM Chamfering Capacity (Mild Steel): Up to 5/16” (7 mm) Chamfer or 1/16” (2 mm), 1/8” (3 mm), 5/32” (4 mm) Radius Chamfering Capacity (Stainless Steel): Up to 1/8” (3 mm) Chamfer or 1/16” (2 mm), 1/8” (3 mm), 5/32” (4 mm) Radius Chamfer Angle: 15 – 45 Degrees Weight: 6.4 lbs. (2.9 kg) BEVEL ANGLE, WIDTH AND RADIUS: Angle AMB-0907 Stainless Steel (mm) Mild Steel (mm) A B C A B C 45° 3 3 4.2 7 7 9.9 30° 2.2 3.8 4.4 4 7 8.1 15° 1 3.8 3.9 2.2 8 8.3 Specifications are subject to change without notice. NOTE: Data is provided by the manufacturer. WARRANTY: 1 YEAR – Limited OPTIONAL ITEMS: TV7A019: Straight Tip (2 pcs./set) TV7A020: 1/16” (2 mm) Radius Tip (2 pcs./set) TV7A021: 1/8” (3 mm ) Radius Tip (2 pcs./set) TV7A022: 5/32” (4 mm) Radius Tip (2 pcs./set)
