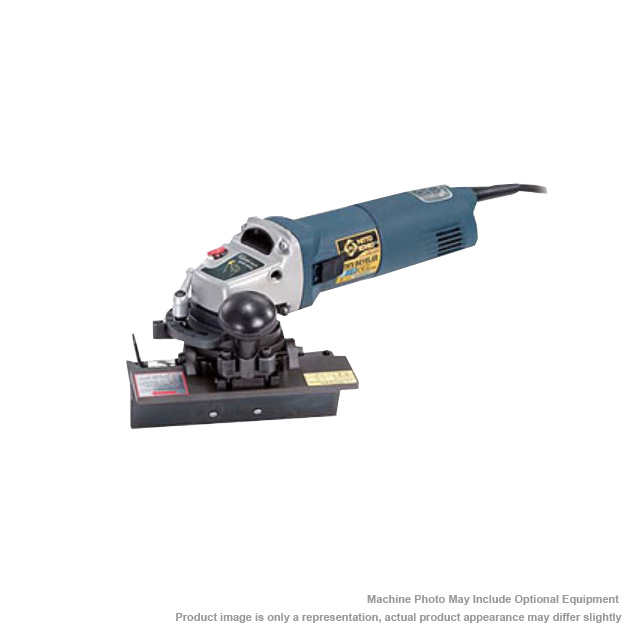

NITTO KOHKI EMB-0307B 5/16 in. Electric Mini Beveler

Description Handy Electric Chamfering Tool Lightweight design for portable edge beveling application Ideal for beveling plate, outer pipe, tube and other profiles Designed to bevel stainless steel and carbon steel Adjustable to bevel angle from 15° to 45° Uses an indexable carbide insert Bevel depth up to 9/32″ at 45° Outer edge pipe beveling > 12″ (300mm) minimum diameter Built-in chip collection box Operates on single phase 230V Powerful 1-1/2 horsepower double insulated motor Quick release base allows easy access to cutting tip ACCESSORIES INCLUDED: 4 mm Allen Wrench Straight Cutting Tip (2) Hex. Nut M8 (2) Hex. Socket Set Screws 8 mm x 25 mm (3) Pan Head Screws 5 mm x 10 mm Torx 15 (T-15) Spanner Wrench Chip Collector Box Assembly Spare Carbon Brush Assembly (1 Set) SPECIFICATIONS: Power Supply: 220V – 240V A/C, 50/60 Hz Rated Power Consumption: 1010 W Rated Current: 4.6 A Rated Duty Cycle: Continuous Chamfering Capacity (Mild Steel): Up to 5/16” (7 mm) Chamfer or 1/16” (2mm), 1/8” (3 mm), 5/32” (4 mm) Radius Chamfering Capacity (Stainless Steel): Up to 1/8” (3 mm) Chamfer or 1/16” (2 mm), 1/8” (3 mm), 5/32” (4 mm) Radius Chamfer Angle: 15 – 45 Degrees Power Cord Length: 13.1 Feet (4 Meters) Weight: 8.6 lbs. BEVEL ANGLE, WIDTH AND RADIUS: Angle EMB-0907B Stainless Steel (mm) Mild Steel (mm) A B C A B C 45° 3 3 4.2 7 7 9.9 30° 2.2 3.8 4.4 3.8 6.6 7.6 15° 1 3.8 3.9 1.5 5.6 5.8 Specifications are subject to change without notice. NOTE: Data is provided by the manufacturer. WARRANTY: 1 YEAR – Limited OPTIONAL ITEMS: CALL FOR PRICE TV7A019: Straight Tip (2 pcs./set) TV7A020: 1/16” (2 mm) Radius Tip (2 pcs./set) TV7A021: 1/8” (3 mm ) Radius Tip (2 pcs./set) TV7A022: 5/32” (4 mm) Radius Tip (2 pcs./set)
