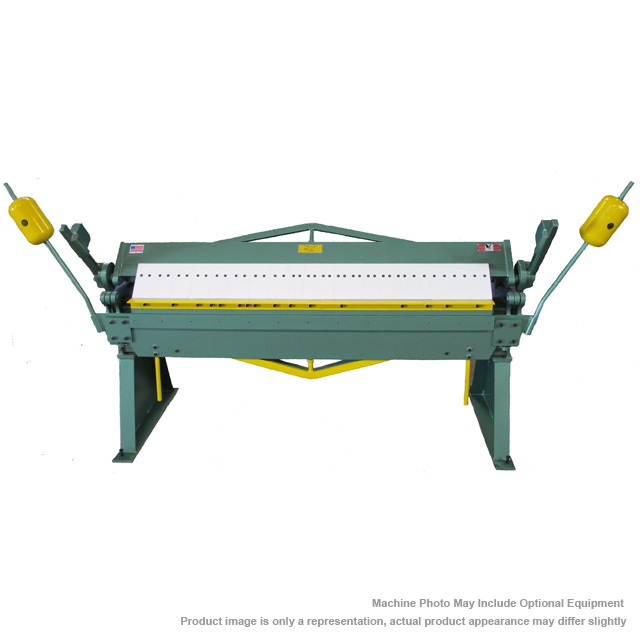

TIN KNOCKER TK616 6 ft x 16 ga. Universal Hand Brake

Description An incredibly universal hand brake. Featuring box & pan fingers up top and segmented, relocatable bend apron tooling below. Perfect for complex parts to include flange down bends, transverse duct forming & much more. Strategically positioned counter weights, this brake makes for easy and smooth manual bending. SPECIFICATIONS: Capacity with lower tooling flanges: 72″ x 16 Ga (1.6mm) Capacity without lower tooling flanges: 72″ x 20 Ga (1.0mm) Lift of beam: 1.5″ (38.1mm) Front to back ram adjustment: 1/2″ (13mm) Minimum reverse bend: 5/8″ (16mm) Min flange width: 1″ (25mm) Finger widths: 1″, 3″, and 4″ (50.8, 76.2, and 101.6mm) Lower segment tooling widths: 1″, 1.5″, 4″, 6″, 8″, 12″, and 20″ (25, 38, 102, 203, 305, 508mm) Bending beam tooling (segmented) lengths: 1″, 1.5″, 4″, 6″, 8″, 12″, and 20″ (25, 38, 102, 203, 305, 508mm) Maximum transverse bend in center of machine: 2″ (50.8mm) Maximum transverse bend at end of machine: 3″ (76.2) Footprint with counter weights: 95″ x 38″ x 54″ (2413 x 965 x 1346 x 1372mm) Shipping weight: 2,800 lbs (1273kg) Specifications are subject to change without notice. NOTE: Data is provided by the manufacturer. WARRANTY: 1 YEAR – Parts
