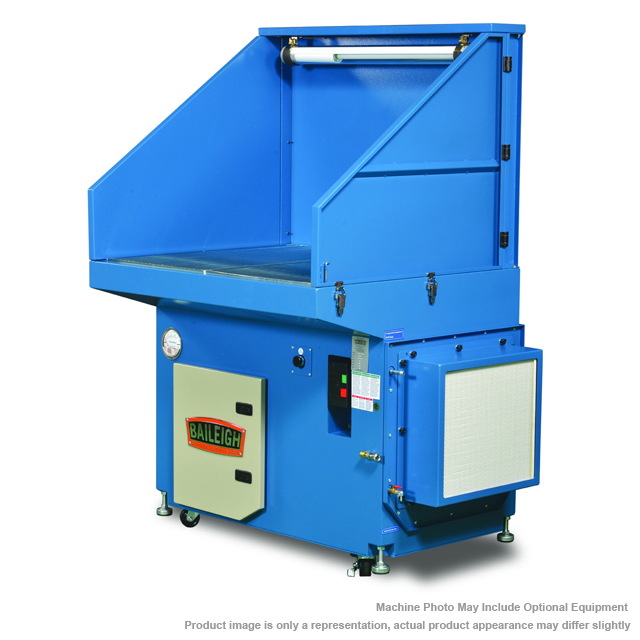

BAILEIGH DDTM-4840-HD 1,350cfm 4×3 ft Heavy Duty Downdraft Table

Description Downdraft tables are becoming more popular with all of the air quality regulations that are now in place. The Heavy Duty Downdraft Table DDTM-4840-HD is the perfect table for small shop that has a need for a production table. This easy to use down draft table takes all the little partials that float around the shop and pull them straight down into a contained unit and also help to clean the air. The DDTM-4840-HD has a list of features that make it one of the best tables on the market. 48″ x 40″ Working area Standard equipment included: HEPA filter, fire resistant cartridge filter, spark arresting metallic pre-filter, magnehelic gauge, hinged side walls w/ back wall, work light, auxiliary 110V and air tool outlets, 12” overhang, casters and leveling feet. These are all options other companies charge for, but come standard with Baileigh CSA us listed 100% Tool free cleaning and filter maintenance/changes Air pulse cleaning – When flow is restricted, simply shut the machine off, and press the air pulse button (requires 60-90psi air connection). An internal air tank automatically backflushes the cartridge filter, knocking off accumulated dust and debris (he debris falls into a removable pan for easy cleanout). The table can now be turned on and work resumed Safety – Under OSHA decibel limit (hearing protection not required). HEPA filter is now required by OSHA for equipment that vents back into occupied space (HEPA is standard on these models) Fully Assembled – Simply uncrate, wire, and begin use Table Load Capacity: Maximum 1,543 lbs (700kgs) Evenly distributed over 80% – 100% of table surface. Concentrated Contact Surface Contact Weight 10% 192 lbs (87kgs) 20% 384 lbs (174kgs) 30% 575 lbs (261kgs) 40% 767 lbs (348kgs) 50% 959 lbs (435kgs) 60% 1,151 lbs (522kgs) 70% 1,343 lbs (609kgs) 80% 1,543 lbs (700kgs) SPECIFICATIONS: Working Table Size: 48″ x 40″ CFM: 1350 Motor: 2 HP Filter Type: Three Stage (Aluminum, Teflon Cartridge x 2, HEPA) Number of Filters: 4 Filter Size: Aluminum – 11.3″ x 23.8″ x 0.86″, Cartridge x 2 – Ø11.25″ x 13″L, HEPA – 18″ x 20″ x 5.9″ Power: 220V 3-Phase / 60 Hertz Shipping Dimensions (L/W/H): 62″ x 45″ x 81″ Shipping Weight: 950 lbs Specifications are subject to change without notice. NOTE: Data is provided by the manufacturer. WARRANTY: 1 YEAR – Parts
