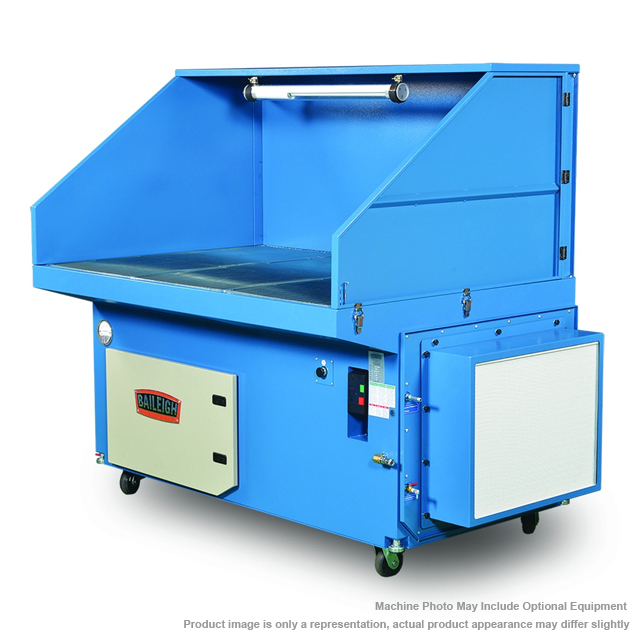

BAILEIGH DDTM-8052-HD 2,340cfm 6.5×4 ft Heavy Duty Downdraft Table

Description Downdraft tables are becoming more popular with all of the air quality regulations that are now in place. The Heavy Duty Downdraft Table DDTM-8052-HD is the perfect table for large manufacturing facility has a need for a clean production. This easy to use down draft table takes all the little partials that float around the shop and pull them straight down into a contained unit and also help to clean the air. The DDTM-8052-HD has a list of features that make it one of the best tables on the market. 78″ x 52″ Working area Standard equipment included: HEPA filter, fire resistant cartridge filter, spark arresting metallic pre-filter, magnehelic gauge, hinged side walls w/ back wall, work light, auxiliary 110V and air tool outlets, 12” overhang, casters and leveling feet. These are all options other companies charge for, but come standard with Baileigh CSA us listed 100% Tool free cleaning and filter maintenance/changes Air pulse cleaning – When flow is restricted, simply shut the machine off, and press the air pulse button (requires 60-90psi air connection). An internal air tank automatically backflushes the cartridge filter, knocking off accumulated dust and debris (he debris falls into a removable pan for easy cleanout). The table can now be turned on and work resumed Safety – Under OSHA decibel limit (hearing protection not required). HEPA filter is now required by OSHA for equipment that vents back into occupied space (HEPA is standard on these models) Fully Assembled – Simply uncrate, wire, and begin use Table Load Capacity: Maximum 1764lbs (800kgs) Evenly distributed over 80% – 100% of table surface. Concentrated Contact Surface Contact Weight 10% 221 lbs (100gs) 20% 441 lbs (200kgs) 30% 661 lbs (300kgs) 40% 882 lbs (400kgs) 50% 1,102 lbs (500kgs) 60% 1,323 lbs (600kgs) 70% 1,543 lbs (700kgs) 80% 1,764 lbs (800kgs) SPECIFICATIONS: Working Table Size: 78″ x 52″ CFM: 2340 at base Motor: 5 HP Filter Type: Three Stage (Aluminum x 2, Teflon Cartridge x 6, HEPA) Number of Filters: 9 Filter Size: Aluminum x 2 – 11.3″ x 23.8″ x 0.86″, Cartridge x 6 – Ø11.25″ x 13″L, HEPA – 18″ x 20″ x 5.9″ Power: 230V 3ph Shipping Dimensions (L/W/H): 92″ x 58″ x 80″ Shipping Weight: 1,650 lbs Specifications are subject to change without notice. NOTE: Data is provided by the manufacturer. WARRANTY: 1 YEAR – Parts
