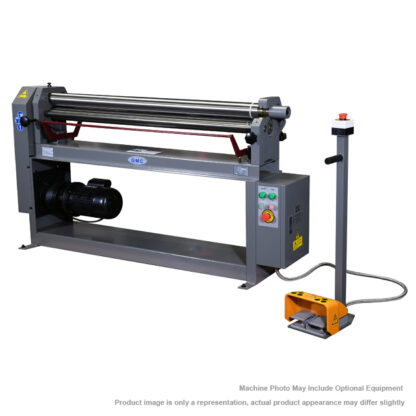

GMC PSR-5016N-3PH 50 in. x 16 ga. Powered Slip Roll Machine | 3-phase

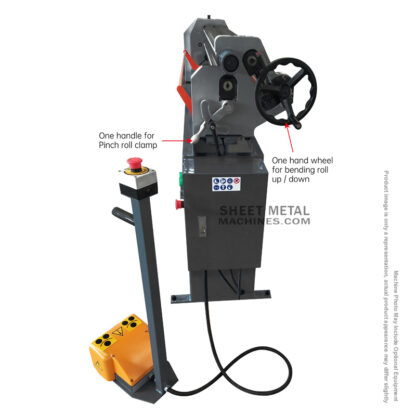

Description ISO 9001 certified One handle for pinch roll clamping One handwheel for bending roll up/down Cone attachment to make various size cone parts Heavy welded all steel construction for maximum rigidity Silence electrical motor Quick release top roller Two rolls are driven Precision ground rollers 1″ roll opening All three rolls are made of high grade alloy steel, hardened All rolls run forward and reverse Safety type removable foot pedal Overload protection and disconnect switch One year warranty for parts STANDARD EQUIPMENT: Cone attachment Electrical cabinet Removable safety foot pedal SPECIFICATIONS: Rolling Capacity: Mild steel 50 in. x 16 Ga. Rolling Capacity: Stainless Steel 50 in. x 22 Ga. Rolling Capacity: Soft aluminum 50 in. x 11 Ga. Min. thickness capacity 50 in. x 26 Ga. Rolls size, length x diameter 50 x 3 in. Min. roll bending diameter capacity 3-1/2 in. Roll Speed 201 in. / min Rolls opening 1/4 in. (3) Grooves size 5/16 in., 3/8 in., 1/2 in. Main Motor 1 HP, 220V/440V, 3PH Machine Dimensions 68 x 28 x 47 in. Machine Weight 837 lbs Specifications are subject to change without notice. NOTE: Data is provided by the manufacturer. WARRANTY: 1 YEAR – Parts
