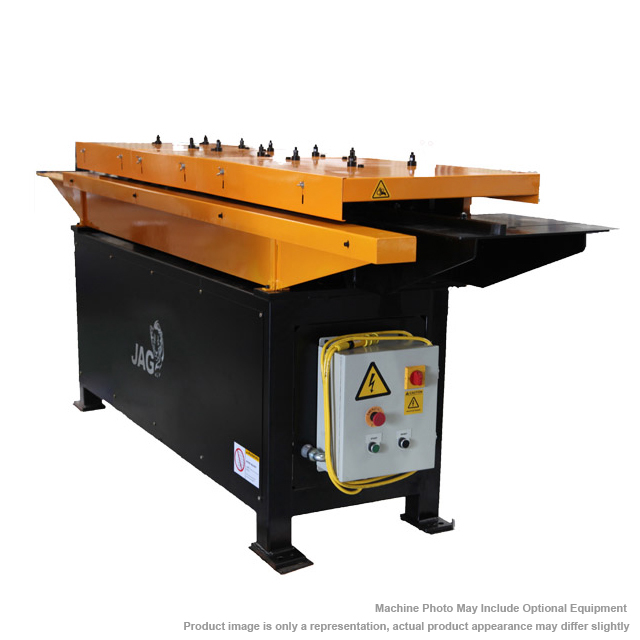

Description Roll your own flanges and pocket the savings. The TDC Rollformer has 12 forming stations and produces TDC flanges at speeds of up to 60 feet per minute (18.3m/min)! JAG quality construction with an industrial motor and gearbox; high precision bearings; heavy-duty three zone chassis; plate head construction; hardened and ground roll shafts all protected with JAG’s top-quality primer and paint finish. Optional rolls are available for TDC clip production (22 gauge). SPECIFICATIONS: Capacity: 18 – 24 gauge (0.70 – 1.31 mm) Depth of Pocket: 1-7/8” (47.6 mm) / 2-1/8” (54.0 mm) for Clip Speed: 50 fpm (15.2 m/min) Motor: 10 HP (7 kw) – 230 volts, 60 cycle, 3 phase, AC, 1800 RPM Dimensions: 117”L x 33W” x 46”H (2950 x 830 x 1150 mm) Weight: 2,090 lbs. (950 kg) OPTIONAL ITEMS: Optional TDC Clip Roll Set: $CALL Specifications are subject to change without notice. NOTE: Data is provided by the manufacturer. WARRANTY: 1 YEAR – Parts
