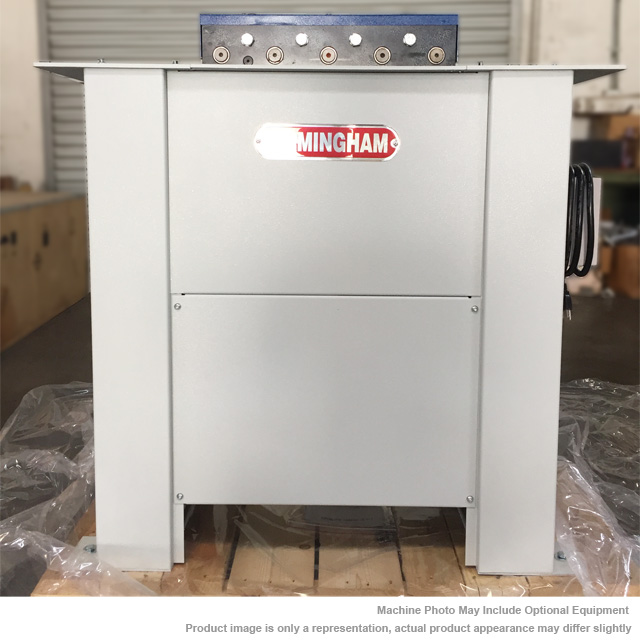

Description All steel forming head Hardened and ground shafts Case hardening steel forming rolls Machine cut gear and needle type roller bearing throughout MADE IN TAIWAN SPECIFICATIONS: Capacity: 20 to 26 Ga. Use approximately 1″ of material Depth of pocket: 5/16″ width of hammer-over edge adjustable up to 3/8″ Speed: 25 feed per minute Motor: 1 HP 110V, single phase Drive: V-belt Stand: ARC welded steel. Heavy top plate Dimensions: 36″ x 16.5″ x 36.5″ Net weight: Approximately 320 lbs. OPTIONAL ITEMS: DSR-20: 20 Ga Double Seam Roll Set FA-20: Flange attachment RAR-20: Right Angle Roll Set DCR-20: Drive Cleat Roll Set Specifications are subject to change without notice. NOTE: Data is provided by the manufacturer. WARRANTY: 1 YEAR – Parts
