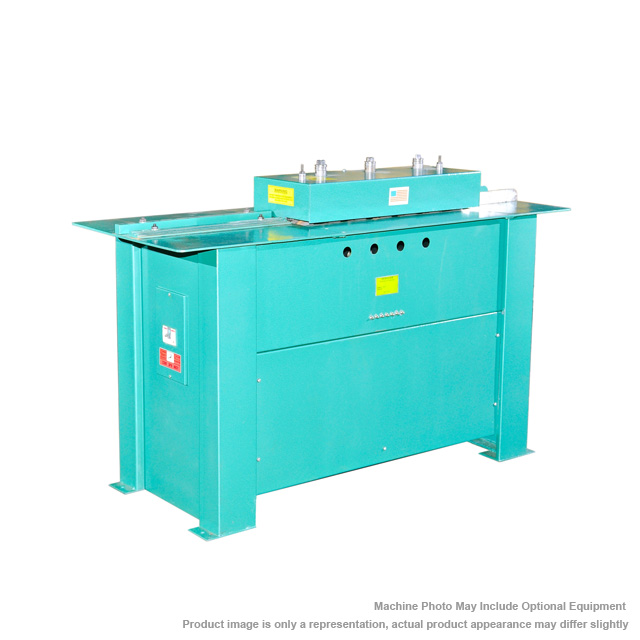

Description IT COMES LOADED! The 16 gauge Pittsburgh Lock machine has 7 forming stations with 2 forming positions. One position forms the Pittsburgh Lock, while the outboard position has the ability of forming a number of other profiles, to include: Acme, Drive Cleat or 4 in 1 rolls (3/16” Right Angle Flange, 7/16” Right Angle Flange, Standing Seam and T-Connection). You don’t pay extra for the choice of opposing rolls, either. You get your choice of rolls opposite the Pittsburgh rolls. SPECIFICATIONS: Capacity: 16-20 Ga. uses approx. 1-3/8” of material Motor: 3HP, 230/3/60, 1PH Optional (PLEASE SPECIFY) Speed: 40-45 ft per minute Depth of Pocket/Size: 1/2” width of hammer-over edge adjustable up to 3/8 ROLL CHART: ROLLS CAPACITY APPROXIMATE MATERIAL USED SIZE Acme (“Double Seam”) Rolls (Type “L”) 16-22 gauge 1-1/4″ 7/16″ seam Drive Cleat Rolls 20-26 Gauge 2-1/8″ 1-1/8″ width Combination 4-in-1 Rolls and 4-Step Gauge Straight Right-Angled Flange Rolls 16-24 Gauge up to 7/16″ up to 7/16″ high Right-Angled Flange 22-26 Gauge 1/2″ 1/2″ height Standing Seam 22-26 Gauge 1-1/8″ 5/8″ seam T-Connection 22-26 Gauge 1-3/4″ 5/8″ seam Specifications are subject to change without notice. NOTE: Data is provided by the manufacturer. WARRANTY: 1 YEAR – Parts
