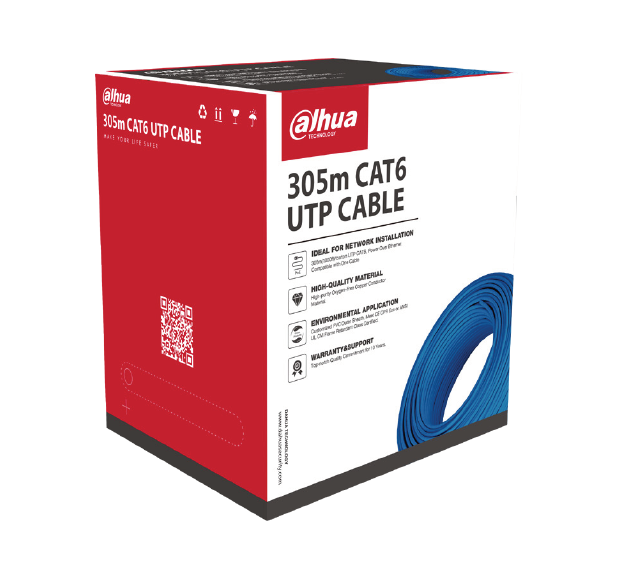

DaHua – UTP CAT6 Ethernet Cable Solid UTP 4 Pair Blue 305m Reel Box – DH-PFM920I-6UN-C

DaHua – UTP CAT6 UTP Cable DH-PFM920I-6UN-CTechnical SpecificationConductorMaterialOxygen free copper (99.97% purity)Diameter0.53 mm ± 0.01 mmInsulationMaterialHDPEMin. Average Thickness0.21 mmDiameter0.95mm±0.1mmColor (4 Pairs)Blue, white/blue; orange, white/orange; green, white/green; brown, white/brownSeparatorMaterialPESpecificationTranslucent 4.5 × 0.4 mmRip CordMaterialPolyesterSpecification500DSheathMaterialPVCMin. Average Thickness0.5 mmDiameter6.0mm±0.3mmColorWhiteMax. DC Resistance of a Single Conductor8.7Ω/100 mMin. Insulation Resistance5000MΩ·kmMax. DC Resistance Unbalance2% (pair intra), 4% (pairs inter)Dielectric StrengthNo breakdown with 1KV DC for 1 minTransmissionCharacteristic Impedance100 ± 15ΩNear End Cross Talk≥39.30 dB/100 m@250 MHzMax. Attenuation34.8 dB/100 m@250 MHzReturn Loss≥17.3 dB/100 m@250 MHzMechanicalTensile StrengthSheath≥13.5 MPa, insulation≥16 MPaElongation at BreakSheath≥150%, insulation≥300%Installation Bending Radius>8 times of outer cable diameterConductor Elongation at Break≥10%EnvironmentalShrinkage of Insulation≤5%Color Migration Resistance of InsulationNo migrationSheath Tensile Strength and Elongation at Break after Aging≥12.5 MPa, ≥100% DH-PFM920I-6UN-C Datasheet
